8040SRC21.11A005

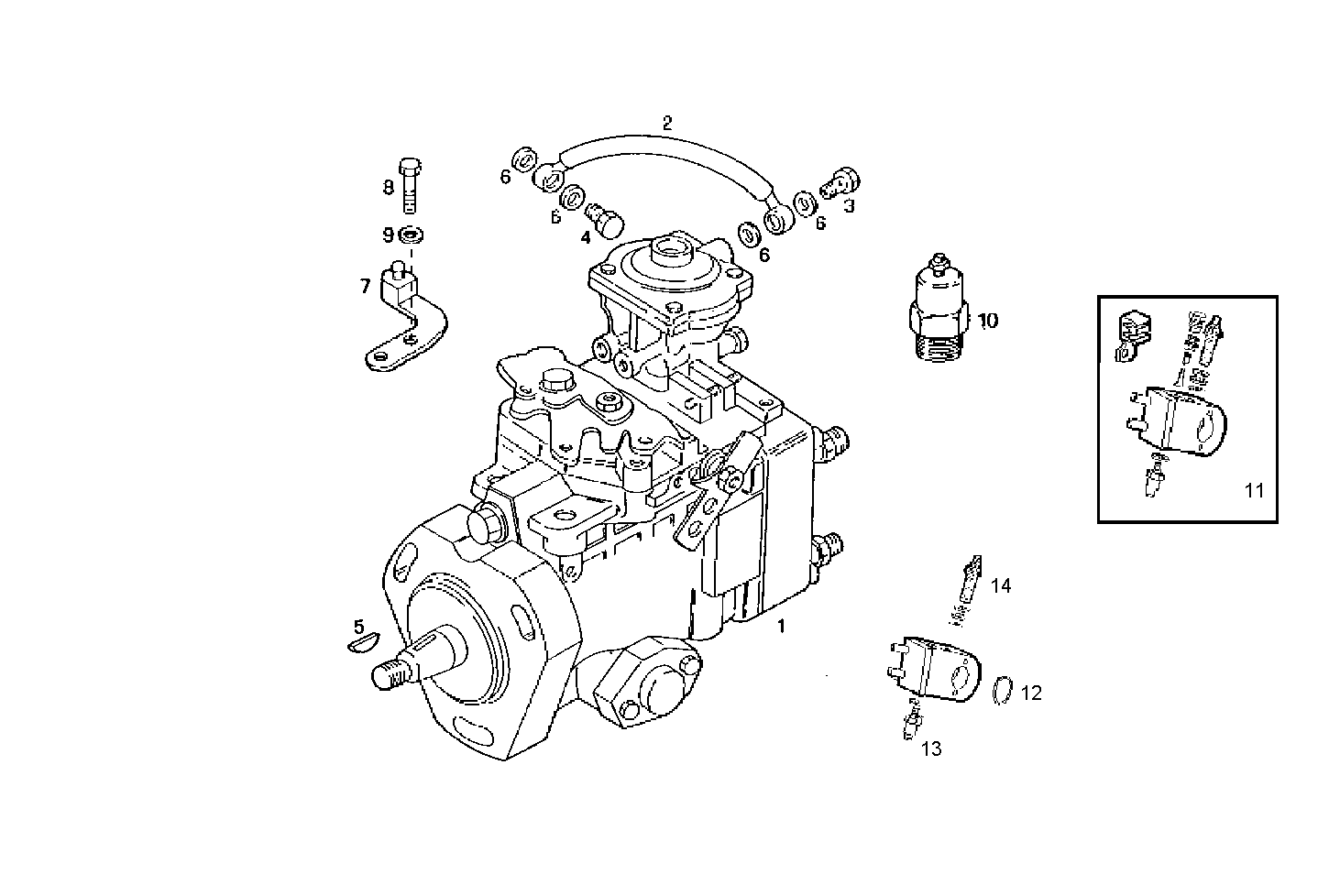

1400.178 INJECTION PUMP ASSY
Item | Part number | Description |
---|---|---|
1 | 98488688 | DISTRIB.INJ.PUMP ASSY |
2 | 4848476 | FUEL LINE |
3 | 4753761 | SCREW CONNECTOR |
4 | 4833907 | SCREW CONNECTOR |
5 | 10205820 | KEY 4X6,5 MM |
6 | 10262760 | SEAL GASKET Ø8,2 MM |
7 | 98445678 | LEVER |
8 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
9 | 17088474 | WASHER Ø6X12 MM |
10 | 8100105 | ELECTROVALVE 24V |
11 | 93194306 | INJECTOR ASSY |
12 | 93194302 | O-RING |
13 | 93194310 | TRANSMITTER |
14 | 93194311 | VALVE |
