8040SRC21.11A005

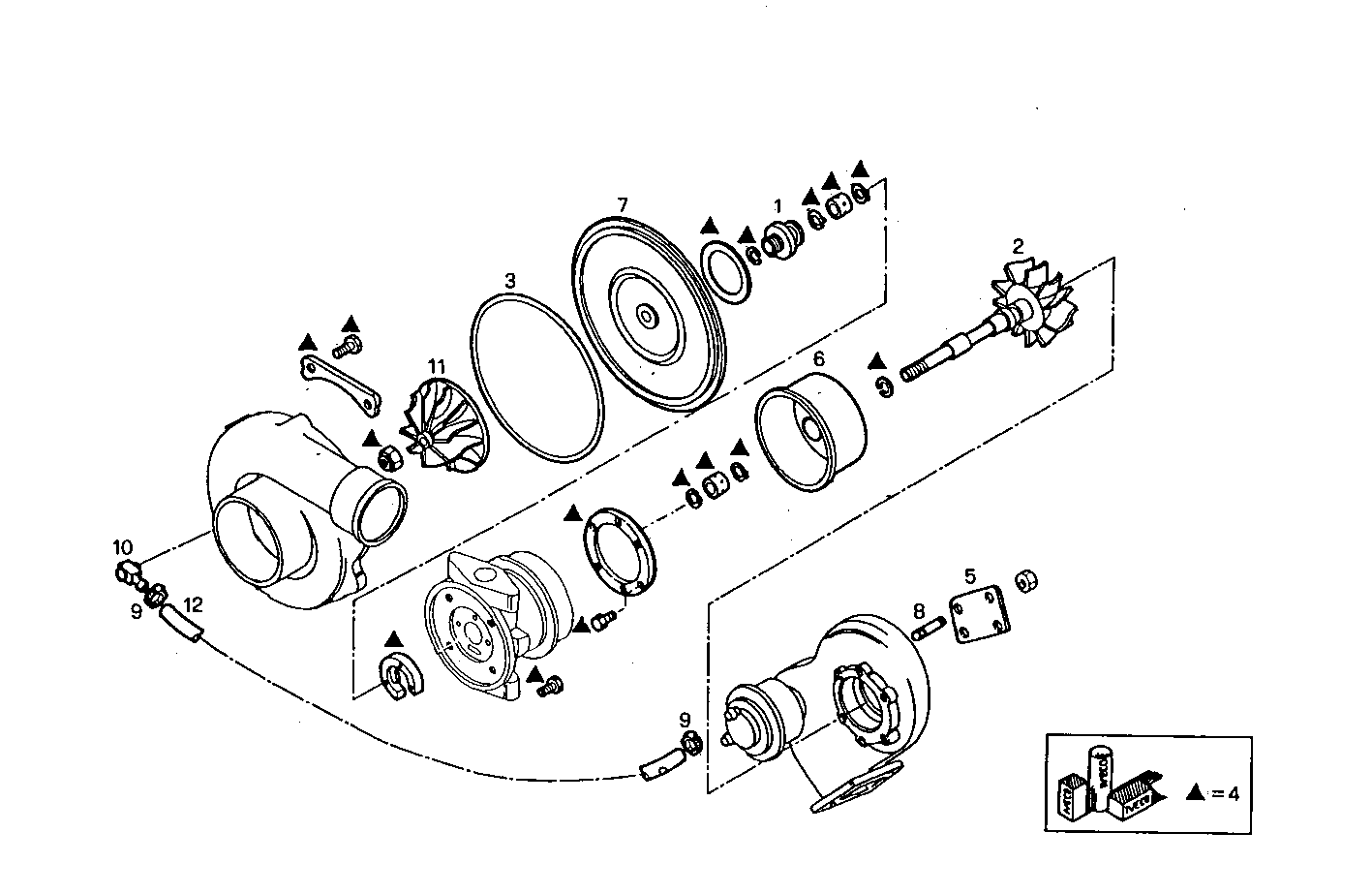

2430.009 TURBOCHARGER - components
Item | Part number | Description |
---|---|---|
1 | 93158159 | THREADED UNION |
2 | 93158158 | TURBINE WHEEL |
3 | 93158157 | WASHER |
4 | 8124722 | KIT-TURBOCHARGER |
5 | 8198409 | GASKET |
6 | 8198412 | COVER |
7 | 8198413 | PLATE |
8 | 8198414 | STUD |
9 | 8198578 | CLIP |
10 | 8198580 | HOSE NIPPLE |
11 | 8198581 | TURBINE WHEEL M10X30 MM |
12 | 93160136 | OIL HOSE |
