8040SRC21.11A005

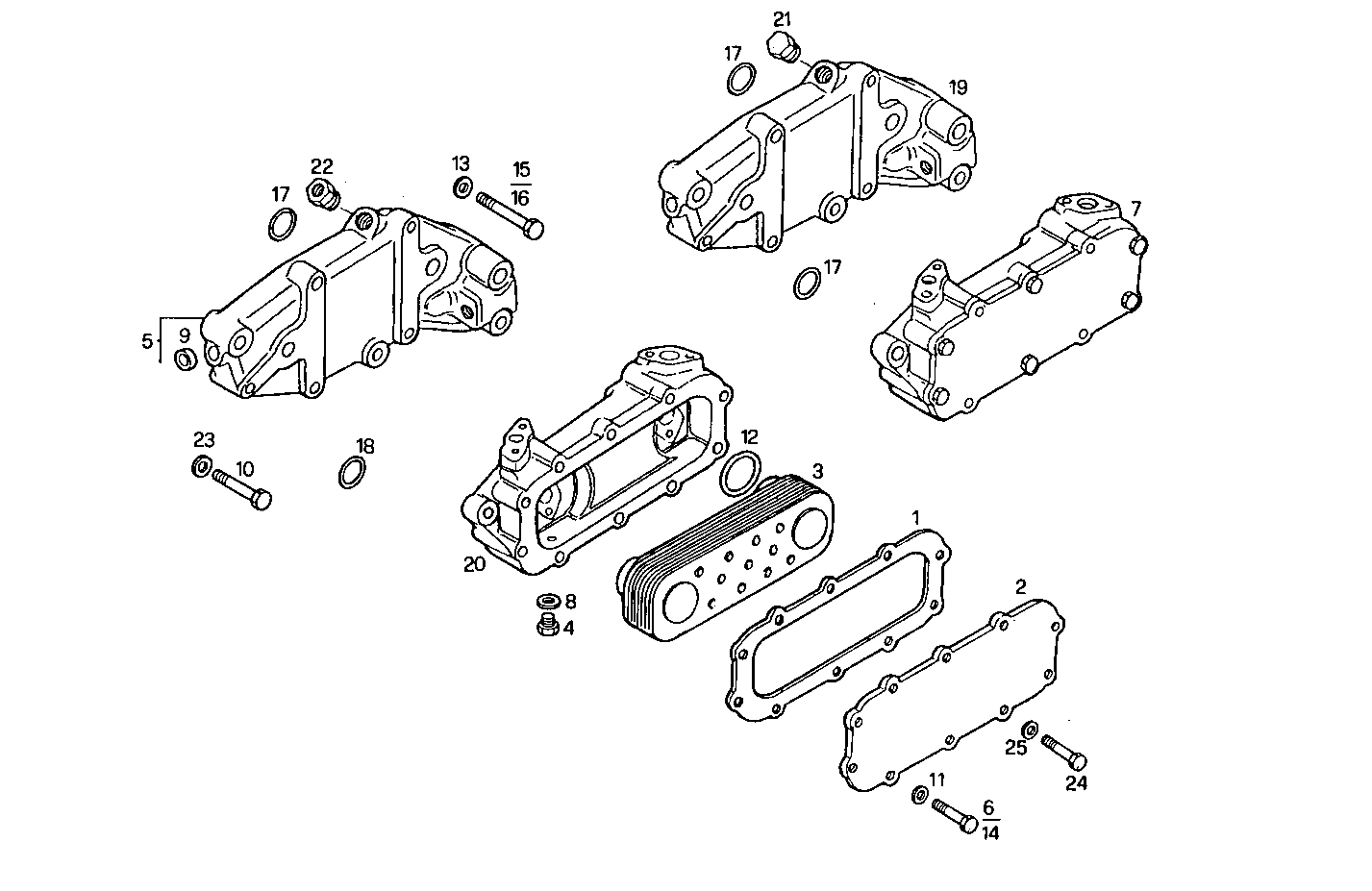

3100.038 OIL - WATER HEAT EXCHANGER

Iveco/FPT OIL - WATER HEAT EXCHANGER

Item Part number Description
1 4848521 FLAT ENGINE GASKET
2 4759805 HEAT EXCHANG.COVER
3 99437158 OIL COOLER
4 98435232 PLUG
5 4853975 SUPPORT ASSY [up to 672796]
6 16605424 SCREW M8X16 MM (8.8)
7 4848550 HEAT EXCHANGER ASSY
8 10260060 SEAL GASKET Ø8X12X1 MM
9 16988101 LOCK PLUG Ø16 MM
10 15888721 HEXAGON BOLT M10X1,25X55 MM
11 17094914 WASHER 8x16
12 17282781 O-RING Ø31,42 MM SP=2,62 MM
13 17095304 WASHER Ø12X24 MM
14 16605624 HEXAGON BOLT M8X25 MM (8.8)
15 16610524 HEXAGON BOLT M12X60 MM
16 16610924 HEXAGON BOLT M12X90 MM
17 14457481 O-RING Ø18,72 MM SP=2,62 MM
18 14457581 O-RING Ø20,29 MM SP=2,62 MM
19 98481924 SUPPORT [from 672797]
20 4759622 HEAT EXANGER BODY
21 16997511 THREADED PLUG M18X1,5 [up to 672796]
22 4820056 THREADED UNION
23 11198371 SPRING WASHER Ø10X20 MM
24 16044924 SCREW M8X1,25X85 MM
25 10519601 WASHER Ø8X17 MM
