8040SRC21.11A005

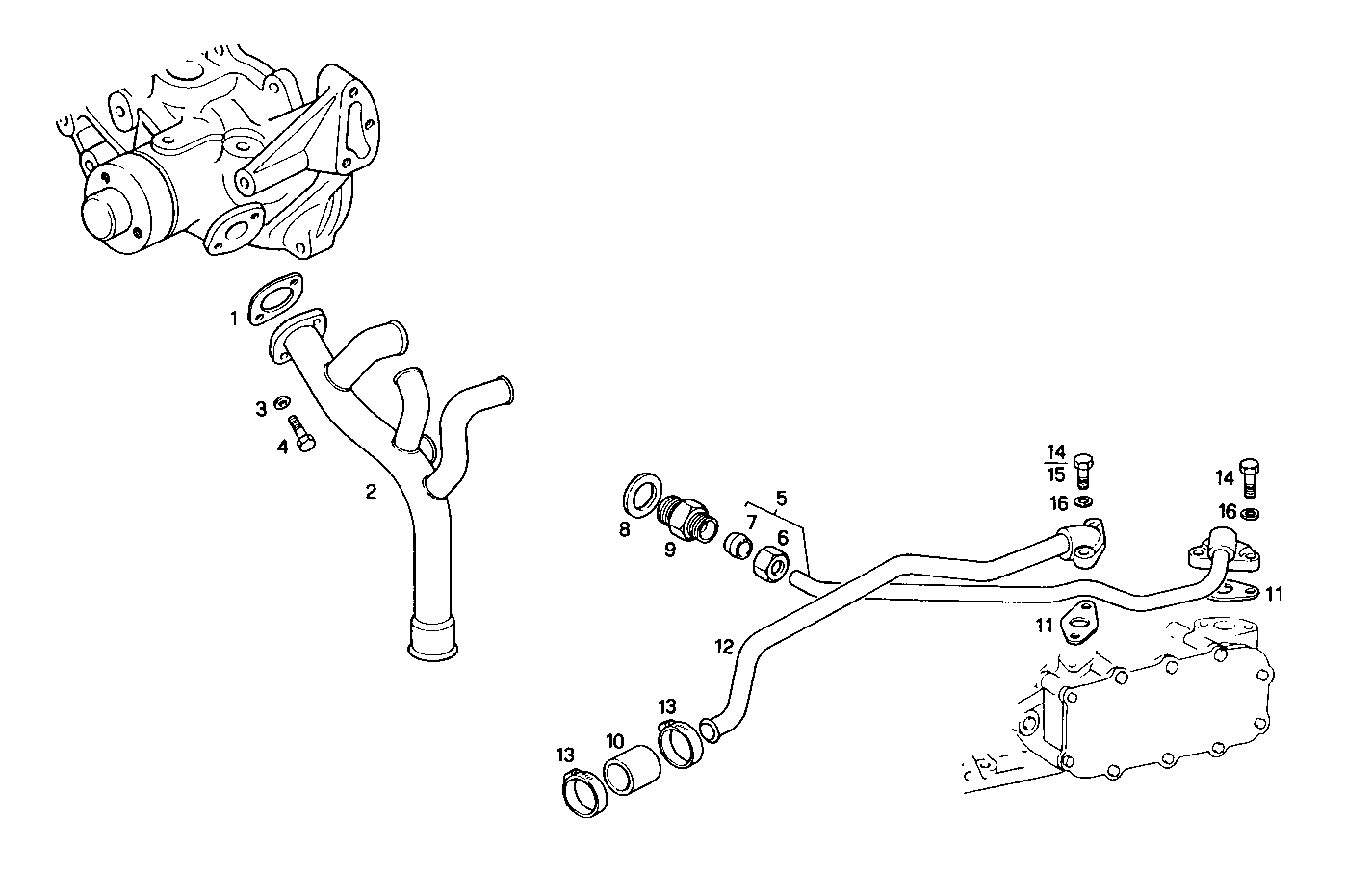

3210.081 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4852556 FLAT ENGINE GASKET
2 98432272 WATER PIPE
3 17094914 WASHER 8x16
4 98401723 HEXAGON BOLT M8X1,25X12 MM
5 98418651 WATER PIPE ASSY
6 16507111 NUT M26
7 16507811 GASKET
8 16570660 SEAL GASKET Ø22 MM
9 16500514 THREADED UNION M22X1,5 - M26X1,5
10 98418717 WATER HOSE Ø18 MM
11 4853970 FLAT ENGINE GASKET
12 98418659 WATER PIPE
13 17764592 CLIP Ø20/32 MM
14 16605824 HEXAGON BOLT M8X35 MM
15 16605524 HEXAGON BOLT M8X20 MM
16 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
