8040SRC21.11A005

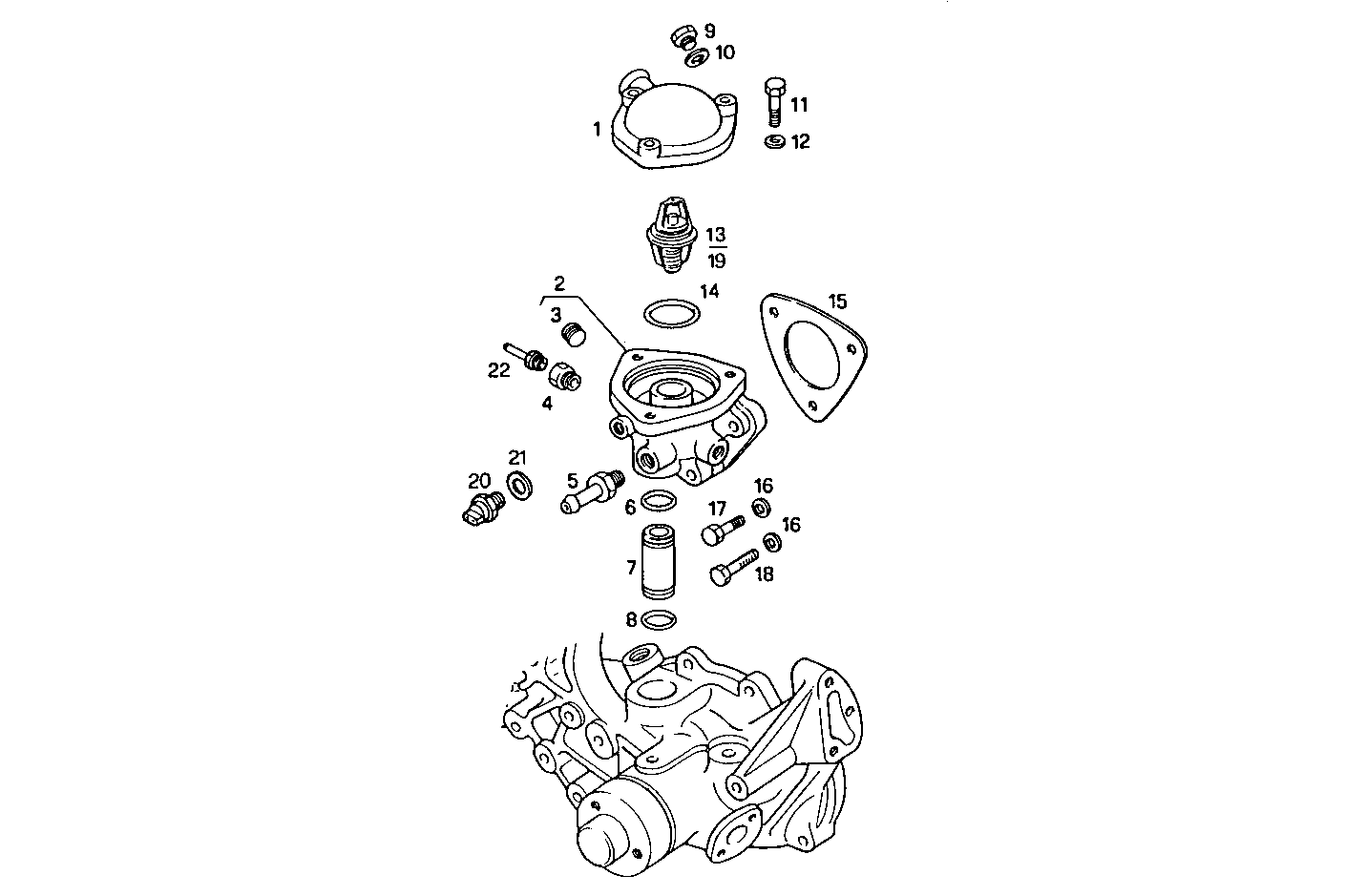

3220.089 THERMOSTAT

Iveco/FPT THERMOSTAT

Item Part number Description
1 4804320 COVER
2 98434855 THERMOSTAT BODY ASSY
3 14325301 LOCK PLUG Ø22 MM
4 4928177 PIPE SOCKET
5 98420965 THREADED UNION
6 17288681 O-RING Ø24,9 MM SP=3,5 MM
7 98415712 PIPE SOCKET [from 657424]
8 17282281 O-RING 2,62x23,47
9 11903111 LOCK PLUG M10X1,25
10 10298360 SEAL GASKET Ø10X16 MM SP=1 MM
11 16606024 SCREW M8X45 MM
12 17094914 WASHER 8x16
13 98432310 THERMOSTAT ASSY
14 98465113 O-RING Ø60 MM
15 4851926 FLAT ENGINE GASKET
16 17095104 WASHER Ø10X21X2 MM
17 11234724 HEXAGON BOLT M10X1,25X45 MM
18 98459852 HEXAGON BOLT M10X45 MM
19 98467516 THERMOSTAT GILARDINI
20 98453557 THERMOSWITCH ASSY
21 10280060 WASHER Ø14X20 MM SP=1,5 MM
22 4616630 THREADED UNION
