8040SRC21.11A005

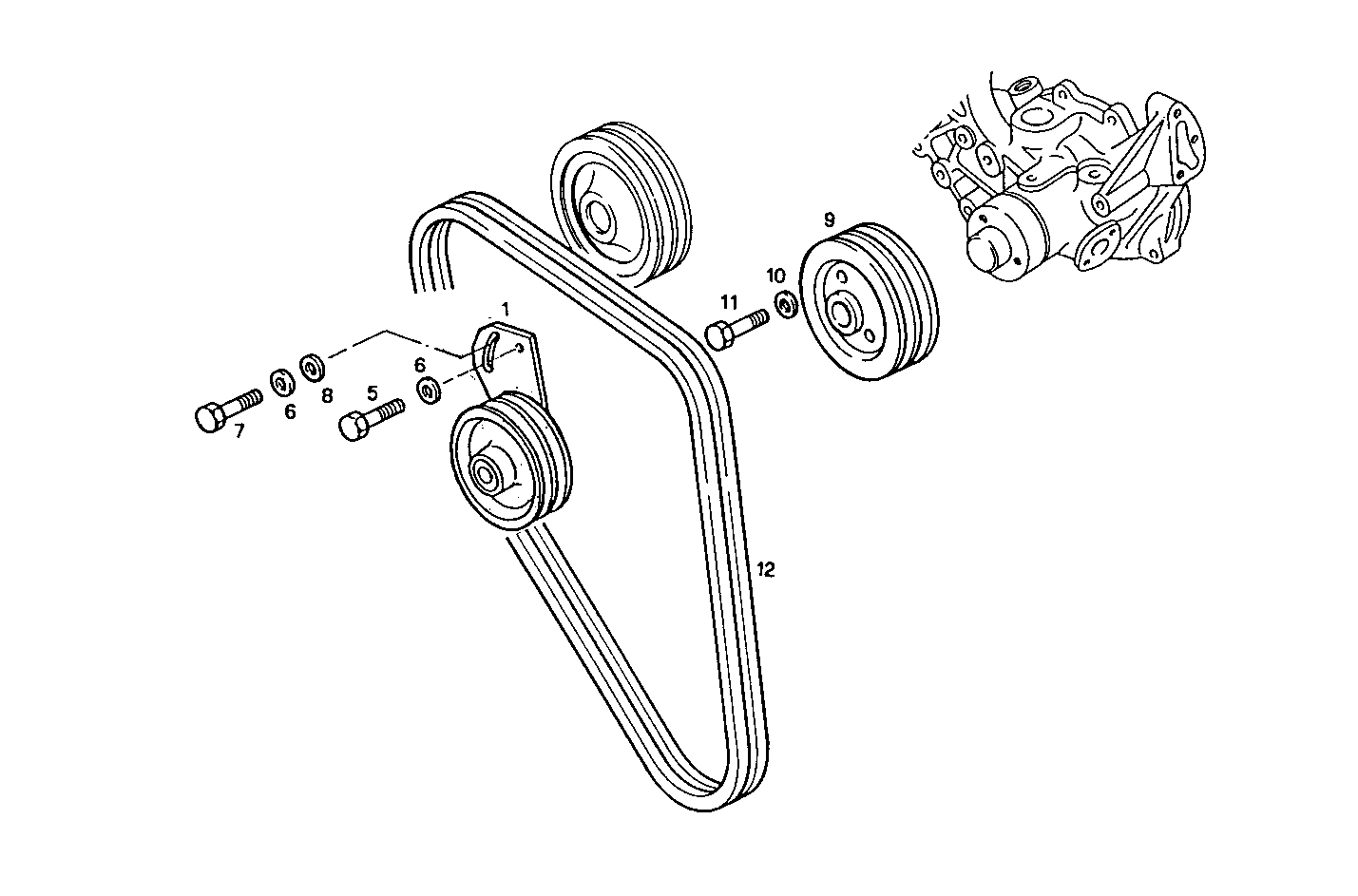

3240.083 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 8013111 | BELT TENSIONER |
| 5 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 11227924 | SCREW |
| 8 | 12646801 | WASHER Ø10,2 MM |
| 9 | 98419016 | WATER PUMP PULLEY |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 16043524 | SCREW M8X22 MM |
| 12 | 4749446 | V-BELT KIT |
