8040SRC21.11A005

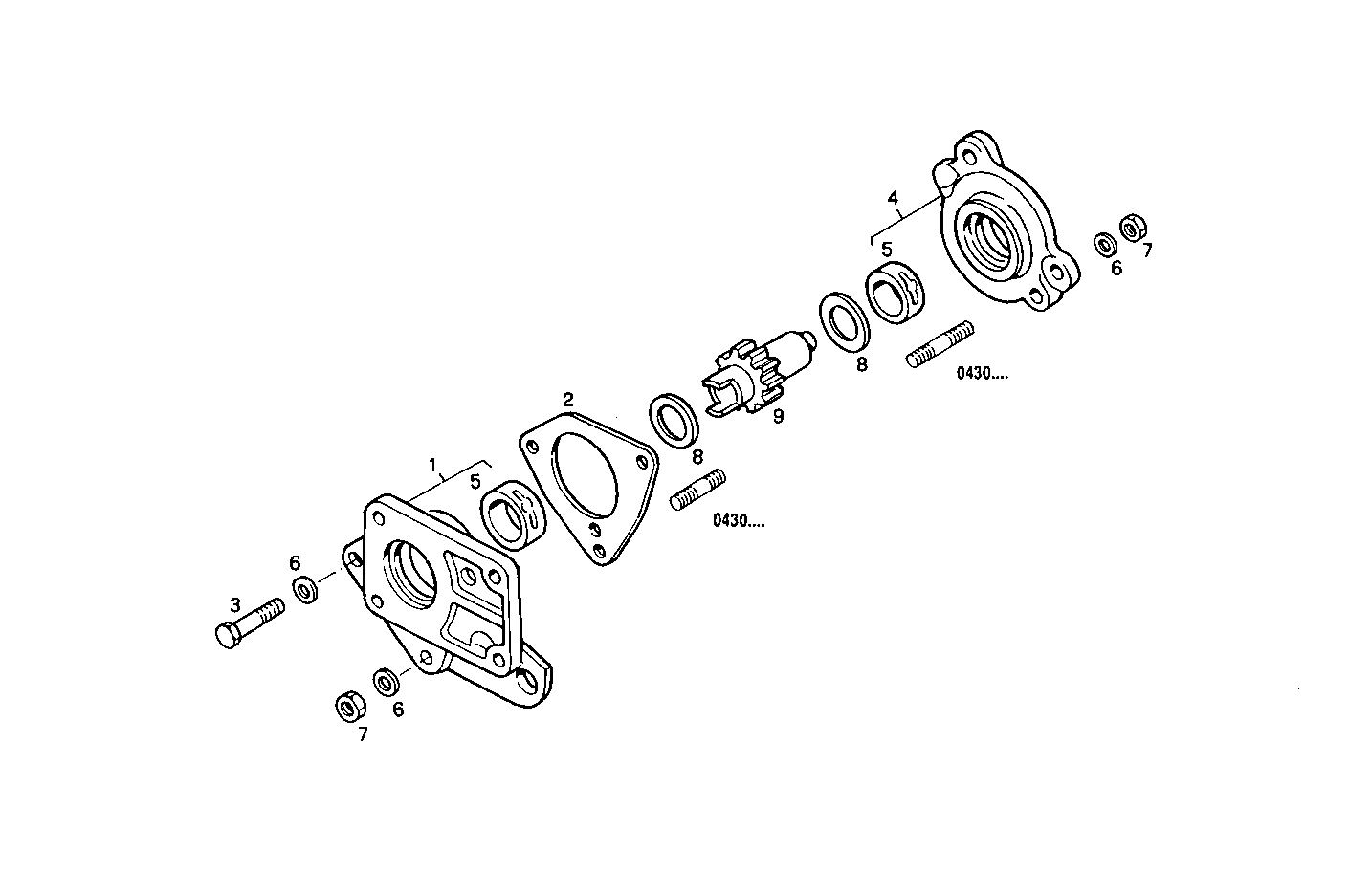

3500.007 POWER TAKE OFF
| Item | Part number | Description |
|---|---|---|
| 1 | 4847515 | SUPPORT ASSY |
| 2 | 4851004 | FLAT ENGINE GASKET |
| 3 | 16606424 | HEXAGON BOLT M8X65 MM |
| 4 | 4771242 | SUPPORT ASSY |
| 5 | 4788087 | BUSH VANDERVELL |
| 6 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 7 | 17037931 | HEXAGON NUT M8X1,25 |
| 8 | 4667452 | SUPPORT RING |
| 9 | 4818560 | SHAFT |
