8040SRM16.10

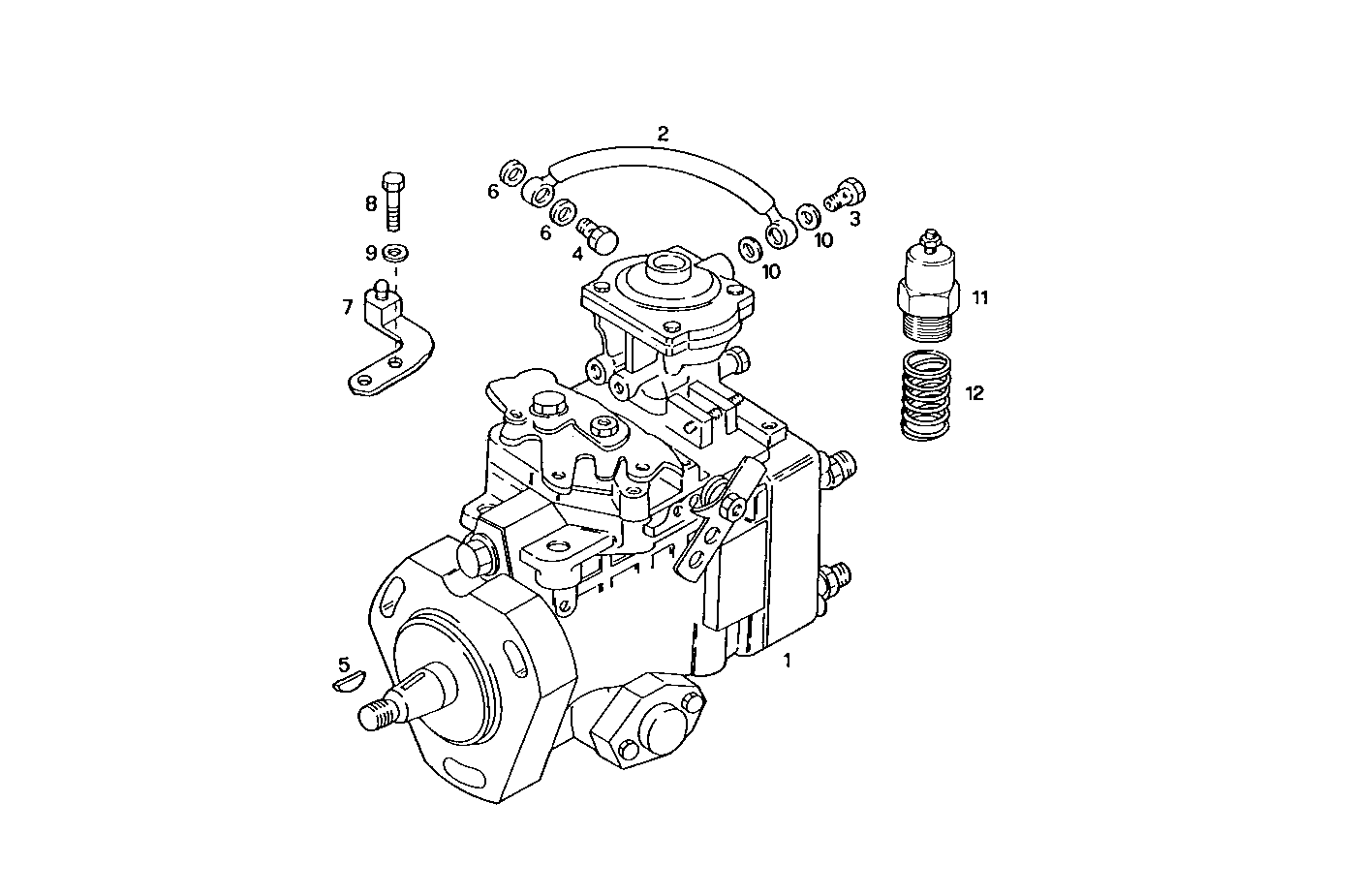

1400.212 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8022945 | DISTRIB.INJ.PUMP |
| 2 | 8010876 | FUEL LINE |
| 3 | 4864077 | SCREW CONNECTOR |
| 4 | 4864078 | BANJO BOLT M8X1,25 |
| 5 | 10205820 | KEY 4X6,5 MM |
| 6 | 98474303 | WASHER Ø8X14 MM SP=2,3 MM |
| 7 | 98445678 | LEVER |
| 8 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 9 | 17088474 | WASHER Ø6X12 MM |
| 10 | 4858605 | WASHER Ø8X12 MM |
| 11 | 8032964 | ELECTROVALVE |
| 12 | 8032965 | SPRING |
