8040SRM16.10

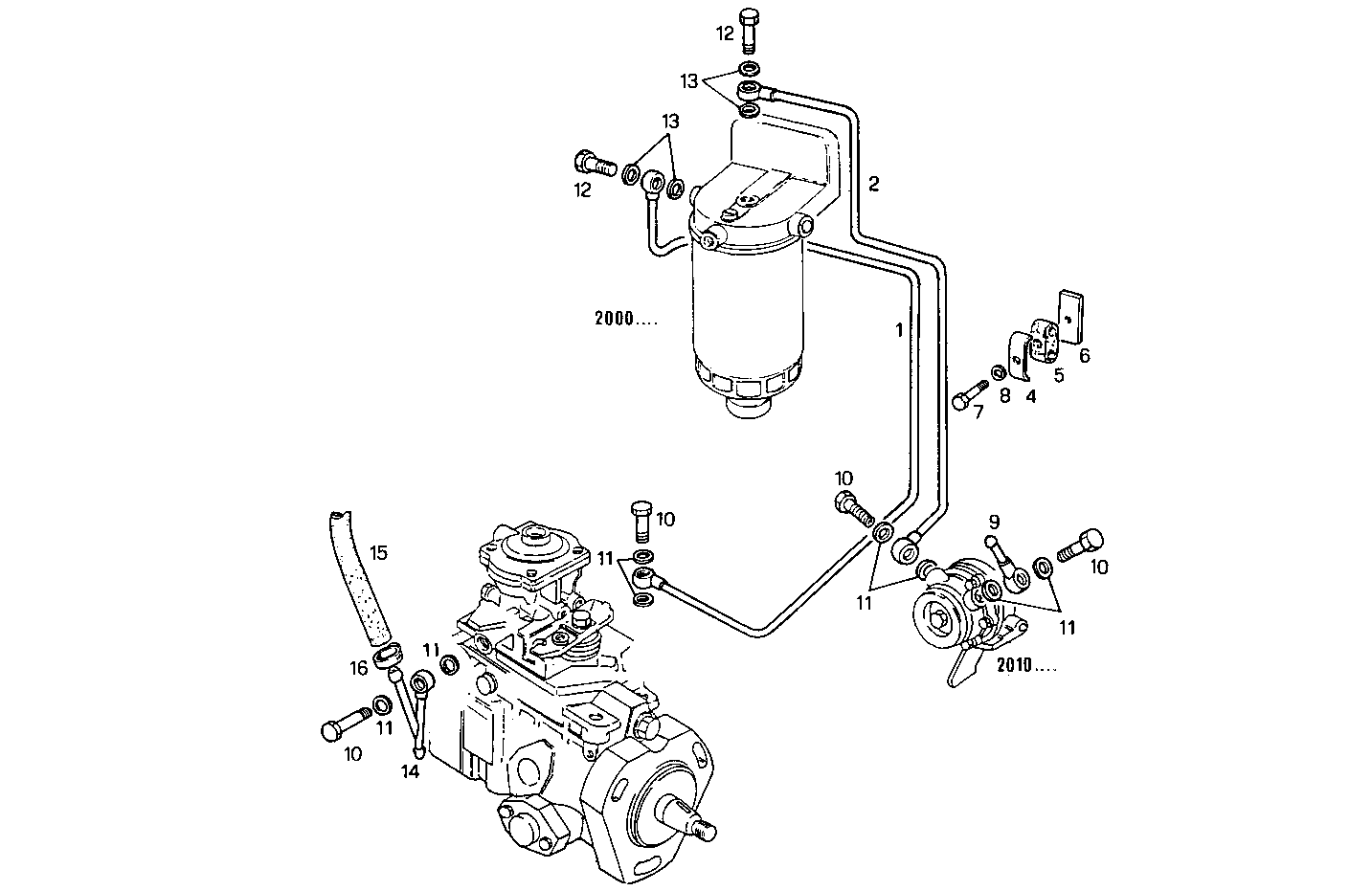

2030.027 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8011346 | FUEL LINE |
| 2 | 8010935 | FUEL LINE |
| 4 | 4659218 | CLIP |
| 5 | 4659217 | DOWEL |
| 6 | 4659219 | PLATE |
| 7 | 16602224 | HEXAGON BOLT M5X20 MM |
| 8 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
| 9 | 98405514 | PIPE SOCKET |
| 10 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 11 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 12 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 13 | 98474308 | SEAL GASKET Ø14X22 MM |
| 14 | 98433829 | BANJO COUPLING [up to 1555507] |
| 15 | 4934253 | RUBBER SLEEVE L=500 MM |
| 16 | 18088393 | CLIP Ø16/25 MM |
