8040SRM16.10

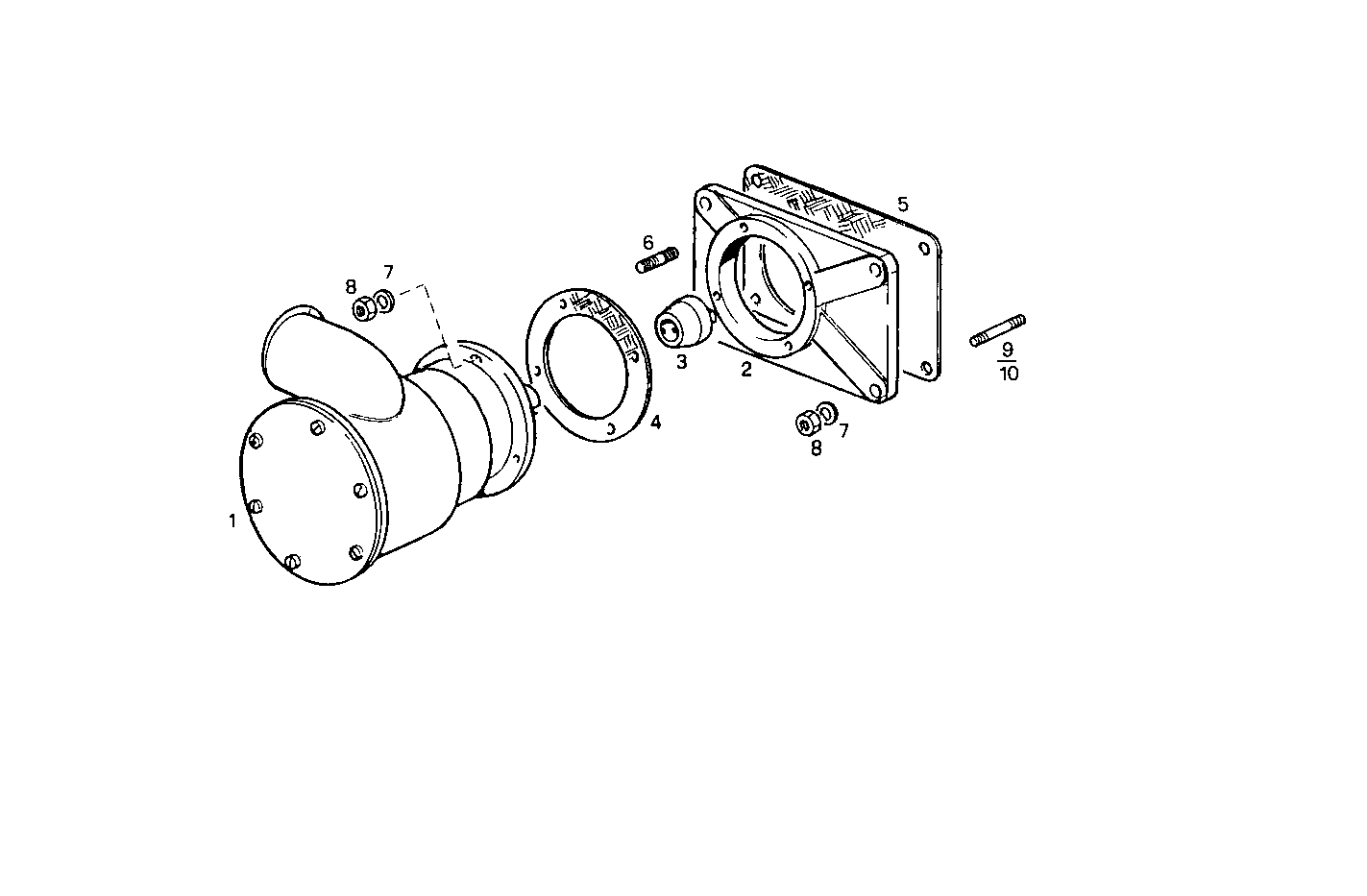

3380.014/01 SEA WATER PUMP - JABSCO

Iveco/FPT SEA WATER PUMP

Item Part number Description
1 8107293 SEA WATER PUMP ASSY JABSCO
2 8108600 SUPPORT
3 4919289 COUPLER
4 8008922 GASKET
5 4850986 FLAT ENGINE GASKET
6 11500221 STUD M6X9X16 MM
7 11197779 SPRING WASHER Ø6X12 MM
8 15896211 HEXAGON NUT M6
9 16745024 STUD M6X12X20 MM
10 4615276 STUD M8X20
