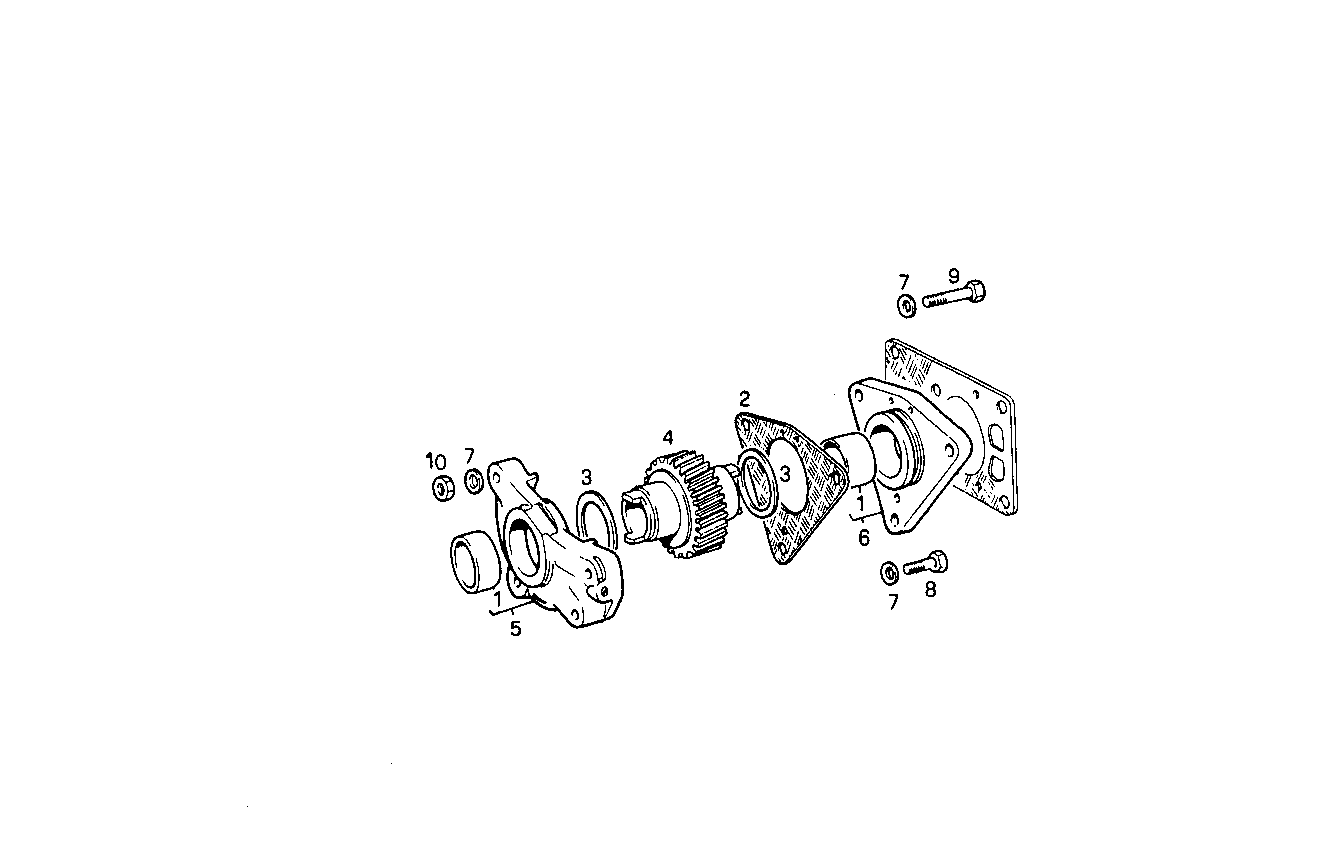

3500.002 POWER TAKE OFF

Iveco/FPT POWER TAKE OFF

Item Part number Description
1 4788087 BUSH VANDERVELL
2 4851004 FLAT ENGINE GASKET
3 4667452 SUPPORT RING
4 4818560 SHAFT
5 4771242 SUPPORT ASSY
6 4619407 SUPPORT ASSY REAR
7 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
8 16606324 HEXAGON BOLT M8X60 MM
9 16606424 HEXAGON BOLT M8X65 MM
10 17037931 HEXAGON NUT M8X1,25
