8040SRM16.10

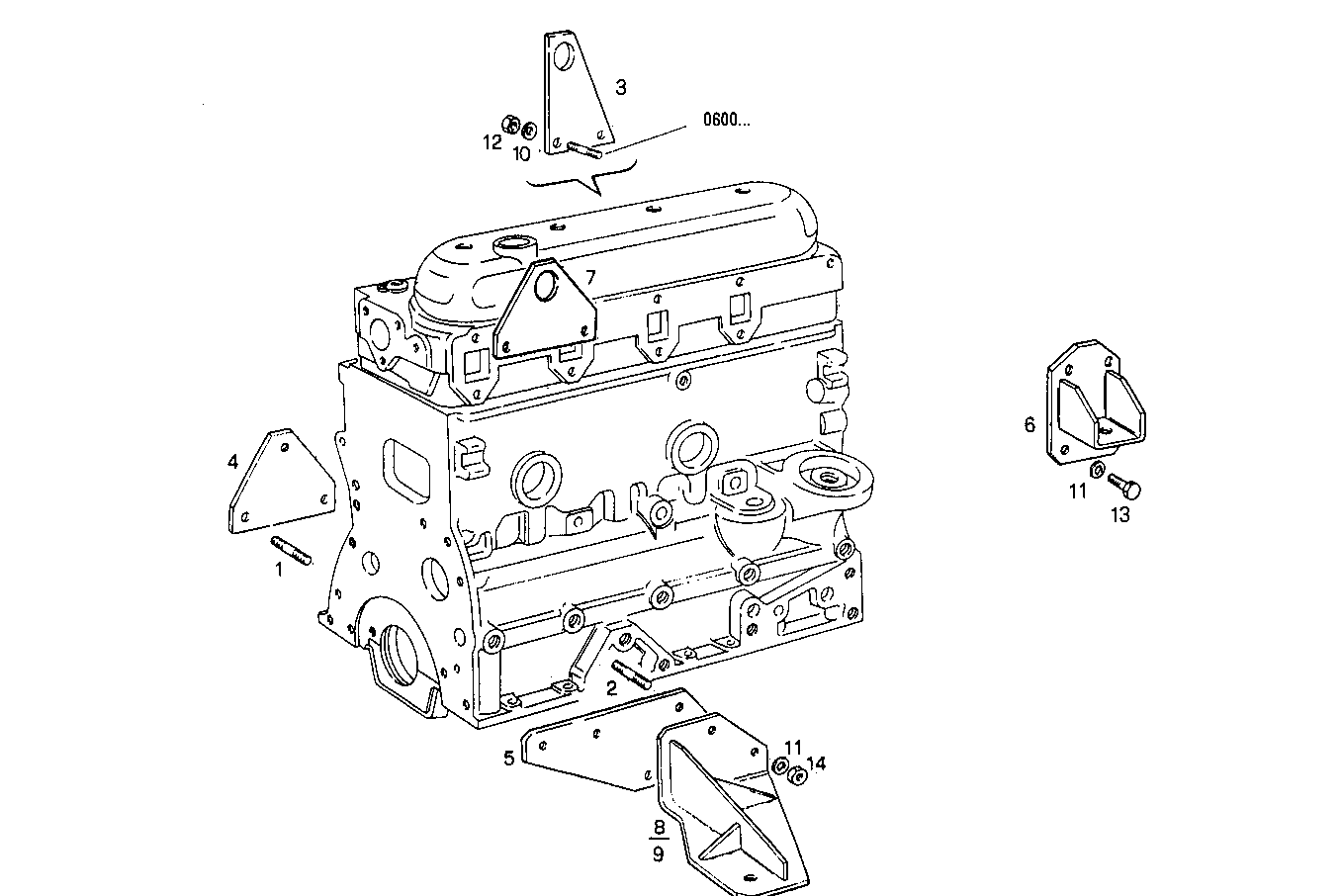

4500.015 ENGINE SUSPENSION

Iveco/FPT ENGINE SUSPENSION

Item Part number Description
1 16733224 STUD M12X1,75X30
2 16733424 STUD M12X1,75X40
3 4932612 HOOK REAR - RIGHT
4 4919820 SPACING BAR
5 8112724 SPACING BAR
6 8113092 SUPPORT REAR
7 4930458 PLATE
8 4919786 ENGINE SUSPENSION RIGHT
9 8111075 SUPPORT LEFT
10 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
11 11198379 SPRING WASHER Ø10X20 MM SP=2,6
12 17037931 HEXAGON NUT M8X1,25
13 15004021 HEXAGON BOLT M10X1,25X25 MM
14 17038221 HEXAGON NUT M10
