8040SRM16.10

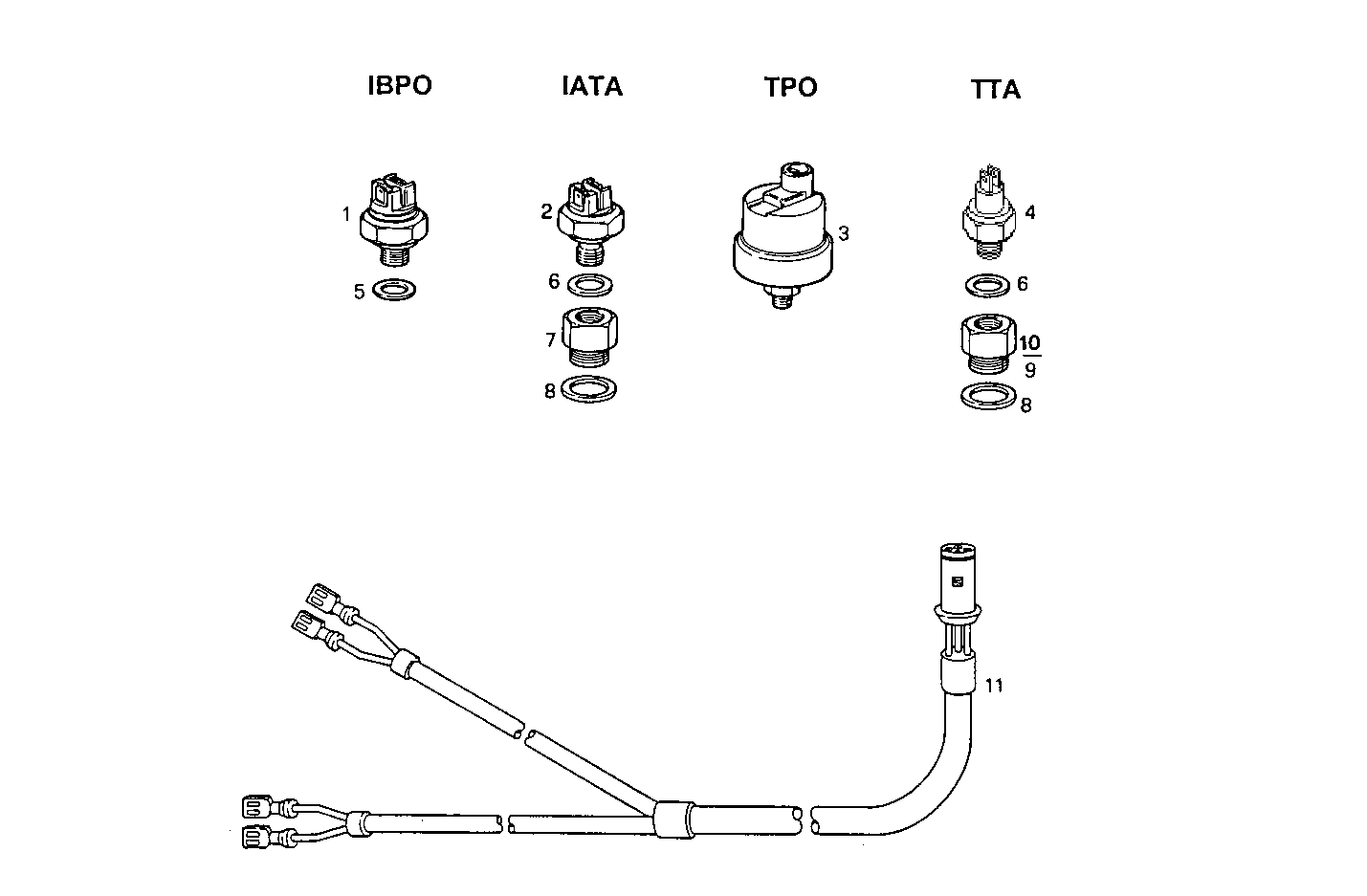

A38560009 SENDER UNITS FOR INSTRUMENTS - double 12/24V - VDO
| Item | Part number | Description |
|---|---|---|
| 1 | 8114030 | TRANSMITTER IBPO |
| 2 | 8019334 | TRANSMITTER IATA |
| 3 | 8100417 | TRANSMITTER TPO |
| 4 | 8100418 | TRANSMITTER TTA |
| 5 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 6 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 7 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
| 8 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 9 | 4927760 | PIPE SOCKET M22X1,5 |
| 11 | 8108383 | ENGINE HARNESS |
