8040SRM16.10

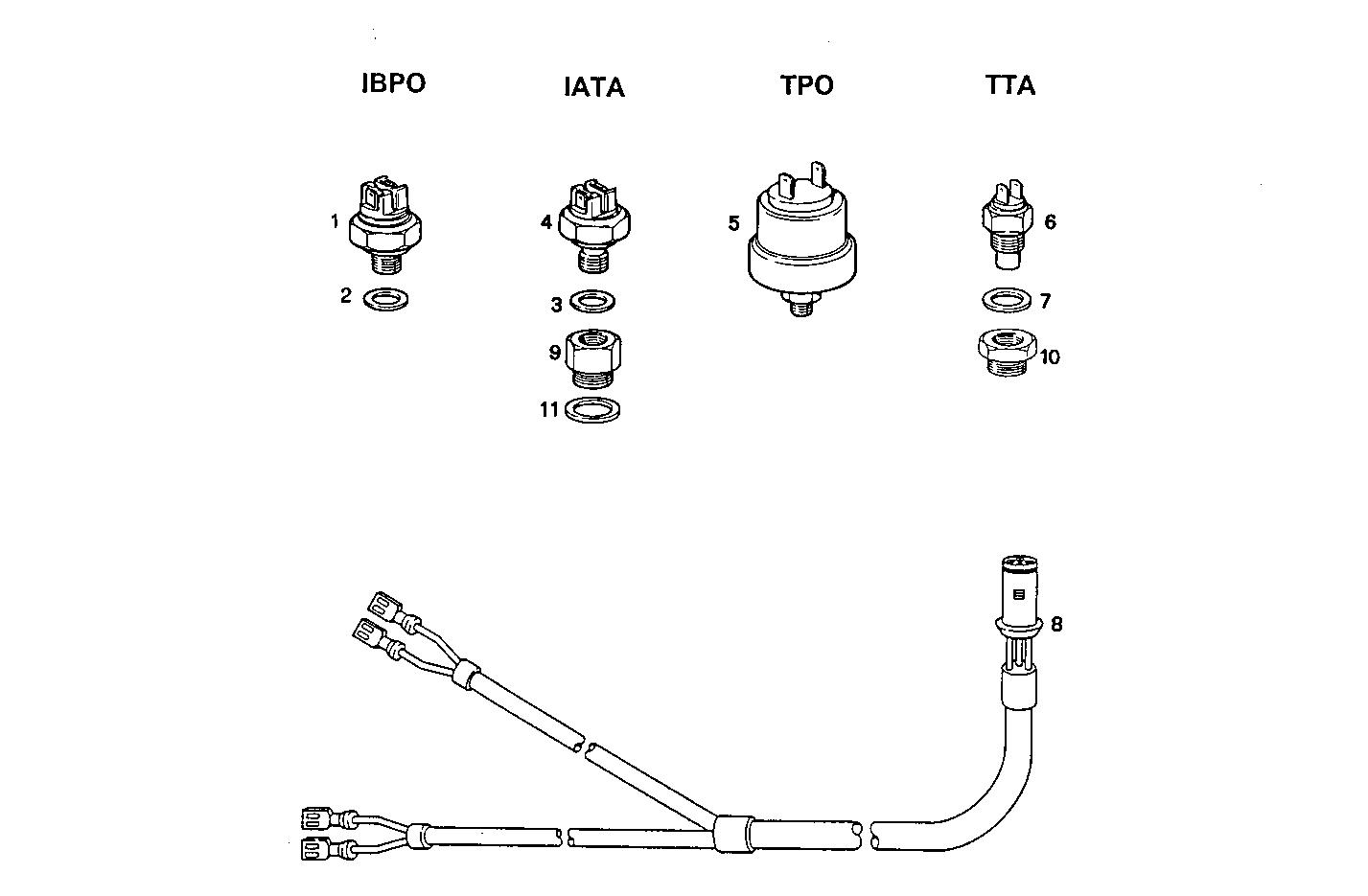

A38560017 SENDER UNITS FOR INSTRUMENTS - double 12/24V - VEGLIA
Item | Part number | Description |
---|---|---|
1 | 8114030 | TRANSMITTER IBPO |
2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
3 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
4 | 8019334 | TRANSMITTER IATA |
5 | 8008031 | TRANSMITTER TPO |
6 | 8008030 | TRANSMITTER TTA |
7 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
8 | 8108383 | ENGINE HARNESS |
9 | 4928330 | PIPE SOCKET M16X1,5/M14X1,5 |
10 | 4919578 | PIPE SOCKET M22X1,5/M16X1,5 |
11 | 10279560 | SEAL GASKET Ø22,2 MM |
