8040SRM16.10

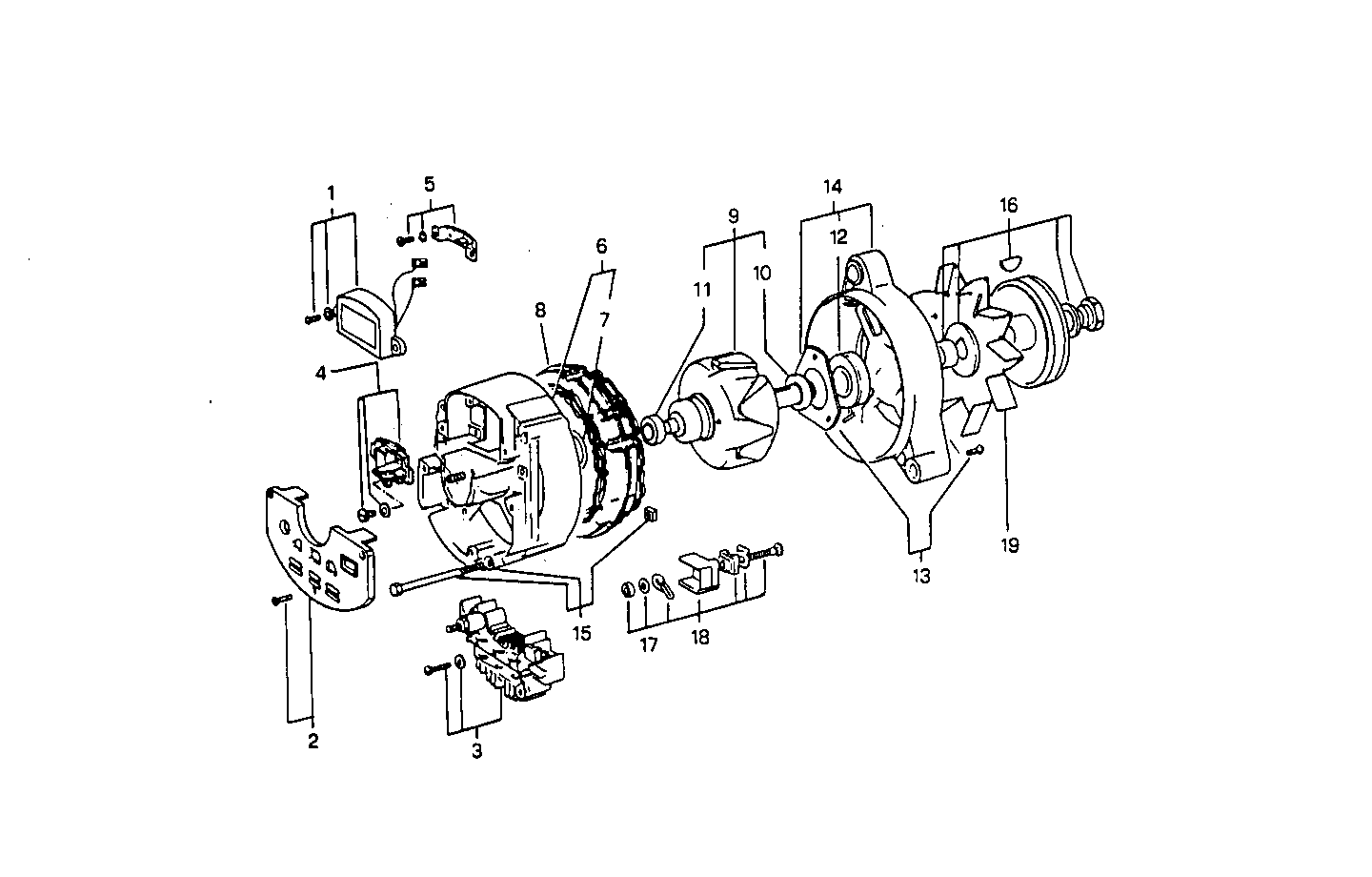

T1406001 ALTERNATOR - (components)

Iveco/FPT ALTERNATOR

Item Part number Description
1 8090000 VOLTAGE REGULATOR
2 8090001 COVER
3 8090002 RECTIFIER
4 8090003 BRUSH HOLDER
5 8090004 RETAINER
6 8090005 SUPPORT ASSY
7 8090006 STATOR
8 8090007 STATOR
9 8090008 ROTOR ASSY
10 8090009 SPACING BAR
11 8090010 DRIVE BEARING
12 8090011 DRIVE BEARING
13 8090012 PLATE
14 8090013 SUPPORT ASSY
15 8090014 SCREW
16 8090015 KIT-GENERATOR
17 8090016 CLAMP D+
18 8090017 CLAMP W
19 8090018 GENERATOR FAN
