8041C05.06

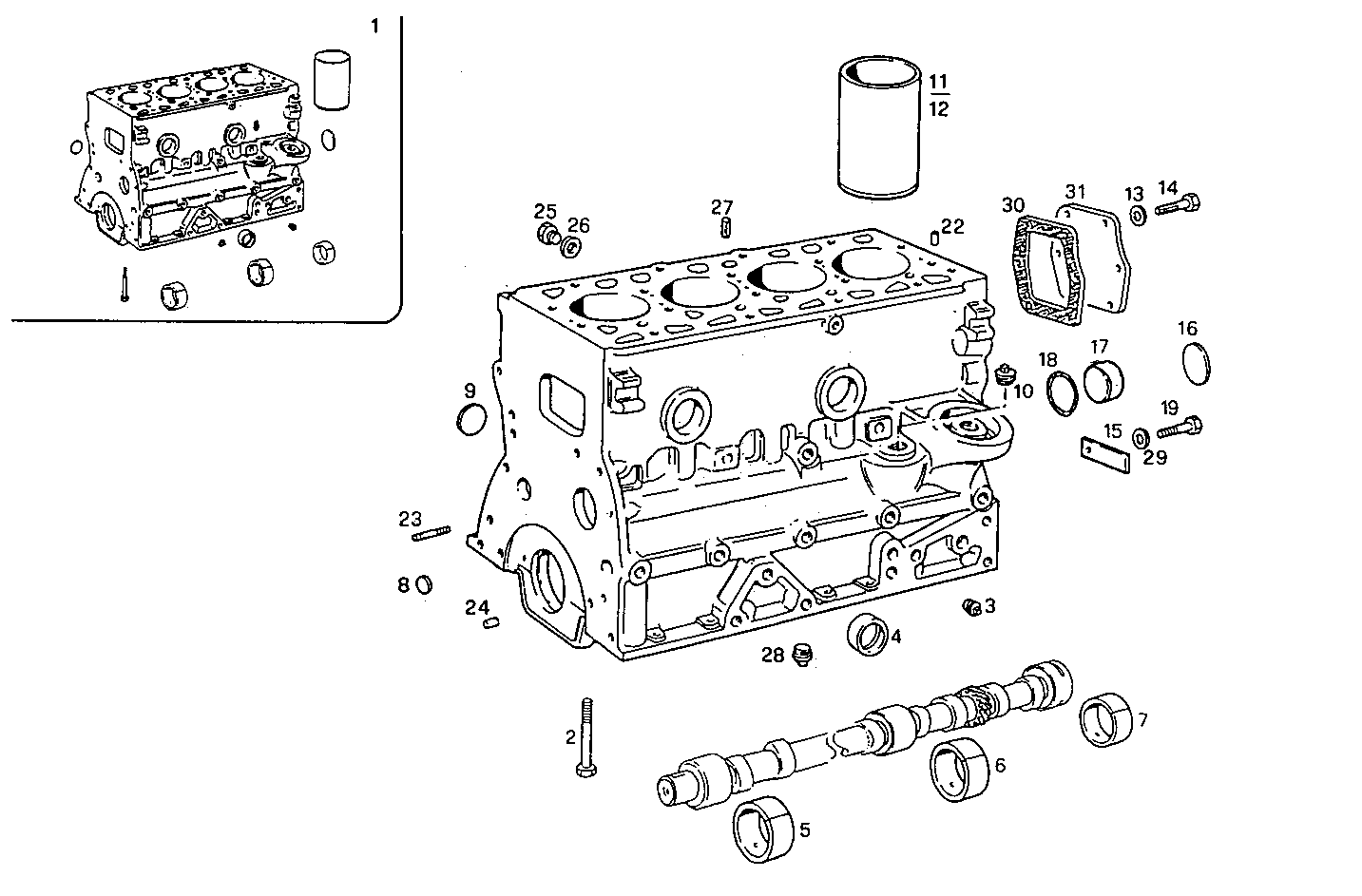

0400.077 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 98444091 CRANKCASE ASSY
2 4792169 SCREW
3 99434231 THREADED PLUG M10X1,25
4 14329901 LOCK PLUG Ø40 MM
5 4603449 CAMSHAFT BEARING MOGUL
6 4603450 CAMSHAFT BEARING CLEVITE
7 4603451 CAMSHAFT BEARING MOGUL
8 14328501 LOCK PLUG Ø16 MM
9 14282770 LOCK PLUG Ø36 MM
10 14323811 LOCK PLUG Ø20 MM SP=1,5 MM
11 4770623 CYLINDER LINER
12 4770624 CYLINDERLINER +0.2
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 16043324 HEXAGON BOLT M8X18 MM
15 98443528 LOCKING PLATE
16 10160701 LOCK PLUG Ø60 MM [up to ...]
17 98412737 LOCK PLUG [from ...]
18 17284481 O-RING Ø58,4 MM SP=2,6 MM [from ...]
19 15853221 HEXAGON BOLT
22 4846850 DOWEL PIN
23 13517824 STUD M8x12x60 MM
24 17275410 DOWEL PIN Ø8 MM
25 4665029 LOCK PLUG M42X1,5
26 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
27 17254970 DOWEL PIN Ø5 MM
28 16997411 THREADED PLUG M16X1,5
29 16665614 WASHER Ø10,5 MM
30 99445564 FLAT ENGINE GASKET SP=1,5 MM
31 4653282 REAR C.CASE COVER
