8041C05.06

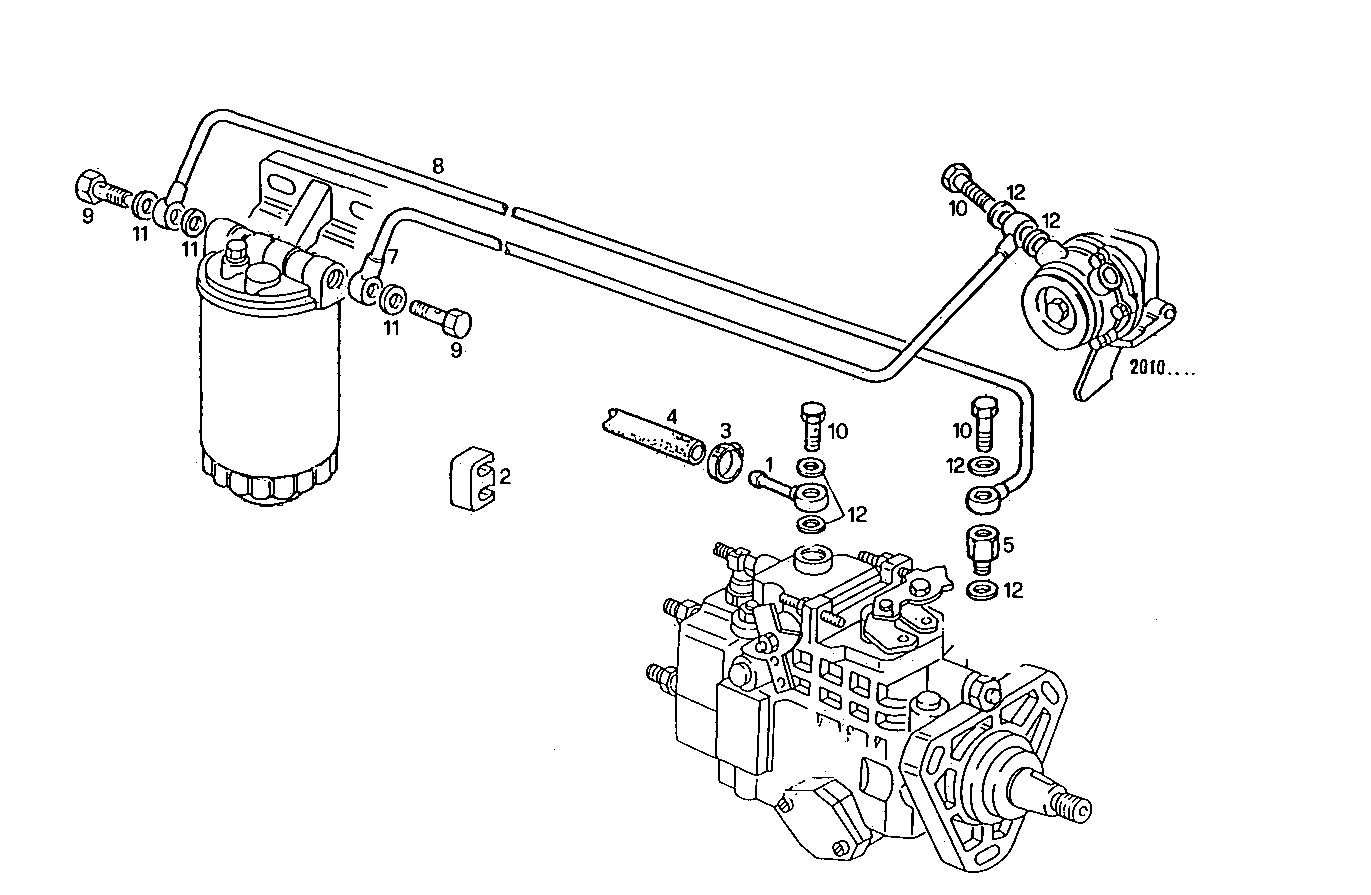

2030.092 FUEL LINES
Item | Part number | Description |
---|---|---|
1 | 4789860 | BANJO COUPLING 1C [up to 31-08-02] |
2 | 4807808 | RETAINER |
3 | 18088192 | CLIP m10-16 |
4 | 17724587 | RUBBER HOSE Ø7,5X14,5 MM |
5 | 4802434 | THREADED UNION M12X1,5 |
6 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
7 | 4802225 | FUEL LINE |
8 | 4802227 | FUEL LINE |
9 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
10 | 4864082 | BANJO BOLT M12X1,5X25 MM |
11 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
12 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
