8041C05.06

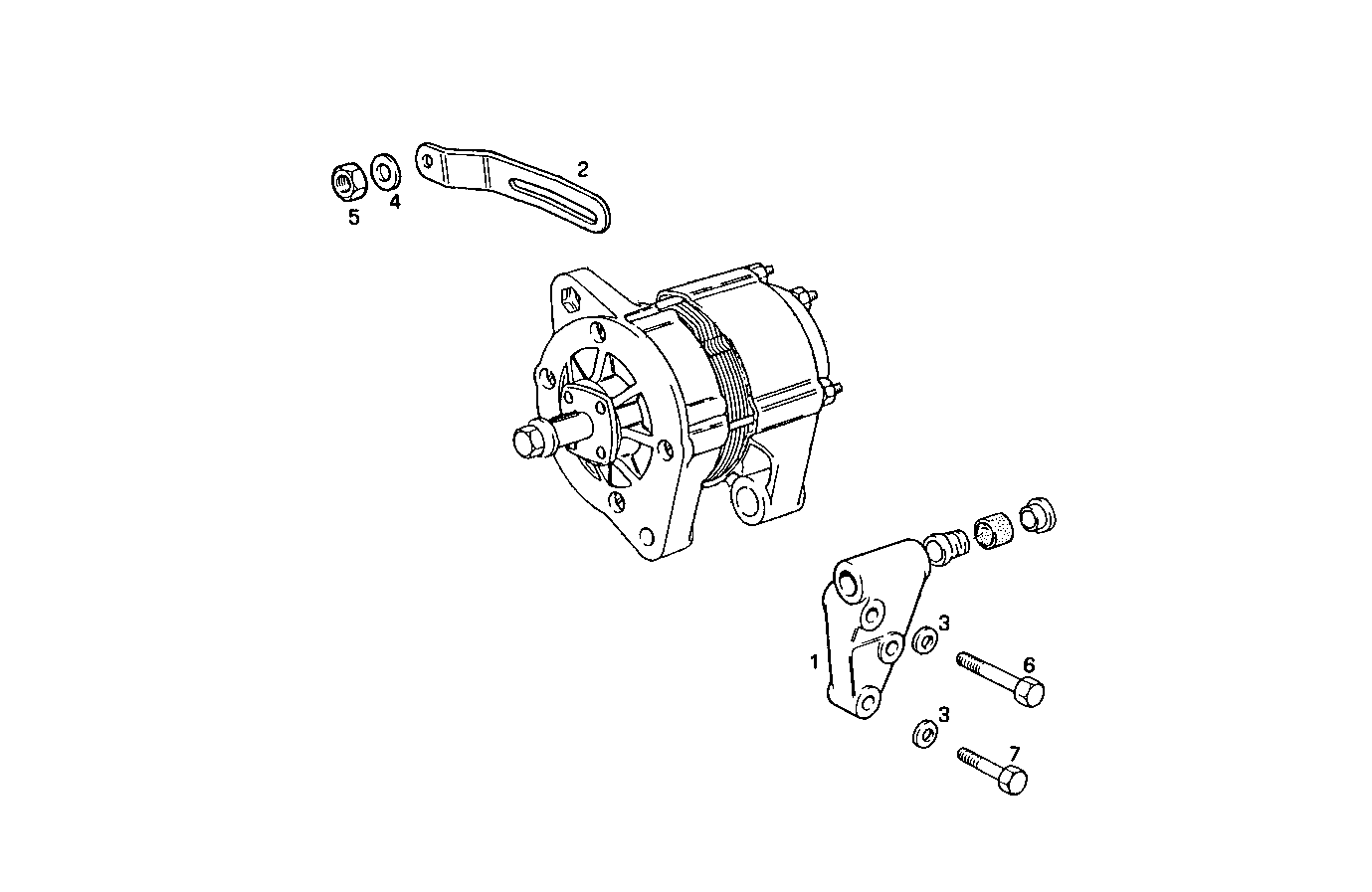

4010.044 MOUNT
| Item | Part number | Description |
|---|---|---|
| 1 | 4677353 | GENERATOR SUPPORT |
| 2 | 4601576 | BELT TENSIONER |
| 3 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 4 | 17090274 | WASHER Ø10X20 MM |
| 5 | 17038221 | HEXAGON NUT M10 |
| 6 | 16606224 | HEXAGON BOLT M8X55 MM |
| 7 | 16606024 | SCREW M8X45 MM |
