8041C05.06

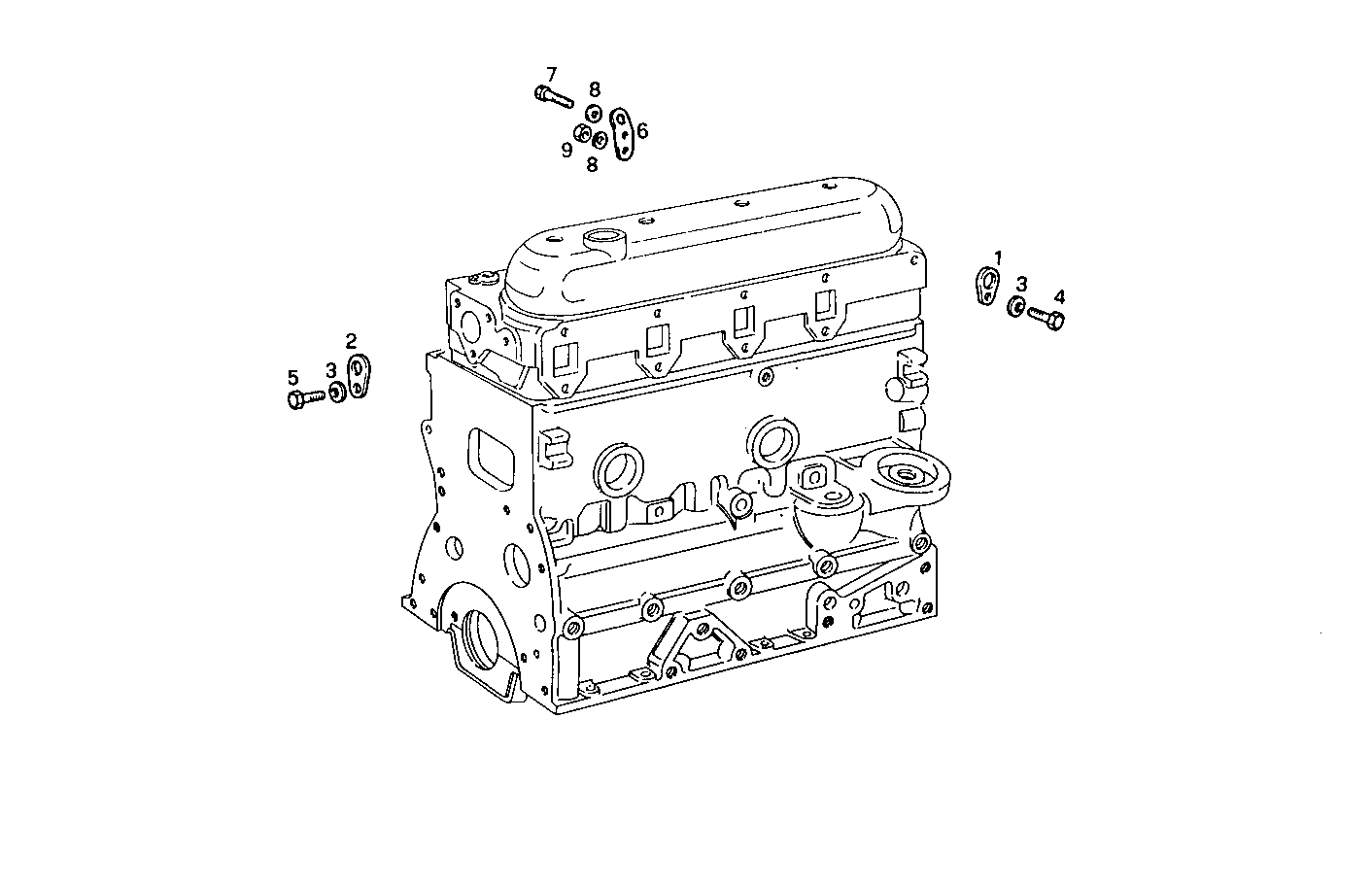

4500.067 ENGINE SUSPENSION

Iveco/FPT ENGINE SUSPENSION

Item Part number Description
1 98439780 HOOK REAR LEFT
2 4776061 HOOK
3 11190579 SPRING WASHER Ø10X20 MM SP=2,3
4 15970521 HEXAGON BOLT M10X20 MM
5 15004021 HEXAGON BOLT M10X1,25X25 MM
6 98439779 HOOK REAR RIGHT
7 16605924 SCREW M8X40 MM
8 17037931 HEXAGON NUT M8X1,25
9 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
