8041C05.06

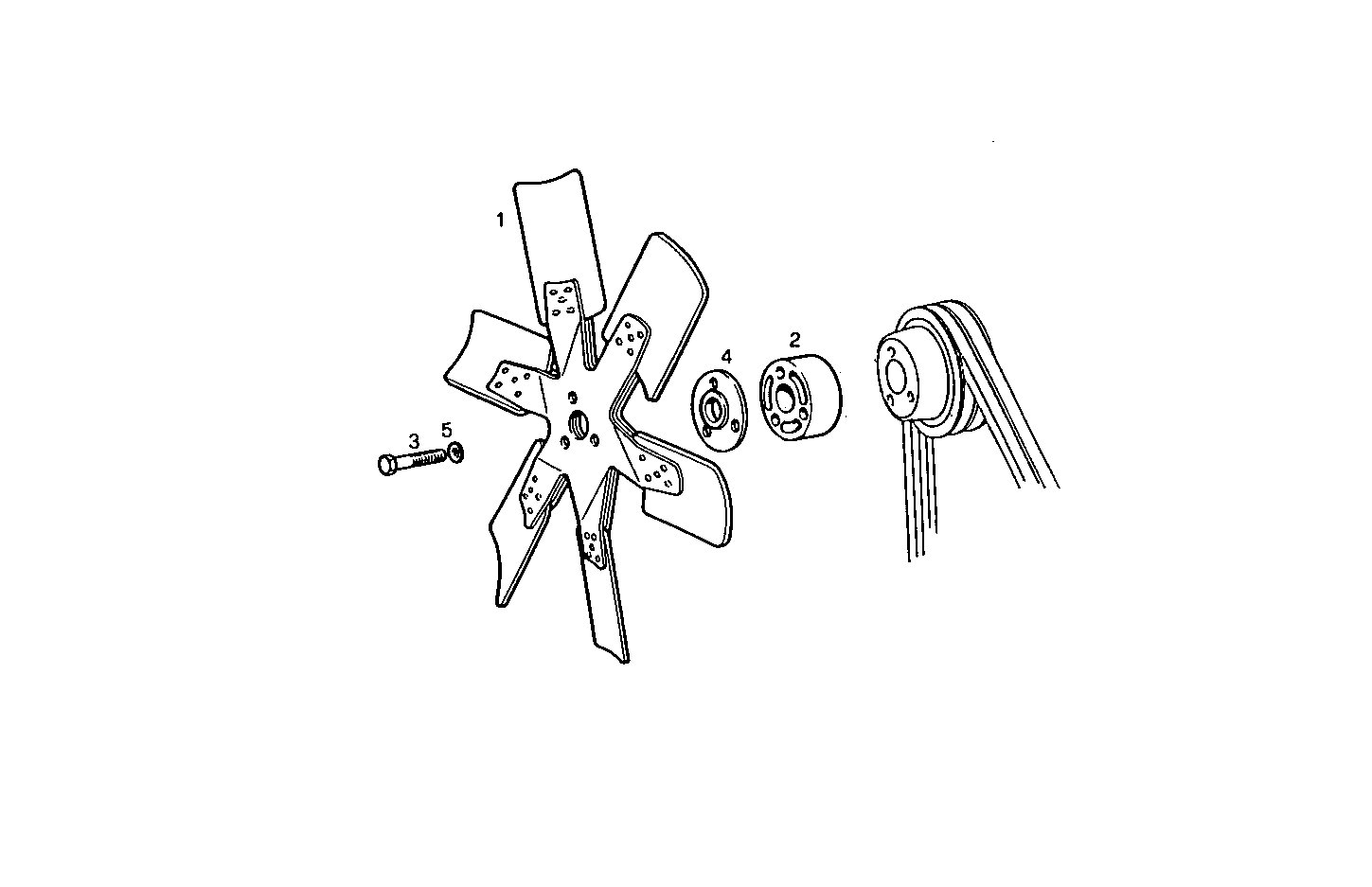

A08010012 PUSHER FAN - on water pump
| Item | Part number | Description |
|---|---|---|
| 1 | 8108030 | FAN Ø392 MM |
| 2 | 8108500 | HUB |
| 3 | 16606324 | HEXAGON BOLT M8X60 MM |
| 4 | 4584861 | SPACING BAR |
| 5 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
