8041C05.06

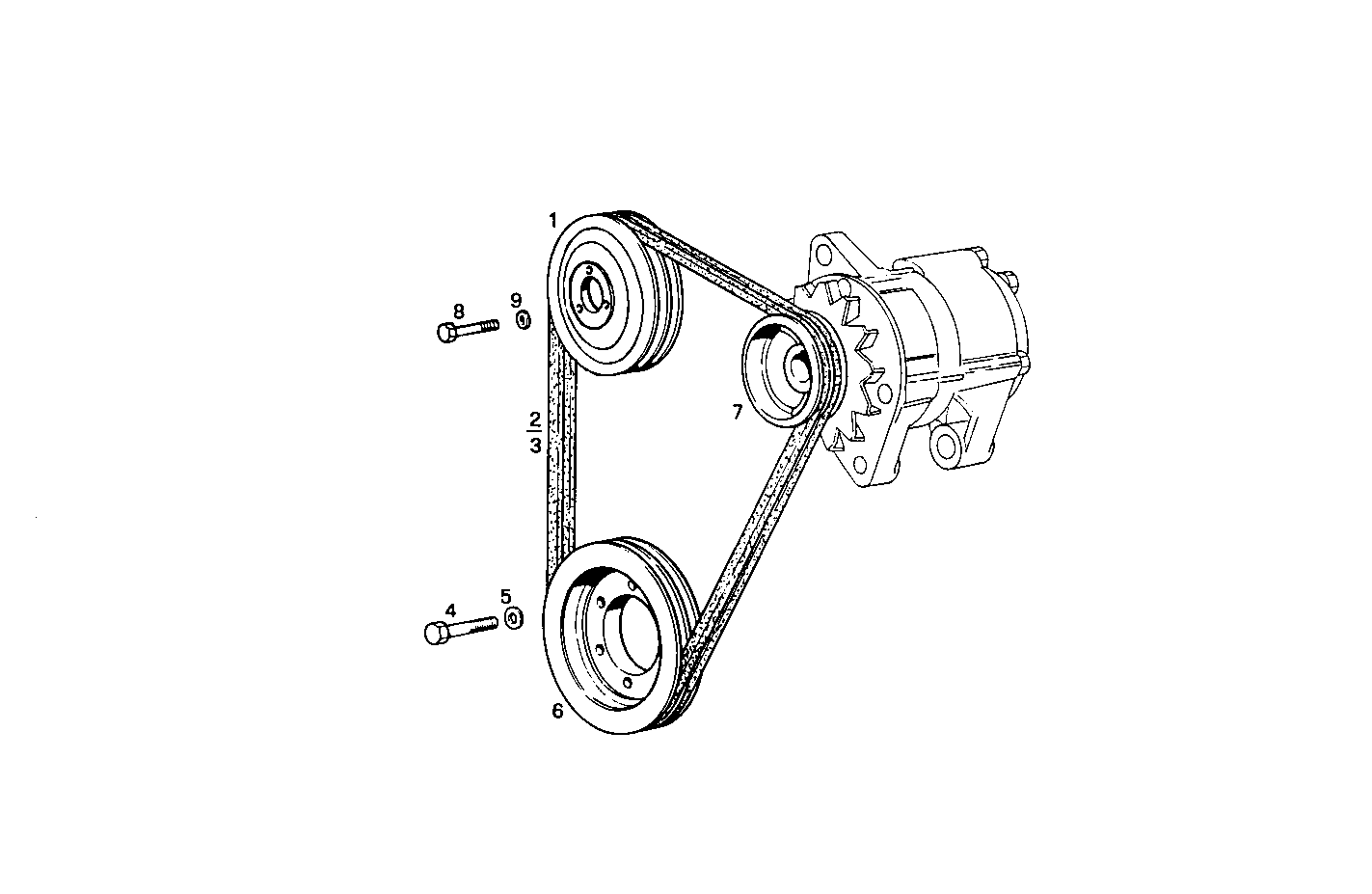

A12010005 FRONT DRIVE WITH 2 BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 8108493 | PULLEY |
| 2 | 8108514 | V-BELT KIT |
| 3 | 4847051 | SET OF V-BELTS L=1130 MM |
| 4 | 11606921 | SCREW |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
| 6 | 8108478 | PULLEY |
| 7 | 4808607 | PULLEY |
| 8 | 16605424 | SCREW M8X16 MM (8.8) |
| 9 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
