8041C05.06

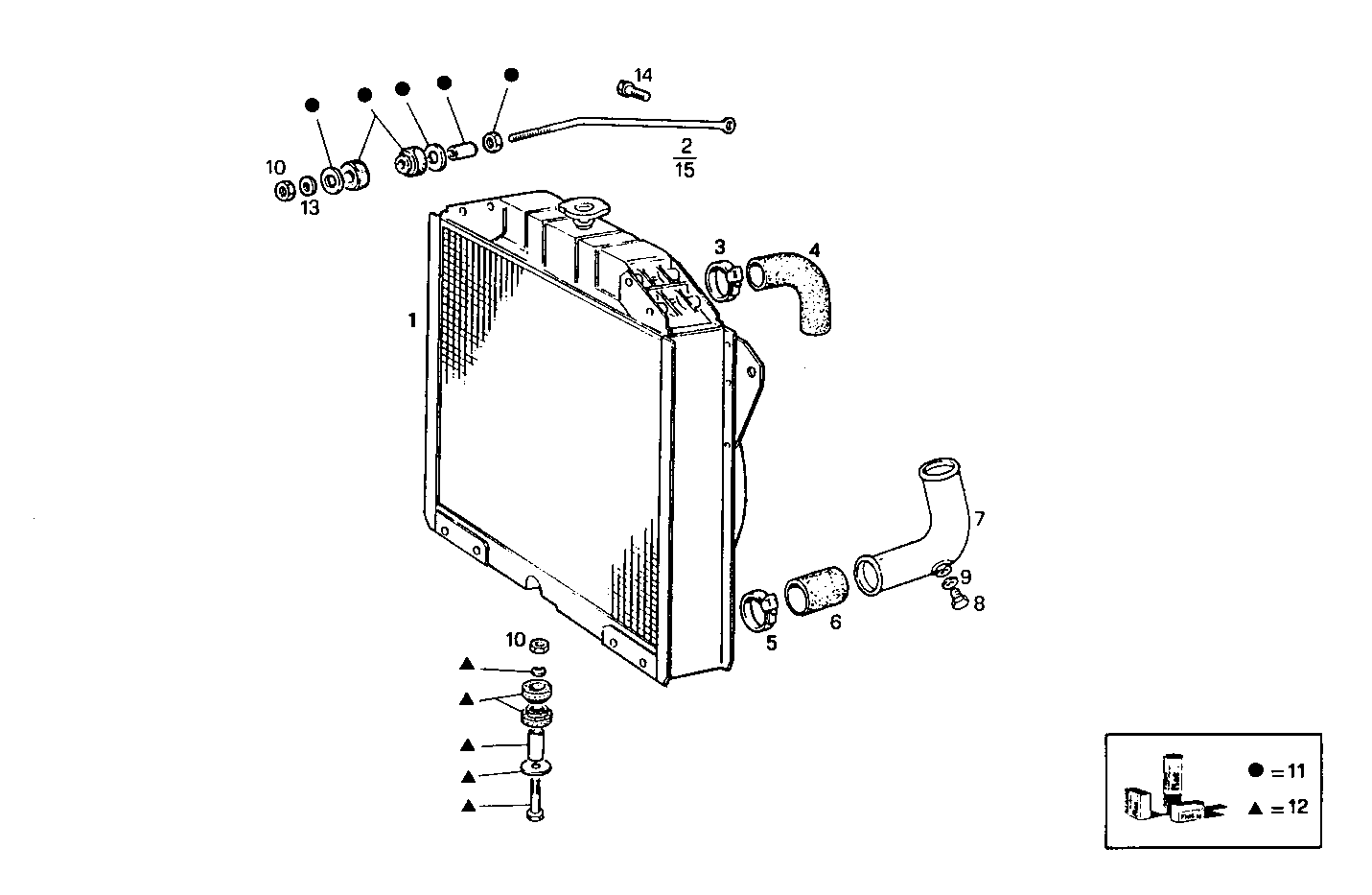

A22000001 RADIATOR FOR SETTING TILL MAX POWER - loose
Item | Part number | Description |
---|---|---|
1 | 8009087 | WATER RADIATOR ASSY |
2 | 8108041 | TIE ROD LEFT |
3 | 17764891 | CLIP Ø40/60 MM |
4 | 4950088 | WATER PIPE |
5 | 17764792 | HOSE CLIP Ø32-50 MM |
6 | 10136187 | RUBBER SLEEVE |
7 | 8108033 | WATER PIPE |
8 | 16992111 | THREADED PLUG M10X1 |
9 | 4858606 | GASKET Ø10X14X1 MM |
10 | 17038221 | HEXAGON NUT M10 |
11 | 8090413 | KIT-RADIATOR A.S. COMPLETE |
12 | 8090341 | KIT-RADIATOR A.S. COMPLETE |
13 | 17090274 | WASHER Ø10X20 MM |
14 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
15 | 8108042 | TIE ROD RIGHT |
