8041C05.06

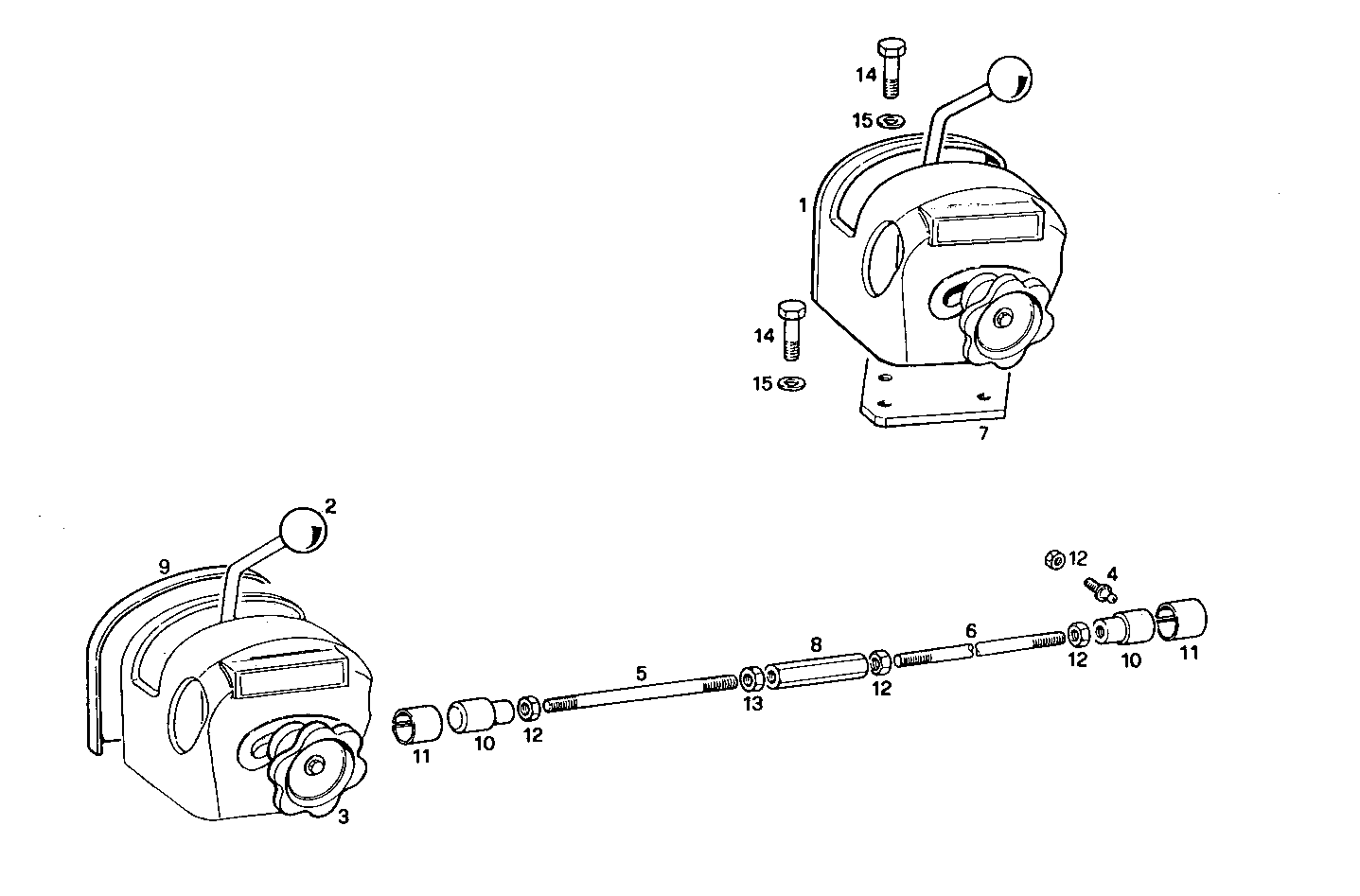

A24020009 HAND ACCELERATOR - assembled
| Item | Part number | Description |
|---|---|---|
| 1 | 4927113 | HAND ACCELERATOR ASSY |
| 2 | 4927041 | HANDLE BALL |
| 3 | 4927042 | HANDWHEEL |
| 4 | 15152011 | PIN |
| 5 | 8823236 | TIE ROD LEFT |
| 6 | 4936606 | TIE ROD |
| 7 | 4929494 | PLATE |
| 8 | 10091011 | TURNBUCKLE |
| 9 | 4927115 | COVER |
| 10 | 10124411 | BALL SOCKET M6X1 |
| 11 | 10124876 | CLIP |
| 12 | 15896211 | HEXAGON NUT M6 |
| 13 | 16981731 | NUT M6 |
| 14 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 15 | 11198371 | SPRING WASHER Ø10X20 MM |
