8041C05.06

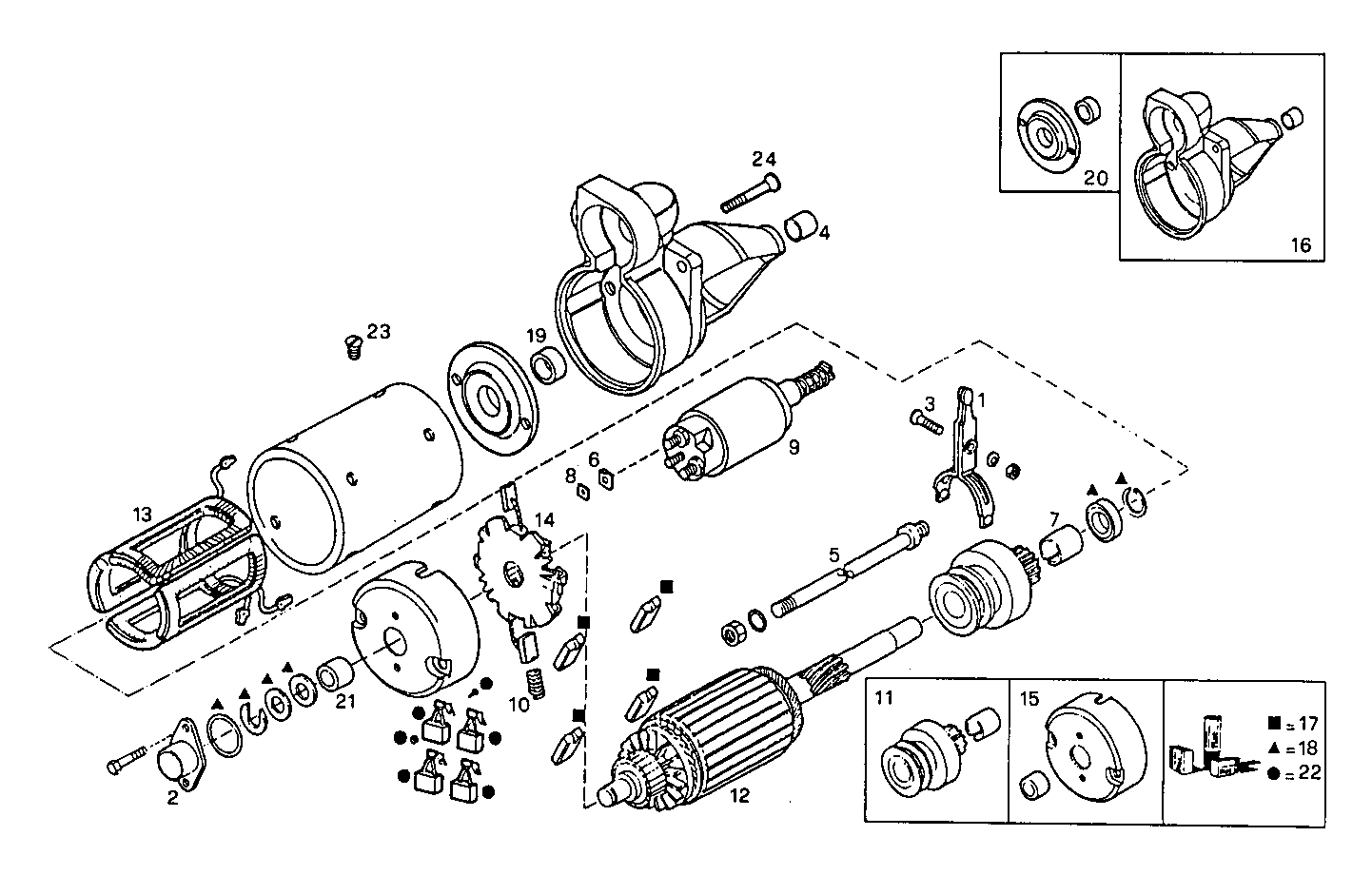

T1000003 STARTER MOTOR - (components)
| Item |
Part number |
Description |
|
1 |
8190144 |
START.COUPL.LEVER |
|
2 |
79026098 |
COVER |
|
3 |
79033669 |
SCREW |
|
4 |
2985187 |
BUSH |
|
5 |
2985193 |
PIN |
|
6 |
8121732 |
LOCKING PLATE |
|
7 |
8997797 |
BUSH |
|
8 |
2985062 |
STOP PLATE |
|
9 |
93194339 |
STARTER SOLENOID |
|
10 |
79026100 |
SPRING |
|
11 |
79026090 |
STARTER PINION ASSY |
|
12 |
79044566 |
STARTER ARMATURE |
|
13 |
79044565 |
STARTER WINDING |
|
14 |
79044568 |
STARTER SUPPORT |
|
15 |
79026096 |
COVER ASSY |
|
16 |
79044563 |
STARTER SUPPORT ASSY |
|
17 |
1320253 |
KIT-STARTER |
|
18 |
79045355 |
KIT-STARTER |
|
19 |
2985189 |
BUSH |
|
20 |
1308810 |
STARTER SUPPORT ASSY |
|
21 |
79026097 |
BUSH ASSY |
|
22 |
79082432 |
KIT-STARTER |
|
23 |
9920324 |
SCREW |
|
24 |
79075910 |
SCREW |
