8041C05.06A018

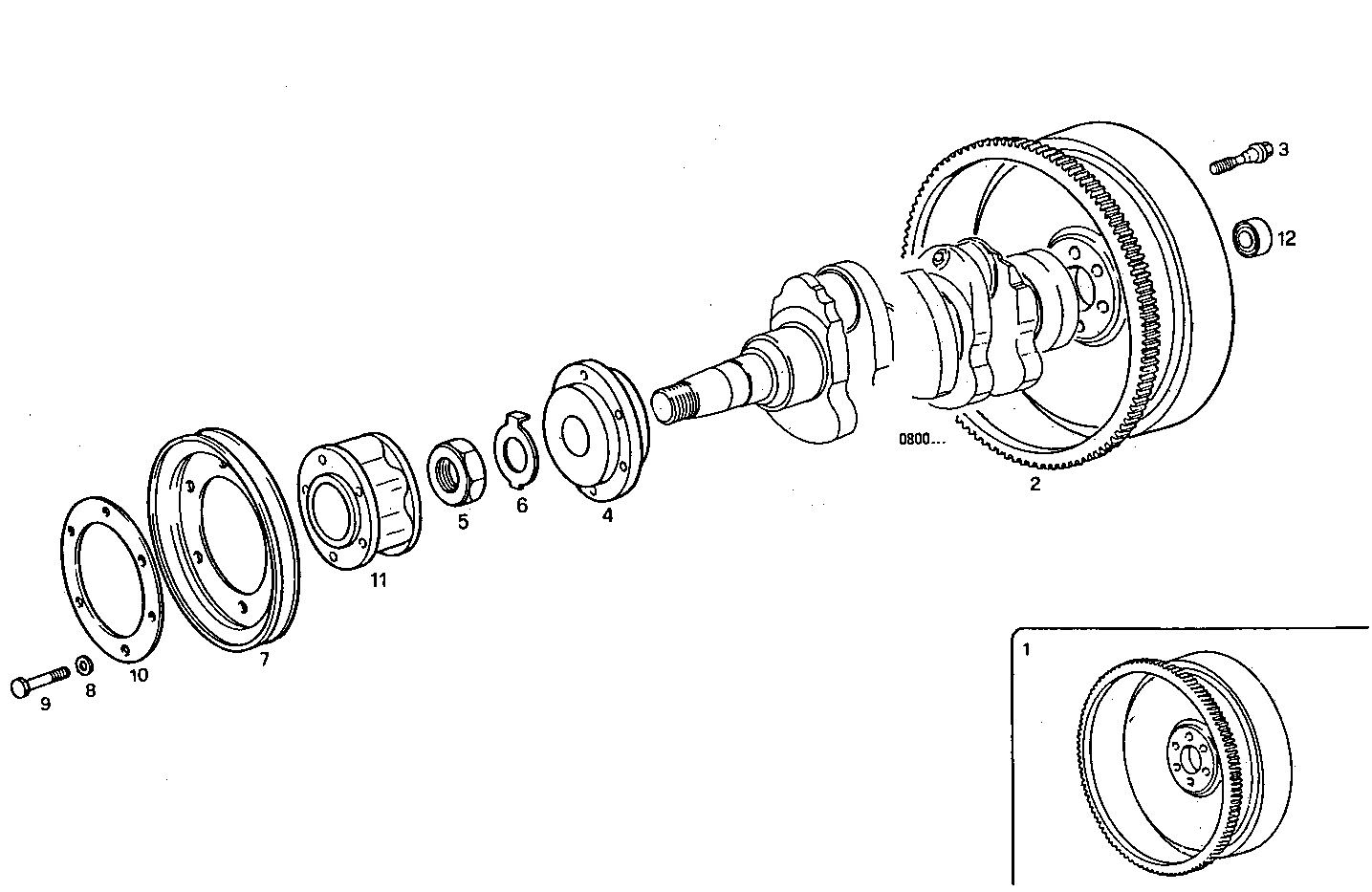

0830.095 ENGINE FLYWHEEL - DAMPER
| Item | Part number | Description |
|---|---|---|
| 1 | 8019597 | FLYWHEEL ASSY |
| 2 | 4862411 | RING GEAR |
| 3 | 4779122 | HEXAGON BOLT |
| 4 | 4655847 | HUB |
| 5 | 4600189 | NUT |
| 6 | 4600190 | LOCKING PLATE |
| 7 | 4792151 | CRANKSHAFT PULLEY |
| 8 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 9 | 98402354 | HEXAGON BOLT M10X1,25 |
| 10 | 4601574 | WASHER |
| 11 | 4619438 | HUB |
| 12 | 28043280 | DRIVE BEARING |
