8041C05.06A018

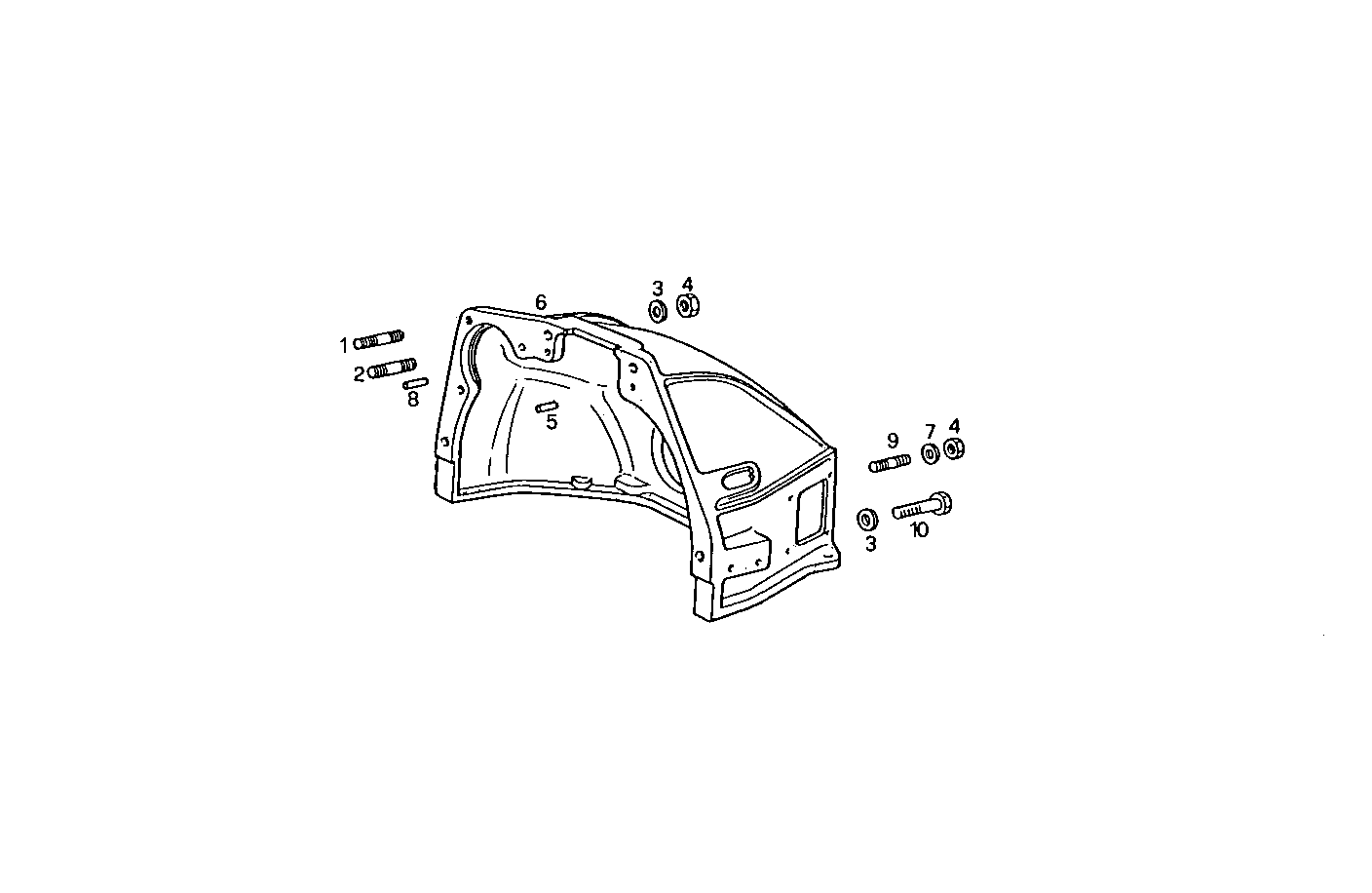

5200.004 CLUTCH
| Item | Part number | Description |
|---|---|---|
| 1 | 16731224 | STUD M10X25 MM |
| 2 | 16735624 | STUD |
| 3 | 17095504 | WASHER Ø14X28 MM |
| 4 | 17037821 | HEXAGON NUT M6X1 |
| 5 | 8813445 | DOWEL PIN |
| 6 | 8019675 | CLUTCH HOUSING |
| 7 | 17091974 | SPRING WASHER Ø14X32 MM SP=3,4 MM |
| 8 | 4647524 | DOWEL PIN |
| 9 | 16735424 | STUD M14X2X20X40 |
| 10 | 16613720 | SCREW |
