8041C05.06A019

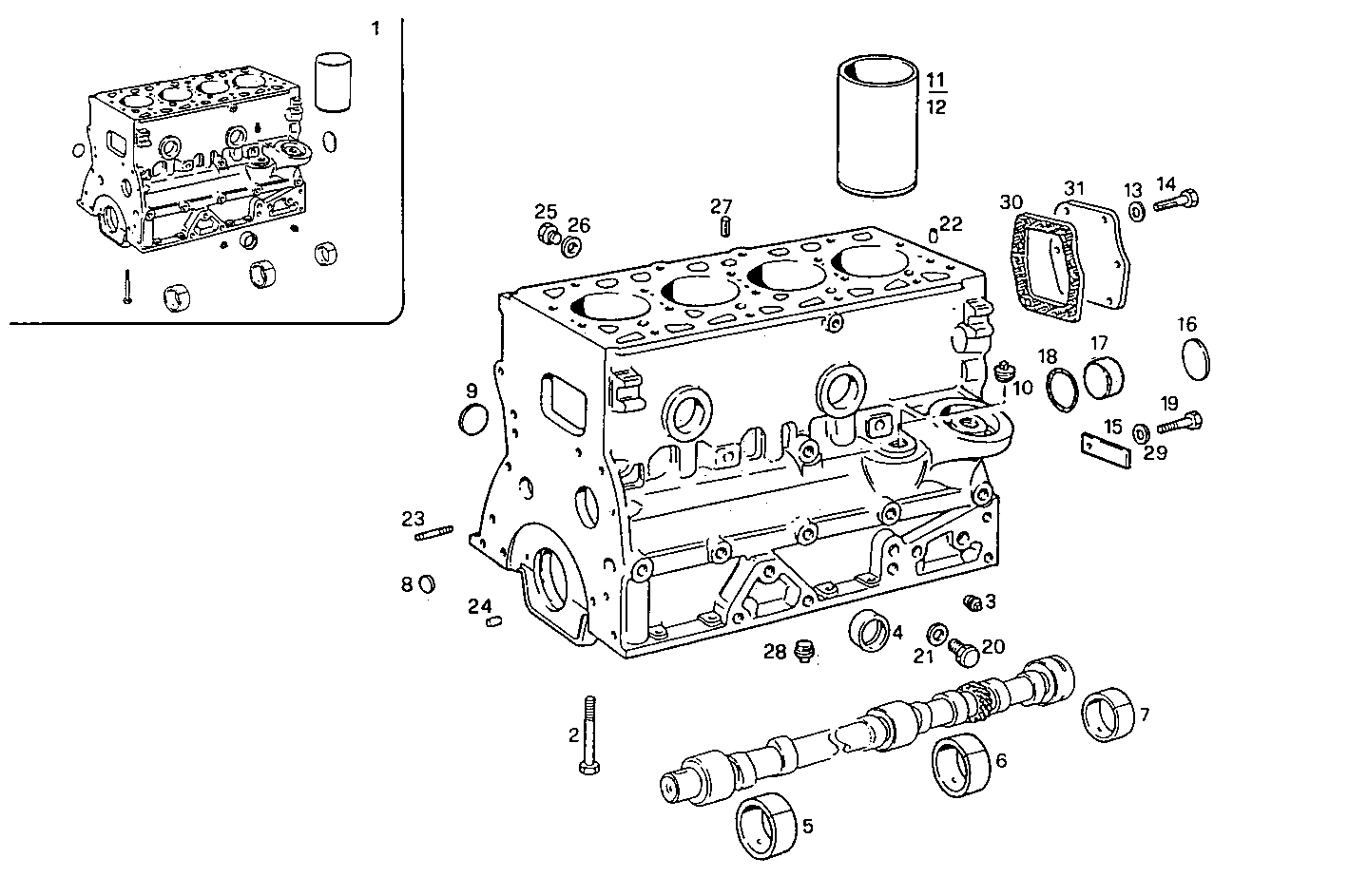

0400.019 CRANKCASE

Iveco/FPT CRANKCASE

Item Part number Description
1 98444091 CRANKCASE ASSY
2 4792169 SCREW
3 99434231 THREADED PLUG M10X1,25
4 14329901 LOCK PLUG Ø40 MM
5 4603449 CAMSHAFT BEARING MOGUL
6 4603450 CAMSHAFT BEARING CLEVITE
7 4603451 CAMSHAFT BEARING MOGUL
8 14328501 LOCK PLUG Ø16 MM
9 14282770 LOCK PLUG Ø36 MM
10 14323811 LOCK PLUG Ø20 MM SP=1,5 MM
11 4770623 CYLINDER LINER
12 4770624 CYLINDERLINER +0.2
13 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
14 16043324 HEXAGON BOLT M8X18 MM
15 98443528 LOCKING PLATE
16 10160701 LOCK PLUG Ø60 MM [up to ...]
17 98412737 LOCK PLUG [from ...]
18 17284481 O-RING Ø58,4 MM SP=2,6 MM [from ...]
19 15853221 HEXAGON BOLT
20 98415314 THREADED PLUG M22X1,5
21 10263460 WASHER Ø22X28X1,5 MM
22 4846850 DOWEL PIN
23 13517824 STUD M8x12x60 MM
24 17275410 DOWEL PIN Ø8 MM
25 4665029 LOCK PLUG M42X1,5
26 10265460 SEAL GASKET Ø42X49 MM SP=1,5 MM
27 17254970 DOWEL PIN Ø5 MM
28 16997411 THREADED PLUG M16X1,5
29 16665614 WASHER Ø10,5 MM
30 99445564 FLAT ENGINE GASKET SP=1,5 MM
31 4653282 REAR C.CASE COVER
