8041C05.06A019

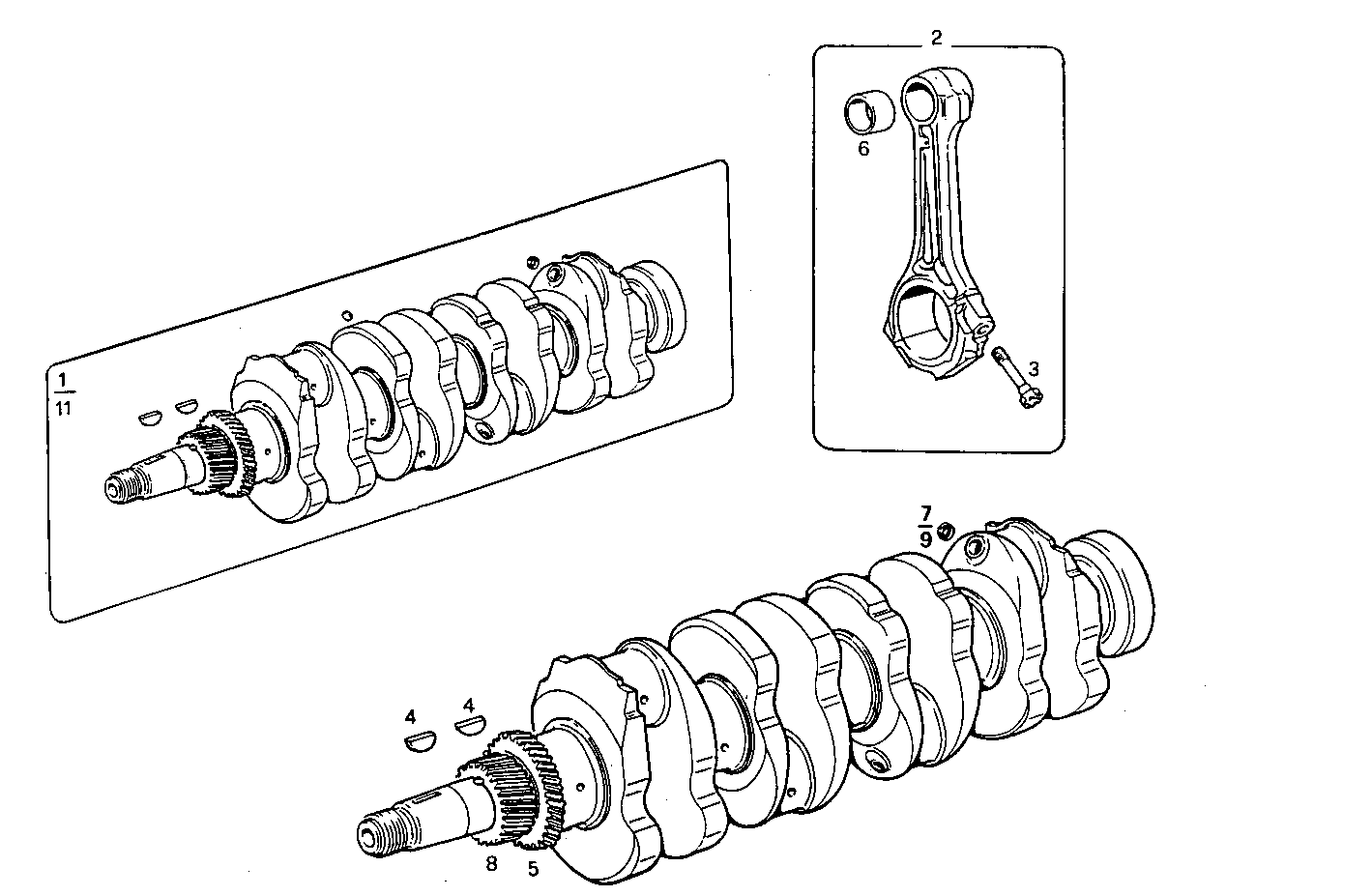

0800.002 CRANK SHAFT - CONNECTING RODS
| Item | Part number | Description |
|---|---|---|
| 1 | 4818544 | CRANK SHAFT ASSY |
| 2 | 98461751 | CONN.ROD ASSY. ASSY |
| 3 | 4780627 | BIG-END BOLT |
| 4 | 4655844 | KEY |
| 5 | 4770255 | OIL PUMP DRIV.GEA |
| 6 | 98460411 | BIG-END BUSH |
| 7 | 14328101 | LOCK PLUG Ø8 MM |
| 8 | 4818545 | CAMSHAFT PINION |
| 9 | 16987501 | LOCK PLUG Ø7 MM |
| 11 | 98451527 | CRANK SHAFT ASSY |
