8041C05.06A019

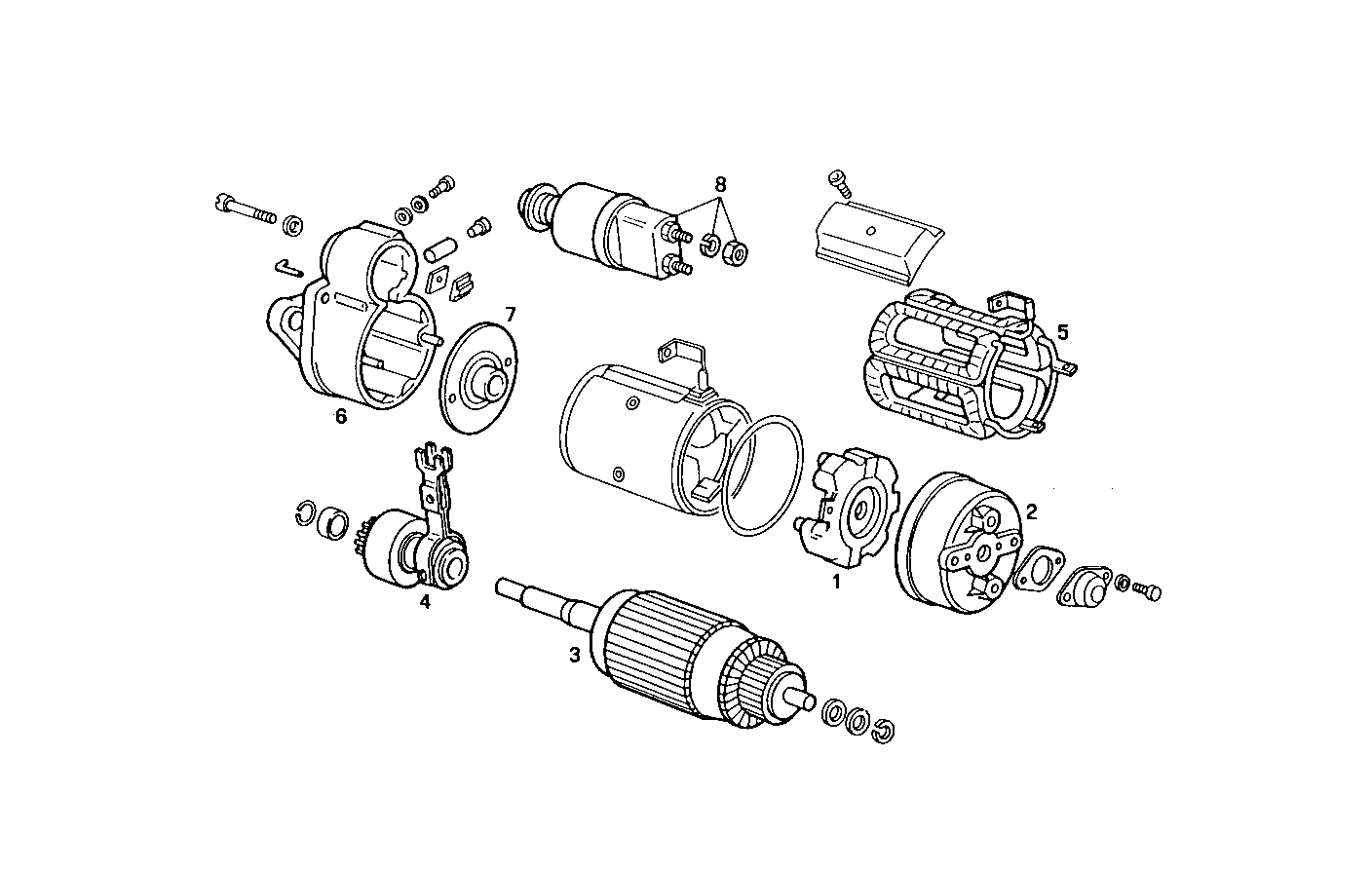

3630.002 STARTER MOTOR (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 9961529 | BRUSH HOLDER |
| 2 | 9961530 | COVER |
| 3 | 9961531 | STARTER ARMATURE |
| 4 | 9961532 | COUPLER |
| 5 | 9961533 | STARTER WINDING |
| 6 | 9961547 | SUPPORT |
| 7 | 9927795 | STARTER SUPPORT ASSY |
| 8 | 79036683 | SOLENOID ASSY |
