8041i05.00

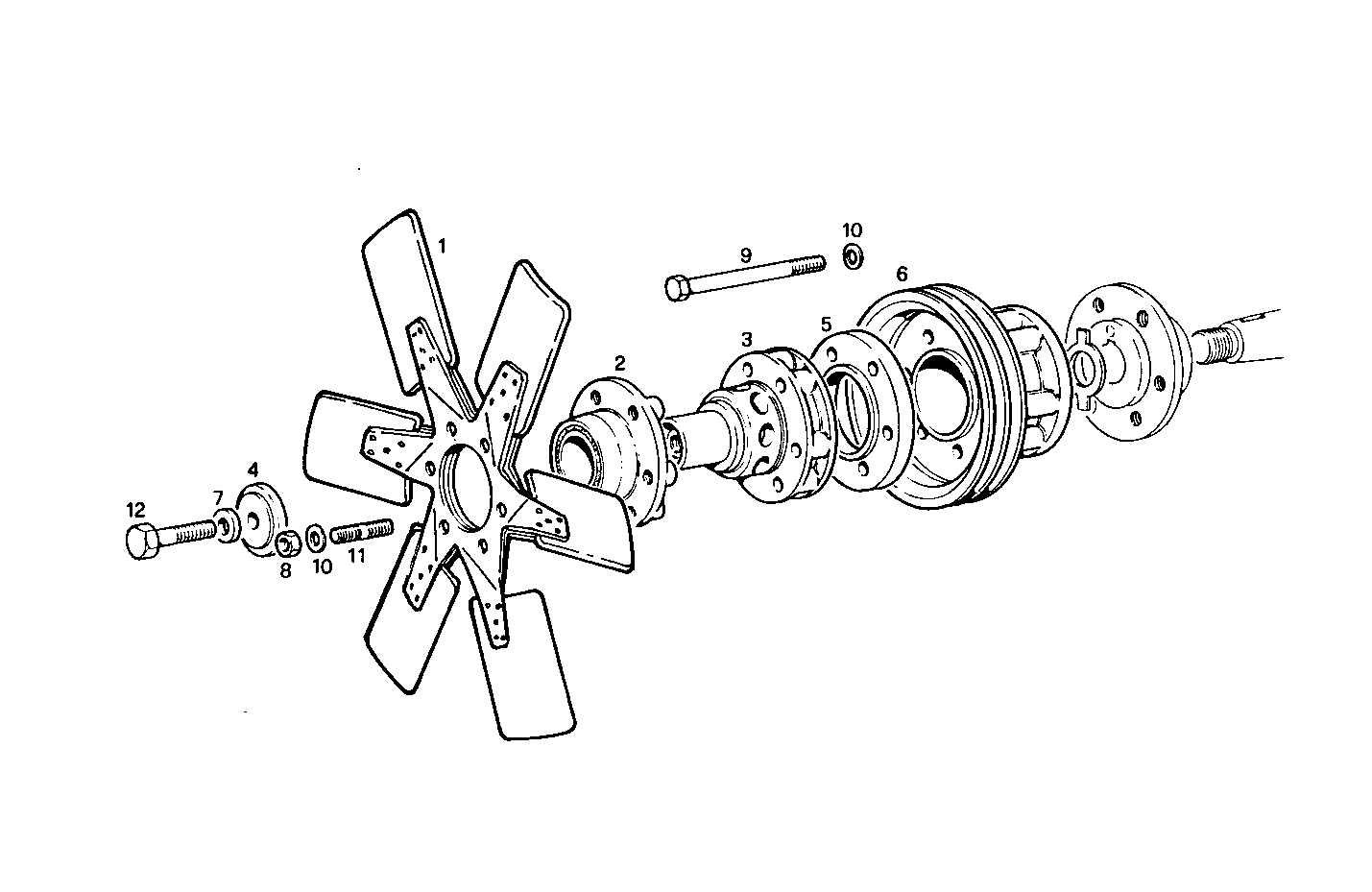

A08030009 OVERSIZE PULLER FAN - on engine axis
| Item | Part number | Description |
|---|---|---|
| 1 | 8114162 | FAN Ø510 MM |
| 2 | 8110889 | FLEXIBLE COUPLING |
| 3 | 4772997 | HUB |
| 4 | 4791015 | WASHER |
| 5 | 8105671 | SPACING BAR |
| 6 | 8105670 | PULLEY |
| 7 | 11200279 | SPRING WASHER Ø17 MM |
| 8 | 12165711 | NUT |
| 9 | 15971921 | HEXAGON BOLT M10X105 MM |
| 10 | 11198379 | SPRING WASHER Ø10X20 MM SP=2,6 |
| 11 | 13546121 | STUD M10X1,25X20 MM |
| 12 | 15981121 | HEXAGON BOLT M16X60 MM |
