8041i05.00

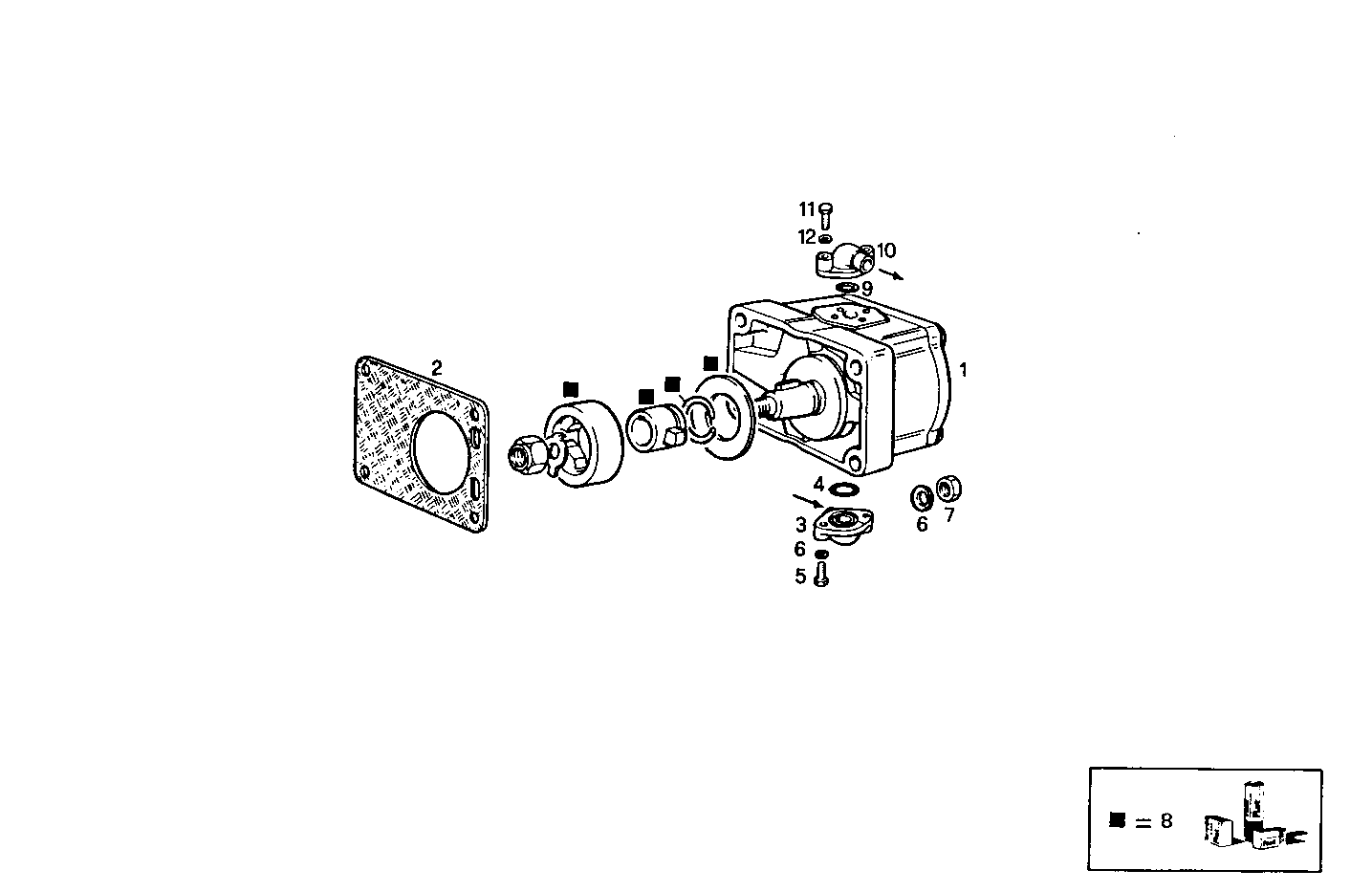

A09030001 FRONT HYDRAULIC PUMP
Item | Part number | Description |
---|---|---|
1 | 5129481 | OIL PUMP-STEERING ASSY |
2 | 4850986 | FLAT ENGINE GASKET |
3 | 4670953 | PIPE SOCKET |
4 | 14457280 | O-RING Ø2,62X15,54 MM |
5 | 14305521 | SCREW M6X30 |
6 | 11197771 | SPRING WASHER Ø6X12 MM SP=1,2 MM |
7 | 17037821 | HEXAGON NUT M6X1 |
8 | 8090343 | KIT-HYDRAULIC PUMP |
9 | 14457680 | O-RING Ø21,89 MM |
10 | 4690715 | PIPE SOCKET |
11 | 14306621 | SCREW M8X35 |
12 | 11193871 | WASHER Ø8X16X1,4 MM |
