A22020001 RADIATOR FOR SETTING TILL MAX POWER - high

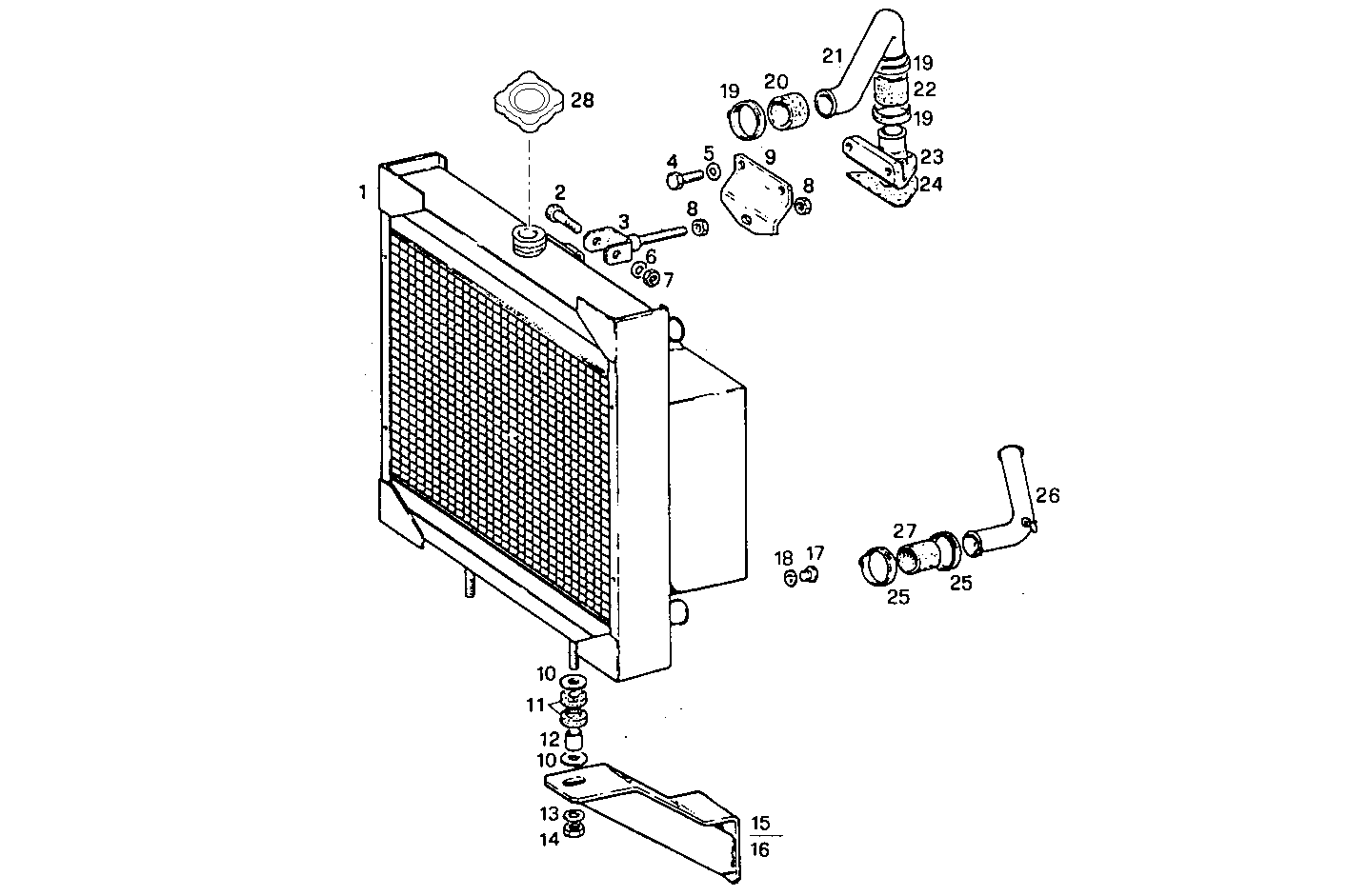

Iveco/FPT RADIATOR FOR SETTING TILL MAX POWER

Item Part number Description
1 8101691 WATER RADIATOR
2 11227021 HEXAGON BOLT M14X1,5X65 MM
3 8108105 TIE ROD
4 16043521 SCREW M8X22
5 11194079 SPRING WASHER Ø8X16 MM SP=1,9 MM
6 11194179 SPRING WASHER Ø15 MM
7 12164711 HEXAGON NUT M10X1,25
8 16101511 HEXAGON NUT M12X1,25
9 8104708 PLATE
10 741570 WASHER Ø10X17 MM SP=2,3
11 741569 RUBBER LUG
12 8108634 SPACING BAR
13 11198379 SPRING WASHER Ø10X20 MM SP=2,6
15 8108096 SUPPORT RIGHT
16 8108097 SUPPORT LEFT
17 8802992 RETAINER COCK
18 10278660 SEAL GASKET Ø16X22 MM SP=1 MM
19 17764792 HOSE CLIP Ø32-50 MM
20 4641232 WATER HOSE
21 8101749 WATER PIPE
22 4952453 WATER HOSE
23 8101449 WATER PIPE
24 4599809 FLAT ENGINE GASKET
25 17764992 CLIP Ø50-70 MM
26 8077105 WATER PIPE
27 4927830 RUBBER SLEEVE
28 4845408 PLUG 0,5 BAR [up to …]
