8041i05.05

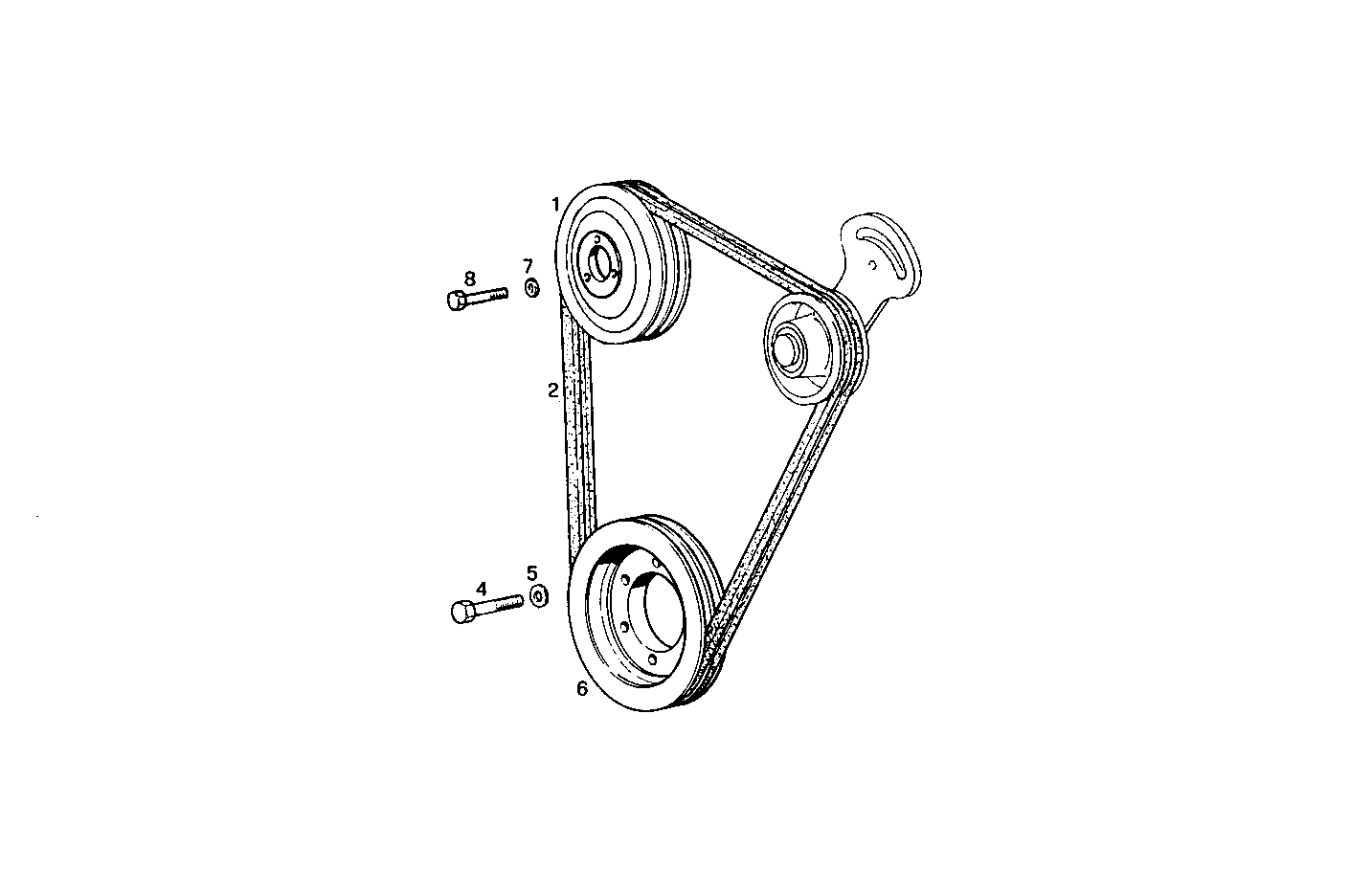

A12010004 FRONT DRIVE WITH 2 BELTS - with belt stretcher
Item | Part number | Description |
---|---|---|
1 | 4619286 | WATER PUMP PULLEY |
2 | 98473886 | SET OF V-BELTS L=1150 MM |
4 | 11288021 | HEXAGON BOLT M10X1,25X60 MM |
5 | 11190574 | WASHER Ø10X20X2,3 MM |
6 | 4668646 | PULLEY REAR |
7 | 11193874 | WASHER Ø8X16 MM |
8 | 16043624 | SCREW M8X25 |
