Catalogue Menu
8041i05.05

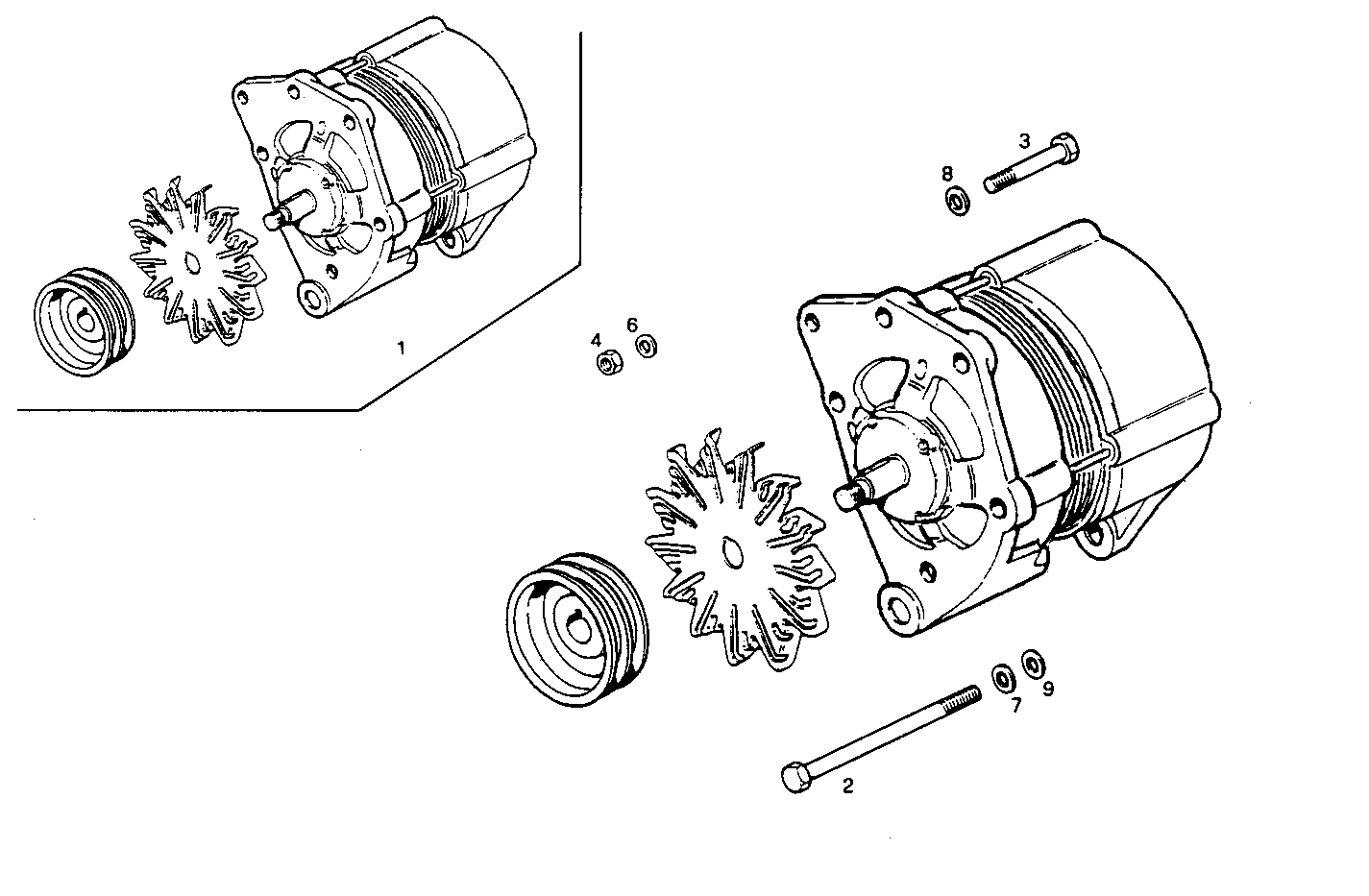

A14120023 SELF-REGULATED ALTERNATOR - 24V 55A
| Item | Part number | Description |
|---|---|---|
| 1 | 4795332 | ALTERNATOR ASSY |
| 2 | 15541921 | HEXAGON BOLT M12X1,25X130 MM |
| 3 | 11306921 | SCREW M10X1,25X30 |
| 4 | 17038221 | HEXAGON NUT M10 |
| 6 | 17090174 | SPRING WASHER Ø10X20 MM |
| 7 | 17091074 | WASHER Ø12X24X2,8 MM |
| 8 | 17095104 | WASHER Ø10X21X2 MM |
| 9 | 17095304 | WASHER Ø12X24 MM |
