8041i05.05

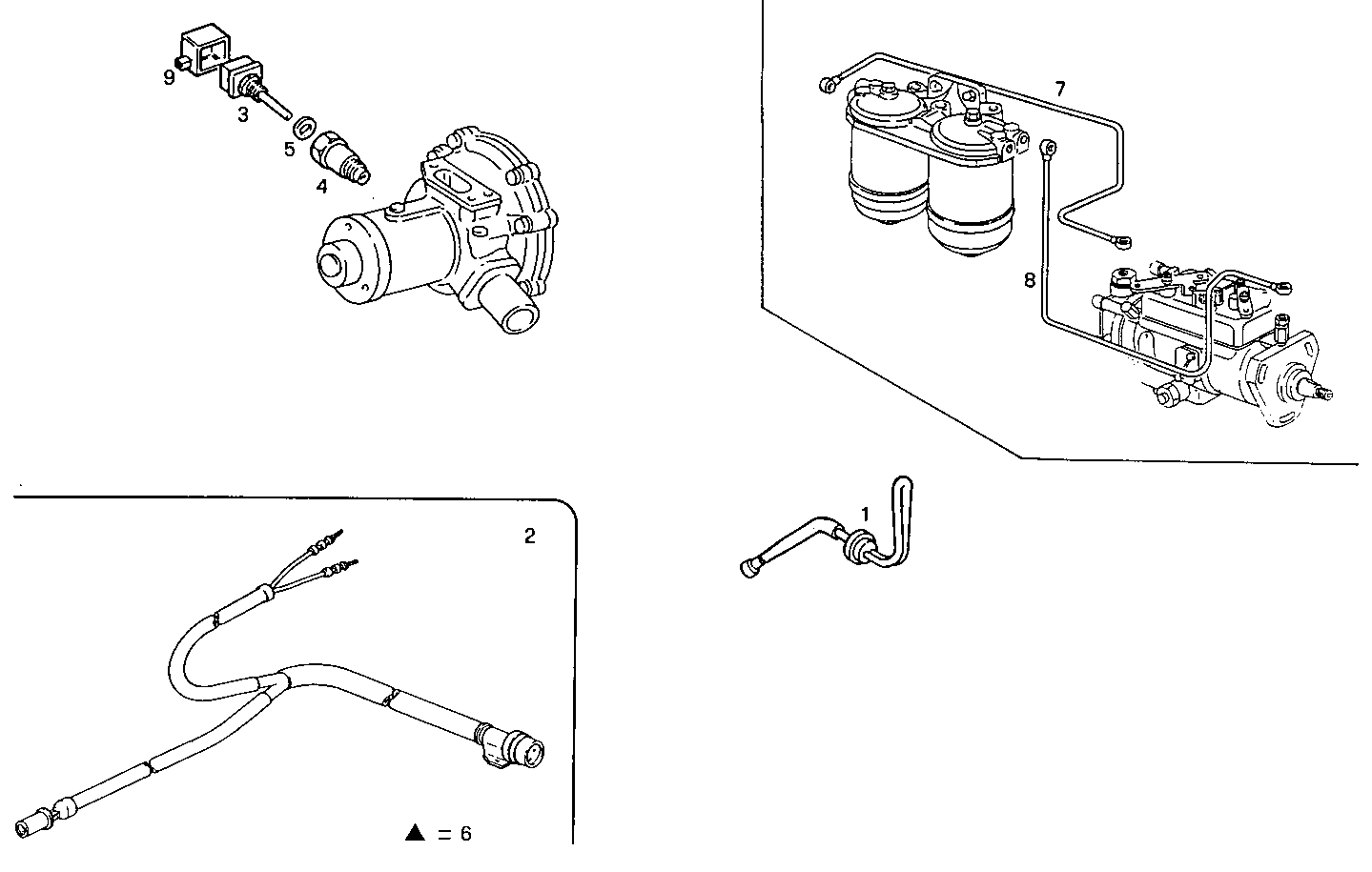

A20040056 WATER PREHEATER DEVICE - 220V [D 10-1996] [from10-1996]
| Item | Part number | Description |
|---|---|---|
| 1 | 8023335 | RESISTOR |
| 2 | 8023336 | ENGINE HARNESS |
| 3 | 8017120 | THERMOSTAT [from 10-93] |
| 4 | 8017119 | SPACING BAR [from 10-93] |
| 5 | 4858610 | WASHER Ø18X24 MM SP=1,5 MM |
| 6 | 8009376 | WIRE/CABLE ASSY |
| 7 | 8018669 | HOSE L=700 MM |
| 8 | 8018670 | HOSE L=550 MM |
| 9 | 8021565 | CAP |
