8041i05.05

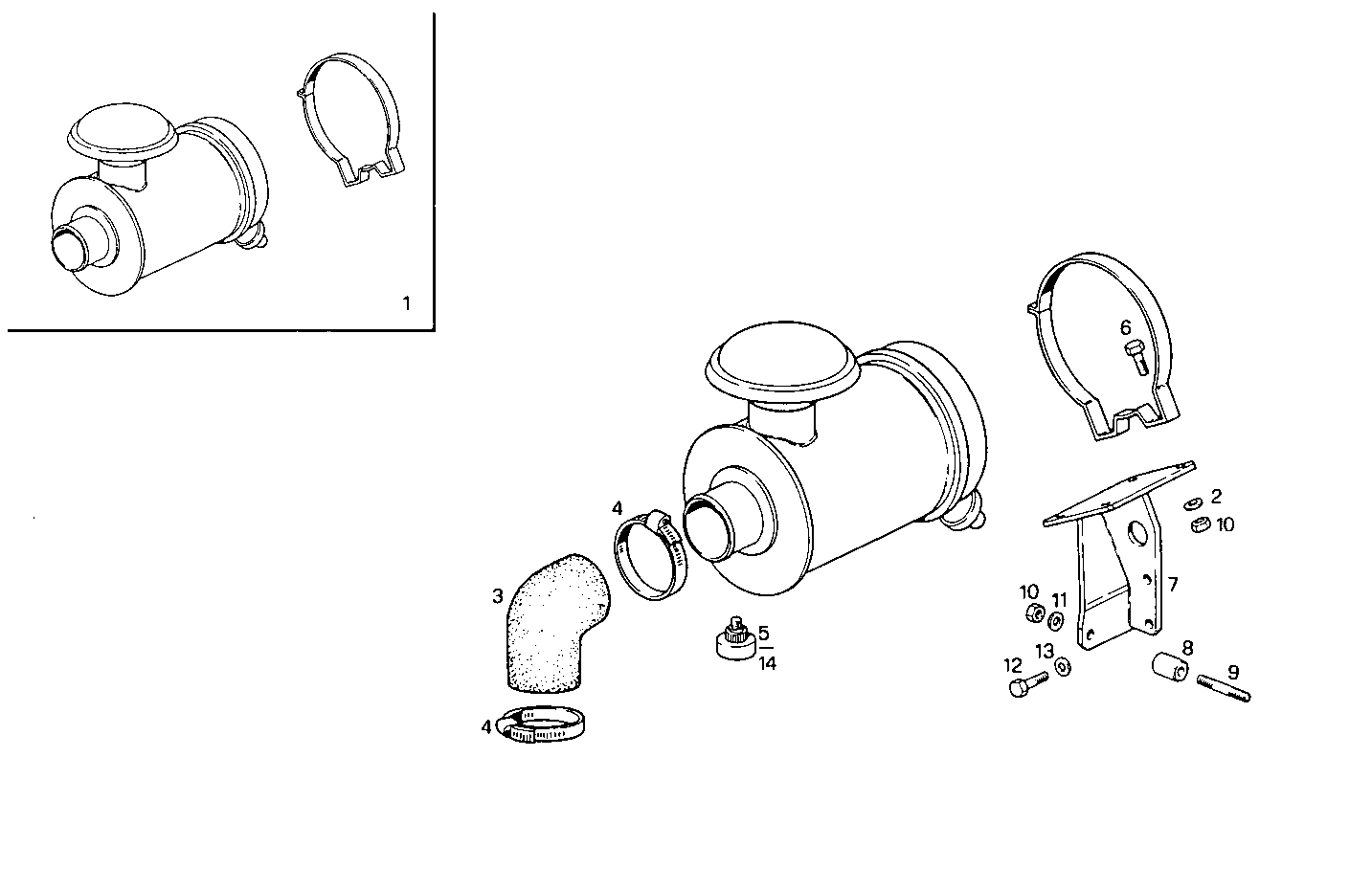

A21210003 DRY AIR CLEANER - with mechanical clogging gauge - genset
Item | Part number | Description |
---|---|---|
1 | 8013300 | AIR CLEANER ASSY |
2 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
3 | 8102906 | RUBBER SLEEVE |
4 | 17765091 | CLIP Ø60/80 MM |
5 | 4936137 | CHOCKED FILTER INDIC. MECHANICAL |
6 | 16605524 | HEXAGON BOLT M8X20 MM |
7 | 8014393 | SUPPORT |
8 | 8104719 | SPACING BAR |
9 | 16729524 | STUD M8X1,25X30 |
10 | 17037931 | HEXAGON NUT M8X1,25 |
11 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
12 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
13 | 17090474 | SPRING WASHER Ø10X27 MM SP=2,5 |
14 | 8022540 | CHOCKED FILTER INDIC. MECHANICAL |
