8041i05.05A800

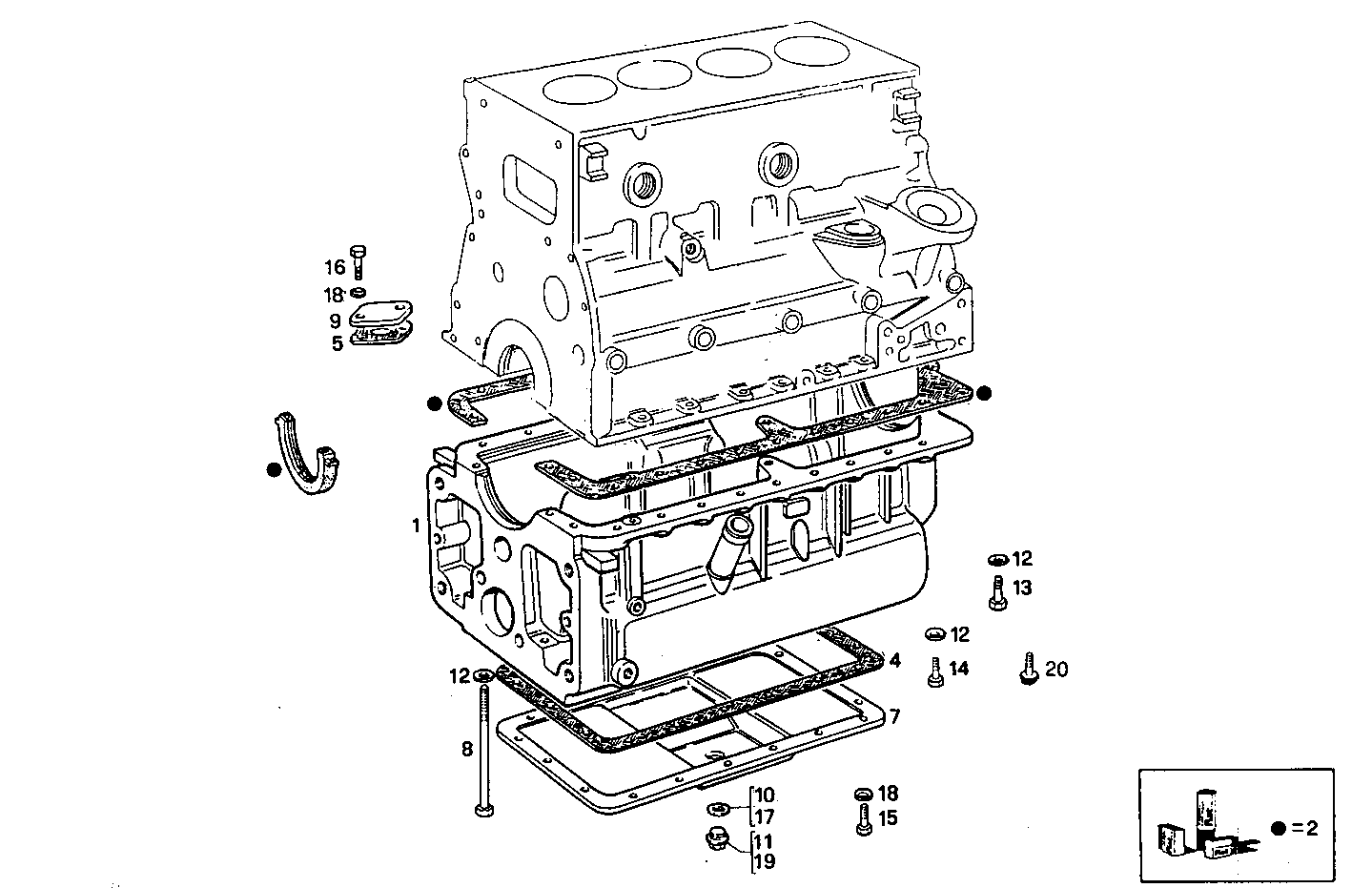

0420.035 OIL SUMP

Iveco/FPT OIL SUMP

Item Part number Description
1 4838535 OIL SUMP ASSY
2 1940012 KIT-OILSUMP GASKET
4 98427452 FLAT ENGINE GASKET
5 98401047 GASKET
7 98413424 COVER
8 4607933 SCREW M10X1,25X262 MM
9 4793218 COVER
10 10263460 WASHER Ø22X28X1,5 MM
11 4847102 THREADED PLUG
12 10516879 WASHER Ø10X18X2 MM
13 11306924 HEXAGON BOLT M10X1,25X30 MM
14 11307024 SCREW M10X1,25X40 MM
15 16043324 HEXAGON BOLT M8X18 MM
16 16605524 HEXAGON BOLT M8X20 MM
17 17282181 O-RING Ø21,8 MM SP=2,6 MM
18 11193874 WASHER Ø8X16 MM
19 10305171 PLUG M22X1,5
20 4686762 HEXAGON BOLT M10X1,25X30
