8041i05.55

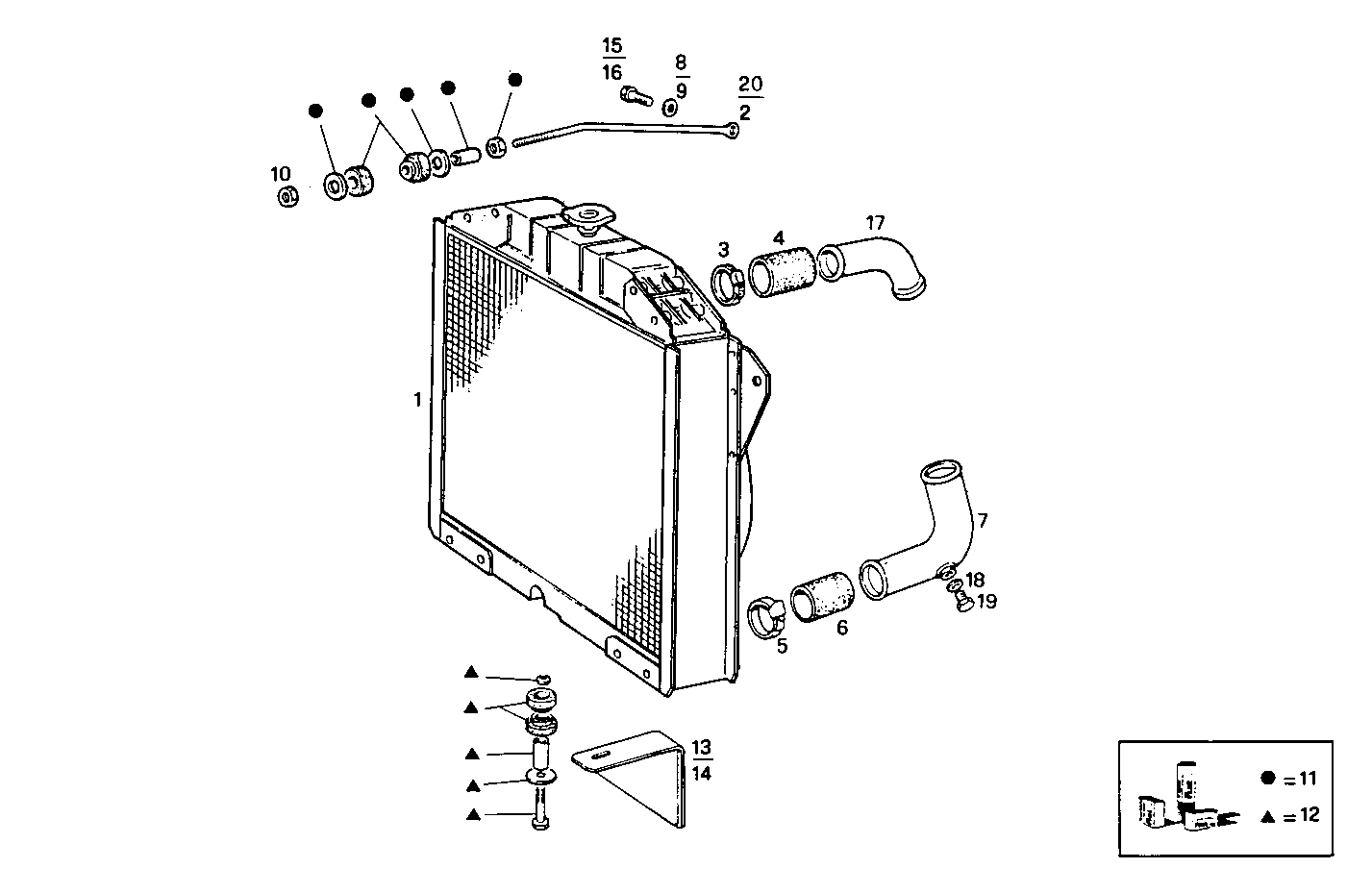

A22010030 RADIATOR FOR SETTING TILL MAX POWER - if compressor fitted

Iveco/FPT RADIATOR FOR SETTING TILL MAX POWER

Item Part number Description
1 8009087 WATER RADIATOR ASSY
2 8009203 TIE ROD LEFT
3 17764891 CLIP Ø40/60 MM
4 4787630 RUBBER SLEEVE
5 17764791 CLIP Ø32/50 MM
6 17742887 RUBBER SLEEVE
7 8009199 WATER PIPE
8 11193874 WASHER Ø8X16 MM
9 98415215 WASHER Ø10X20X2,3 MM
10 17038221 HEXAGON NUT M10
11 8090413 KIT-RADIATOR A.S. COMPLETE
12 8090341 KIT-RADIATOR A.S. COMPLETE
13 8009201 SUPPORT RIGHT
14 8009200 SUPPORT LEFT
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 4854882 SCREW M8X1,25X45 MM
17 8009198 WATER PIPE
18 4858606 GASKET Ø10X14X1 MM
19 16992111 THREADED PLUG M10X1
20 8009202 TIE ROD RIGHT
