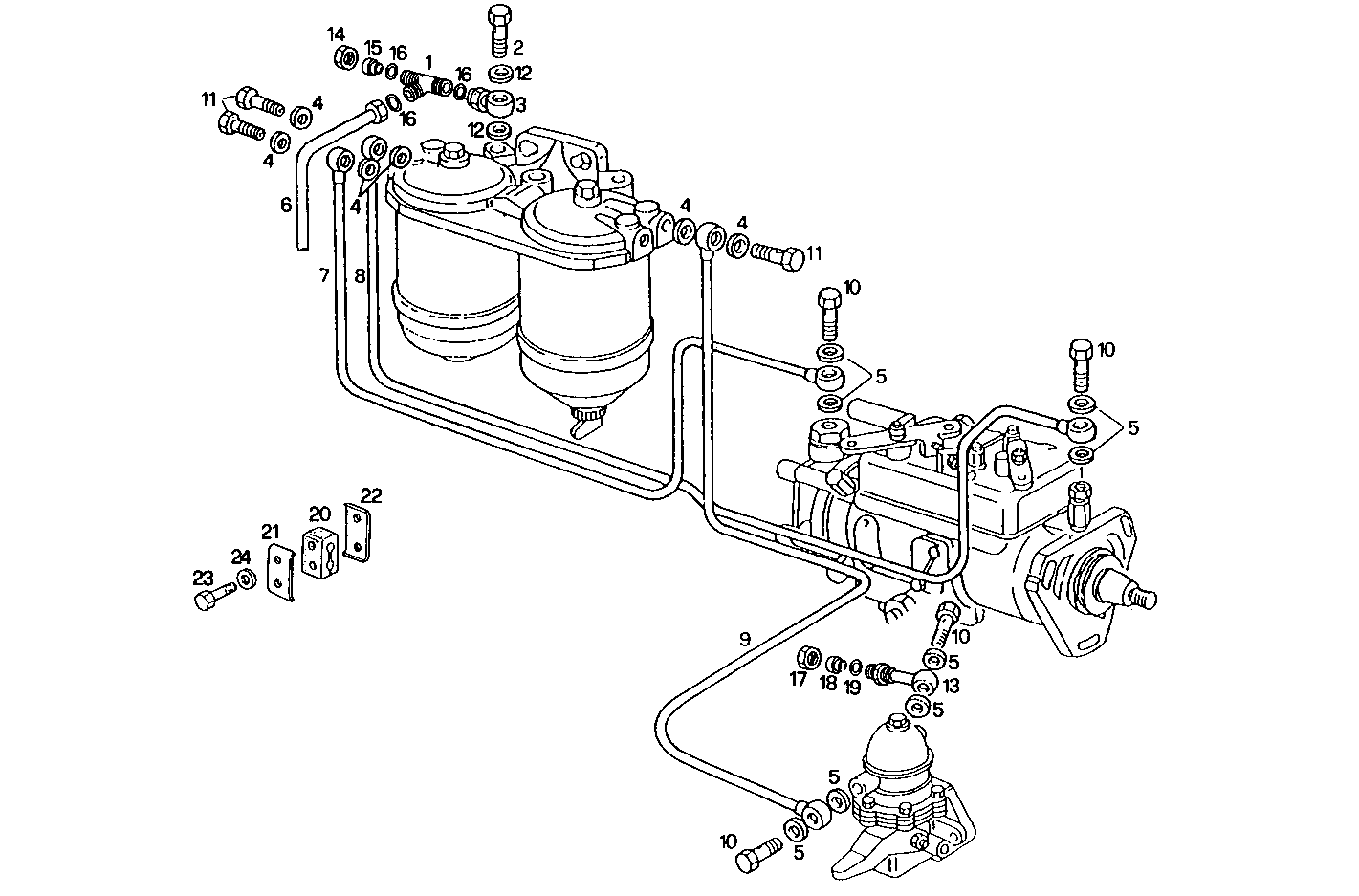

Item |
Part number |
Description |
1 |
16505114 |
T-COUPLING |
2 |
98417535 |
SCREW CONNECTOR |
3 |
8029443 |
PIPE SOCKET |
4 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
5 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
6 |
8029444 |
FUEL LINE |
7 |
8029441 |
FUEL LINE |
8 |
8029442 |
FUEL LINE |
9 |
8029440 |
FUEL LINE |
10 |
4864082 |
BANJO BOLT M12X1,5X25 MM |
11 |
4864083 |
SCREW CONNECTOR M14X1,5X30 MM |
12 |
4858606 |
GASKET Ø10X14X1 MM |
13 |
8029417 |
BANJO COUPLING |
14 |
16506711 |
UNION NUT |
15 |
16507411 |
WASHER |
16 |
8024645 |
O-RING Ø4 MM |
17 |
16506811 |
NUT |
18 |
16507511 |
WASHER |
19 |
8024646 |
O-RING Ø6 MM |
20 |
4659220 |
DOWEL |
21 |
4659221 |
CLIP |
22 |
4659222 |
CLAMP |
23 |
16602324 |
HEXAGON BOLT M5X25 MM |
24 |
17101334 |
SPRING WASHER Ø5 MM |
