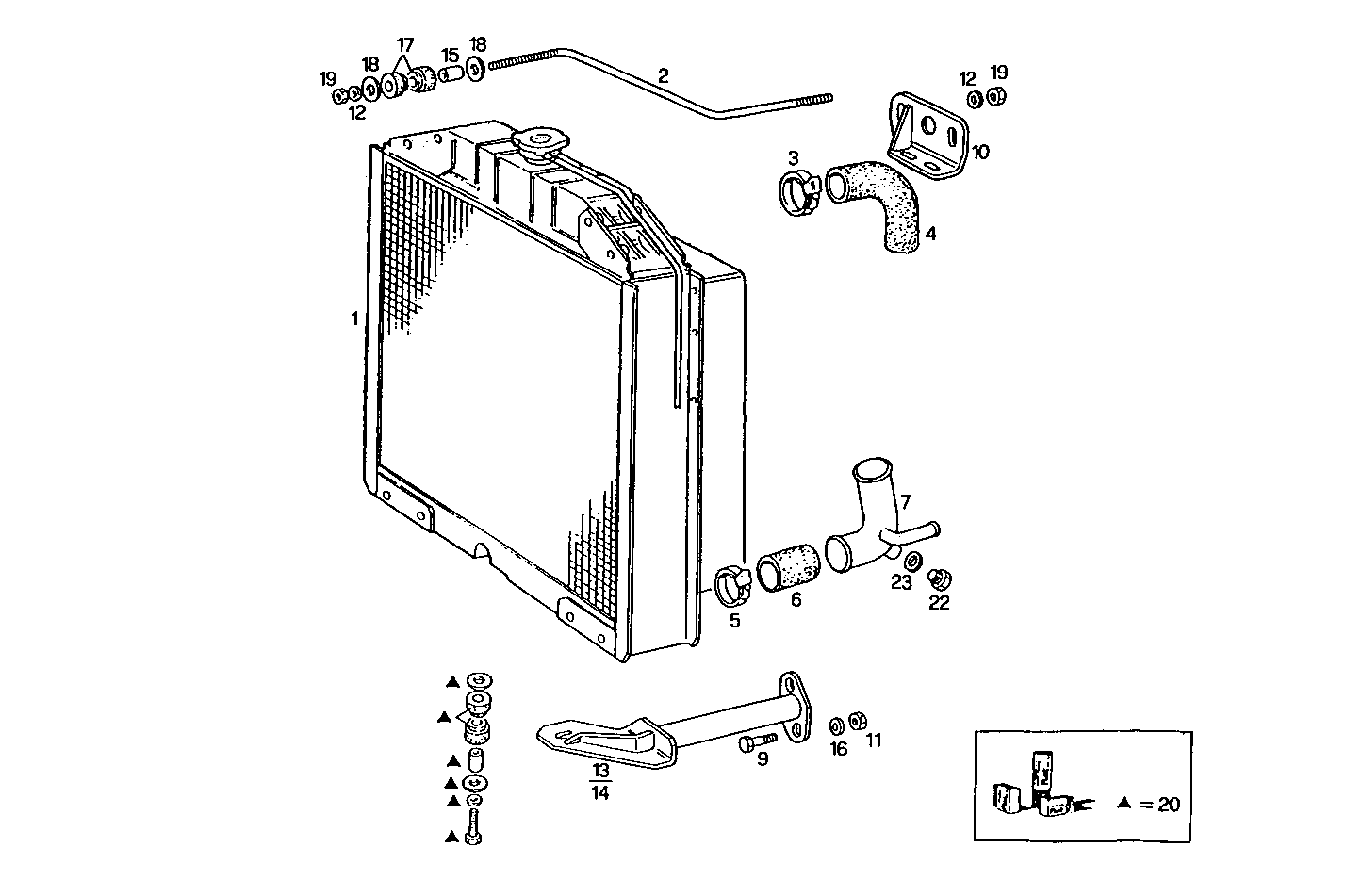

| Item |
Part number |
Description |
|
1 |
8008817 |
WATER RADIATOR ASSY |
|
2 |
8023988 |
TIE ROD |
|
3 |
17764891 |
CLIP Ø40/60 MM |
|
4 |
8026743 |
RUBBER SLEEVE |
|
5 |
17764791 |
CLIP Ø32/50 MM |
|
6 |
596152 |
RUBBER SLEEVE |
|
7 |
8108043 |
WATER PIPE |
|
9 |
16612224 |
HEXAGON BOLT M14X30 MM |
|
10 |
8023950 |
SUPPORT |
|
11 |
17038221 |
HEXAGON NUT M10 |
|
12 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
13 |
8023645 |
SUPPORT RIGHT |
|
14 |
8023644 |
SUPPORT LEFT |
|
15 |
8108634 |
SPACING BAR |
|
16 |
17091674 |
WASHER Ø14X27X3,0 MM |
|
17 |
741569 |
RUBBER LUG |
|
18 |
741570 |
WASHER Ø10X17 MM SP=2,3 |
|
19 |
17037931 |
HEXAGON NUT M8X1,25 |
|
20 |
8090341 |
KIT-RADIATOR A.S. COMPLETE |
|
22 |
16992411 |
THREADED PLUG M16X1,5 |
|
23 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
