8041i40.55

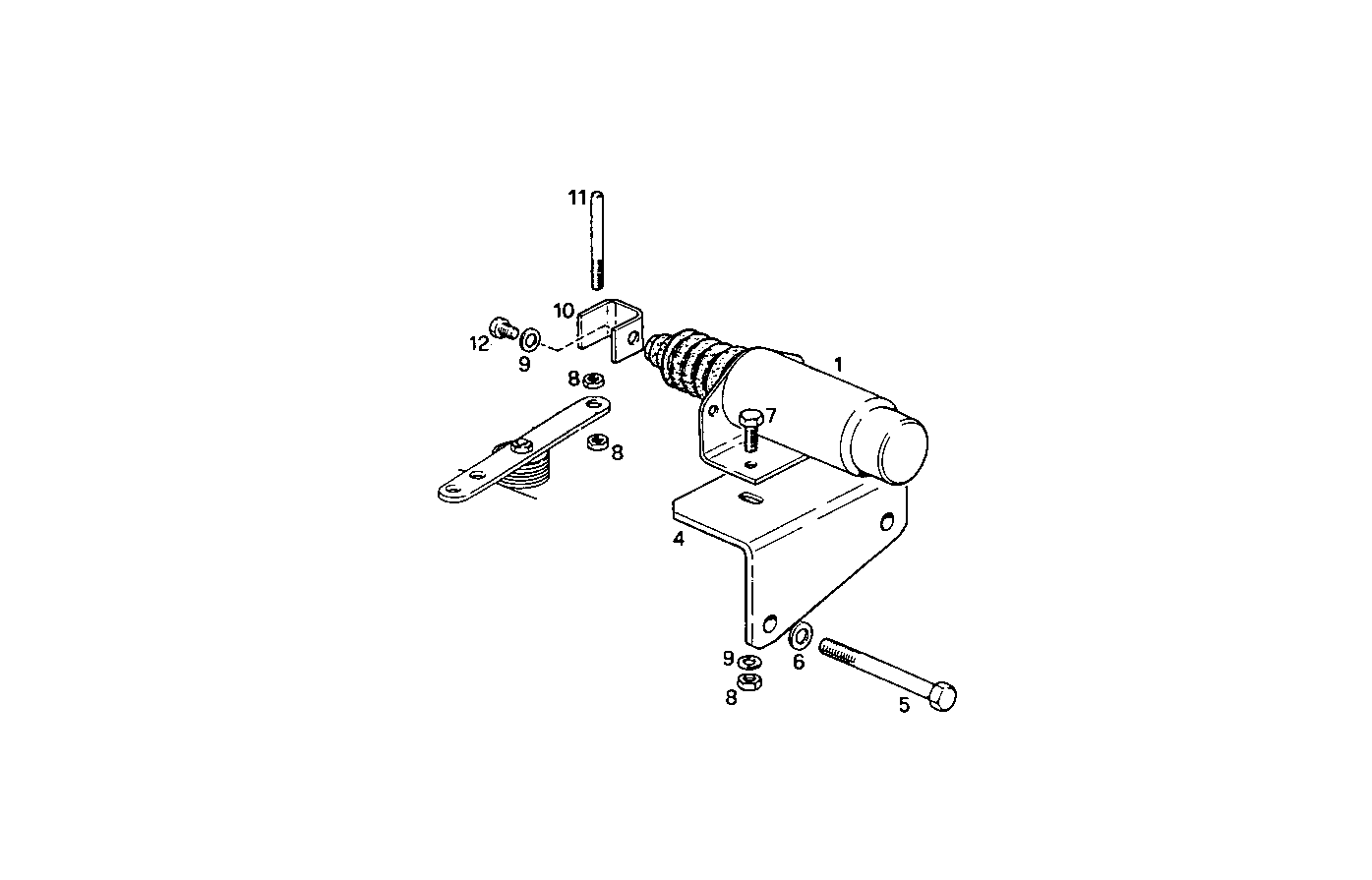

A38420044 STOP SOLENOID - ENERGIZE TO STOP - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8104921 | ELECTROVALVE ASSY |
| 4 | 8104918 | SUPPORT |
| 5 | 16044621 | HEXAGON BOLT M8X70 MM |
| 6 | 11193879 | SPRING WASHER Ø8X16 MM |
| 7 | 10902221 | HEXAGON BOLT M6X16 MM |
| 8 | 15896211 | HEXAGON NUT M6 |
| 9 | 11197779 | SPRING WASHER Ø6X12 MM |
| 10 | 8102657 | CLEVIS |
| 11 | 4935359 | PIN |
| 12 | 10902021 | HEXAGON BOLT M6X12 MM |
