8041M08.01

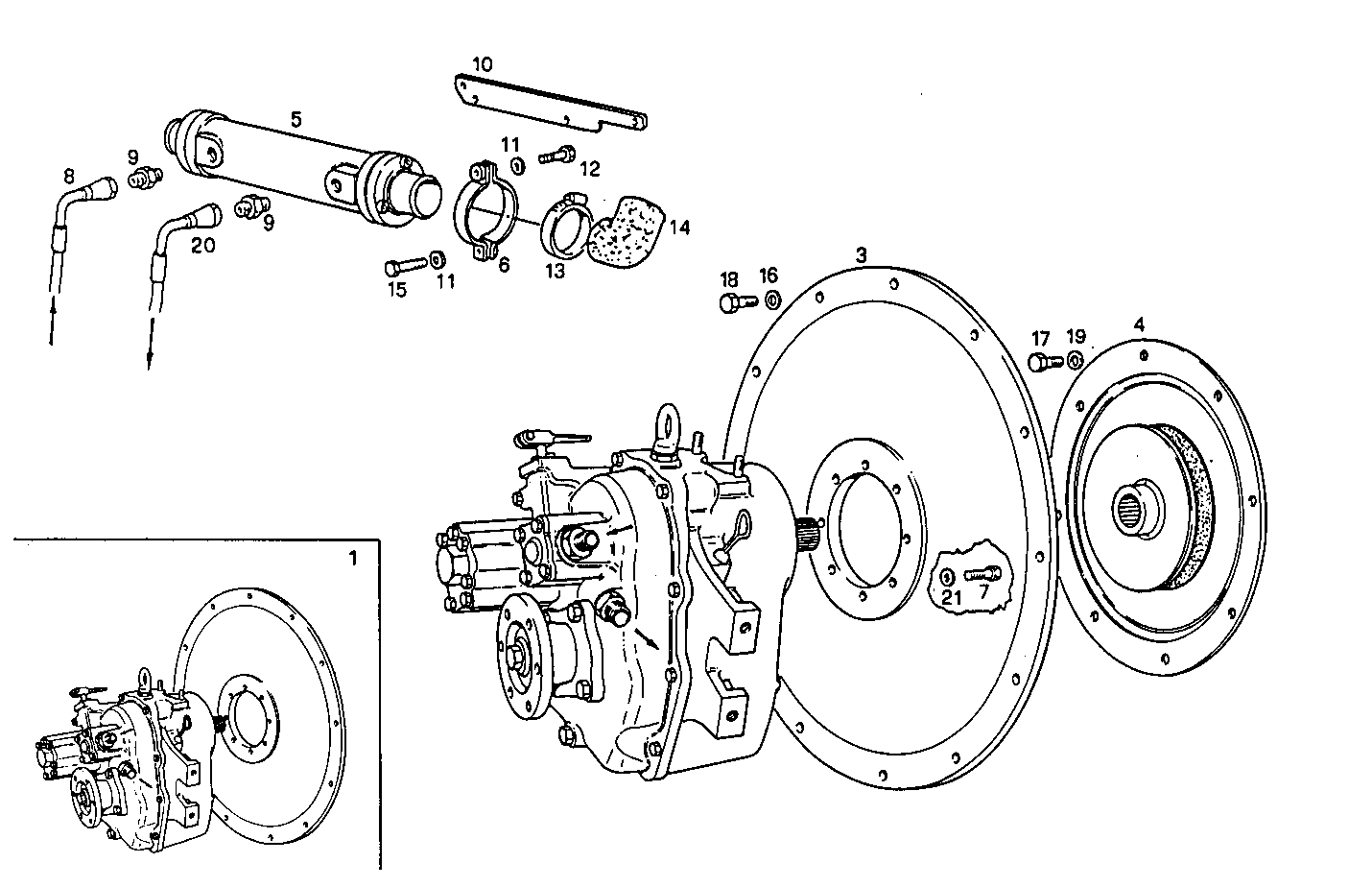

A51650019/01 MARINE GEAR TECHNODRIVE TM 93 - ratio 2.09:1 [D 04-1995] [from04-1995]

Iveco/FPT MARINE GEAR TECHNODRIVE TM 93

Item Part number Description
1 8015882 MARINE GEAR 2,09:1
3 8012407 COUPLING BELL
4 8005350 FLEXPLATE
5 8016304 OIL/WATER HEAT EXCHANGER ASSY
6 5116798 CLIP ASSY [from 06-93]
7 16610024 SCREW M12X35
8 4935779 HOSE
9 8101073 PIPE SOCKET
10 8016558 RETAINER [from 07-93]
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 16605734 HEXAGON BOLT M8X30 MM
13 17764793 CLIP Ø32/50 MM
14 8102099 RUBBER SLEEVE
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 17090174 SPRING WASHER Ø10X20 MM
17 15970521 HEXAGON BOLT M10X20 MM
18 11306921 SCREW M10X1,25X30
19 10571879 WASHER
20 8105620 HOSE
21 17091074 WASHER Ø12X24X2,8 MM
