8041M08.01

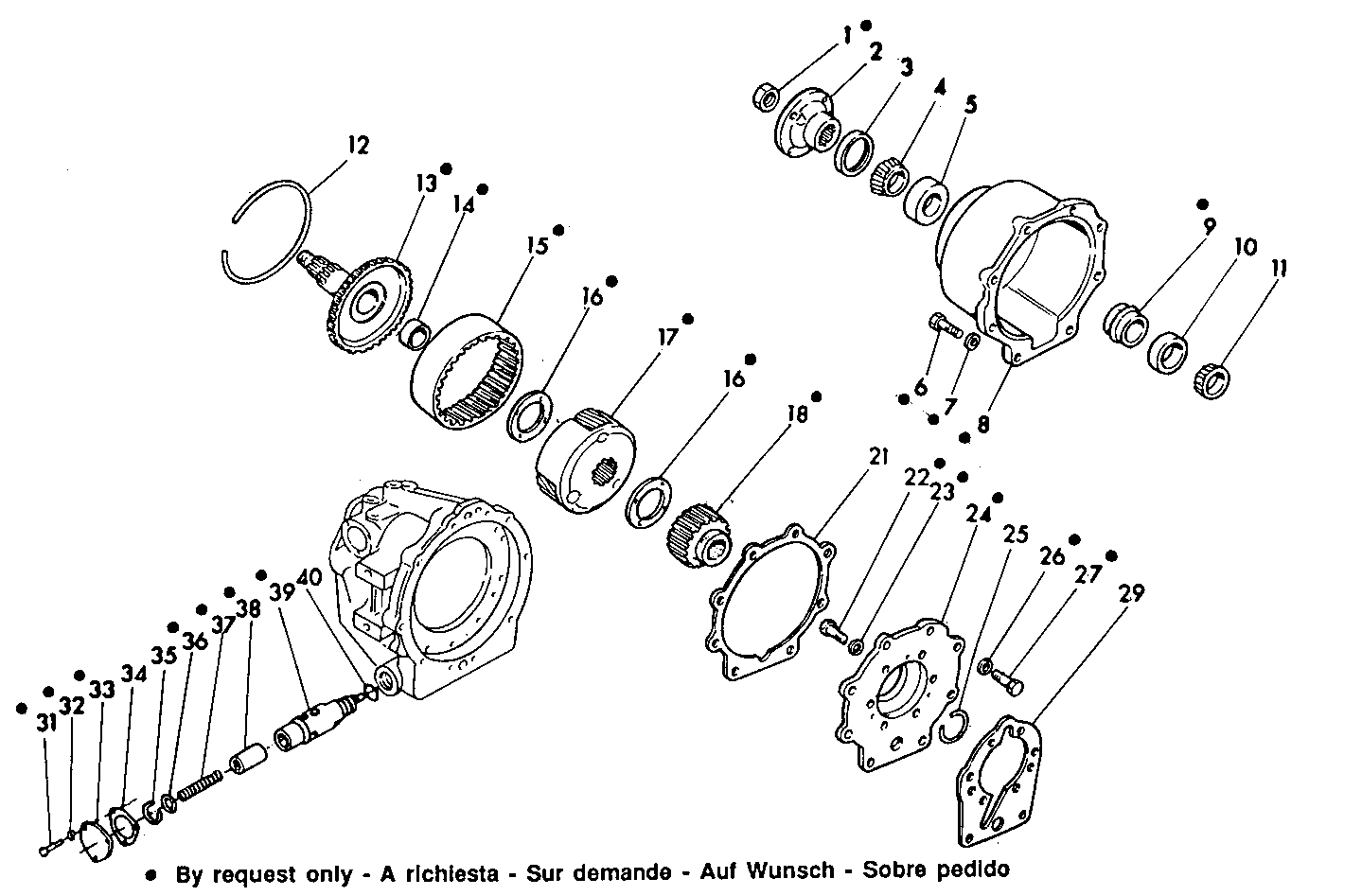

T5101004/01 MARINE GEAR - (components)

Iveco/FPT MARINE GEAR

Item Part number Description
2 8090747 FLANGE
3 8090663 WASHER
4 8090656 DRIVE BEARING
5 8090428 DRIVE BEARING
10 8090657 DRIVE BEARING
11 8090658 DRIVE BEARING
12 8090659 CIRCLIP 2,91:1
21 8090660 GASKET
25 8090661 CIRCLIP
29 8090662 GASKET
34 8090414 GASKET
35 8090429 CIRCLIP
40 8090430 O-RING
