8041M08.01

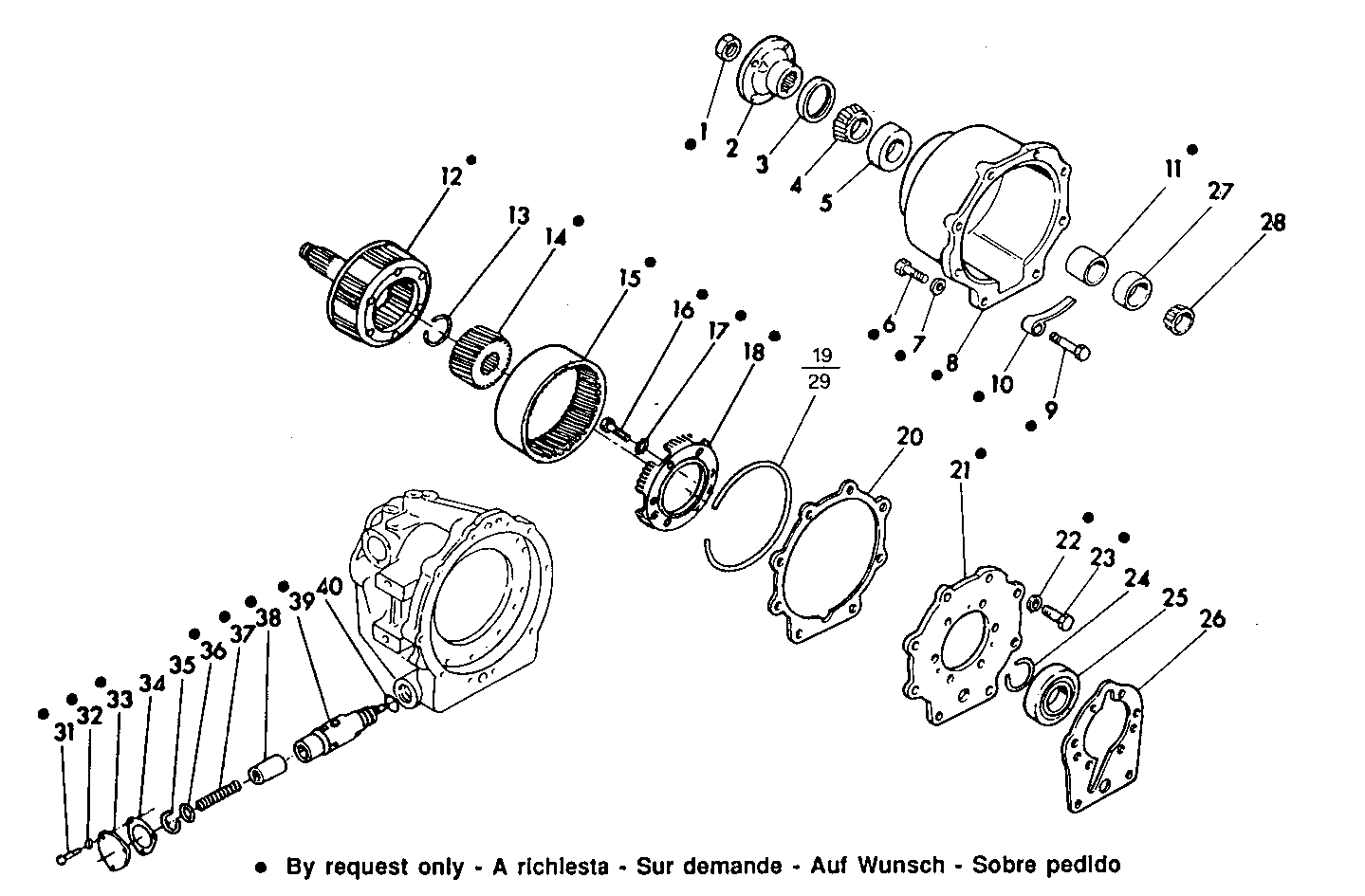

T5101005/01 MARINE GEAR - (components)
Item | Part number | Description |
---|---|---|
2 | 8090747 | FLANGE |
3 | 8090663 | WASHER |
4 | 8090656 | DRIVE BEARING |
5 | 8090428 | DRIVE BEARING |
13 | 8090670 | CIRCLIP |
19 | 8090659 | CIRCLIP 2,91:1 |
20 | 8090660 | GASKET |
24 | 8090676 | CIRCLIP |
25 | 8090677 | DRIVE BEARING |
26 | 8090662 | GASKET |
27 | 8090658 | DRIVE BEARING |
28 | 8090657 | DRIVE BEARING |
29 | 8090680 | CIRCLIP 2,57:1 |
34 | 8090414 | GASKET |
35 | 8090429 | CIRCLIP |
40 | 8090430 | O-RING |
