Catalogue Menu
8041M08.01

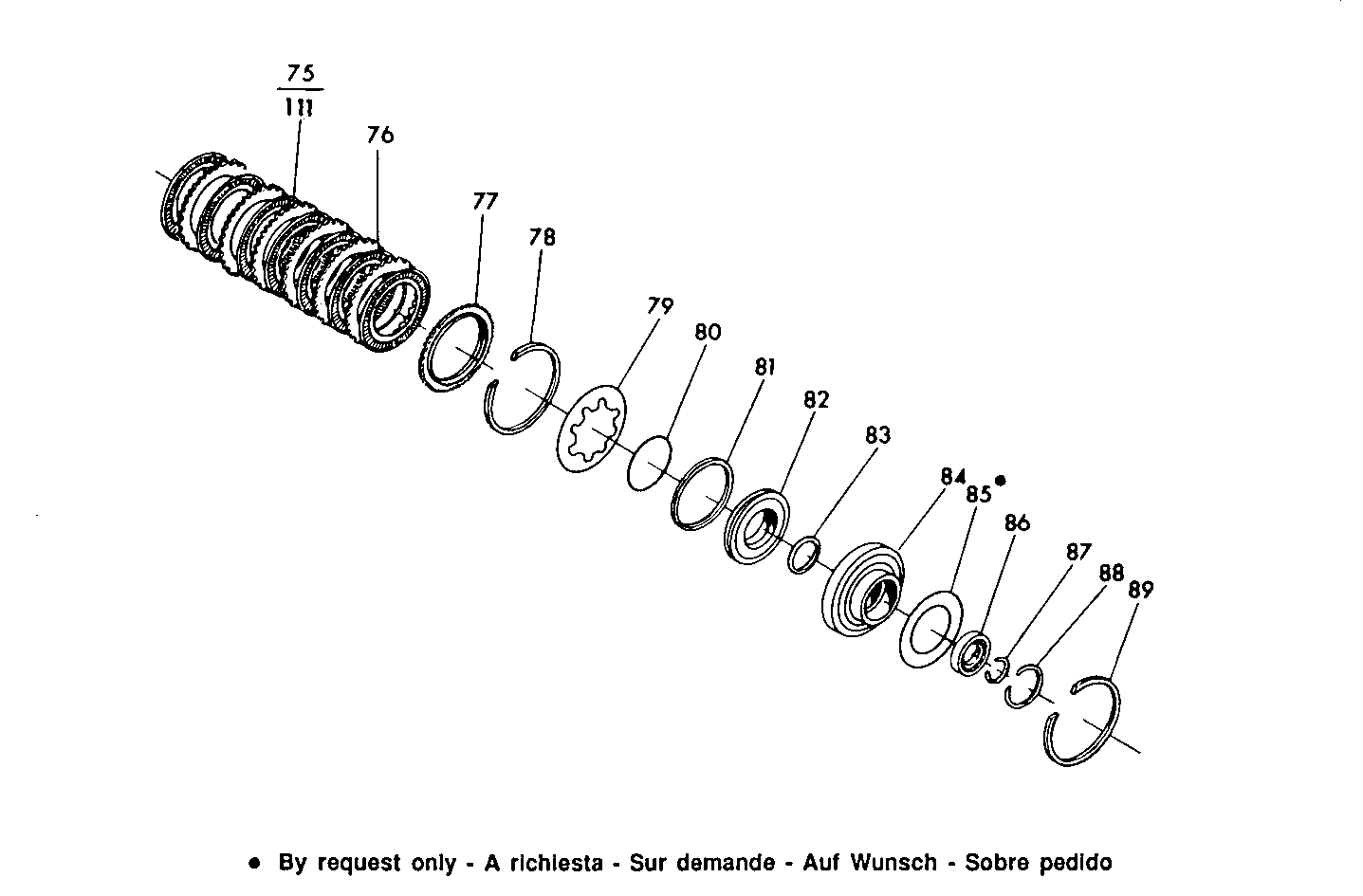

T5101005/04 MARINE GEAR - (components)
| Item | Part number | Description |
|---|---|---|
| 75 | 8090435 | CLUTCH DISC |
| 76 | 8090436 | RING STEEL |
| 77 | 8090434 | CLUTCH DISC |
| 78 | 8090438 | CIRCLIP |
| 79 | 8090417 | SPRING |
| 80 | 8090418 | CIRCLIP |
| 81 | 8090419 | CIRCLIP |
| 82 | 8090420 | RING |
| 83 | 8090421 | O-RING |
| 84 | 8090669 | RING |
| 86 | 8090439 | DRIVE BEARING |
| 87 | 8090670 | CIRCLIP |
| 88 | 8090671 | CIRCLIP |
| 89 | 8090442 | CIRCLIP |
| 111 | 8090682 | RING |
