8041M08.01

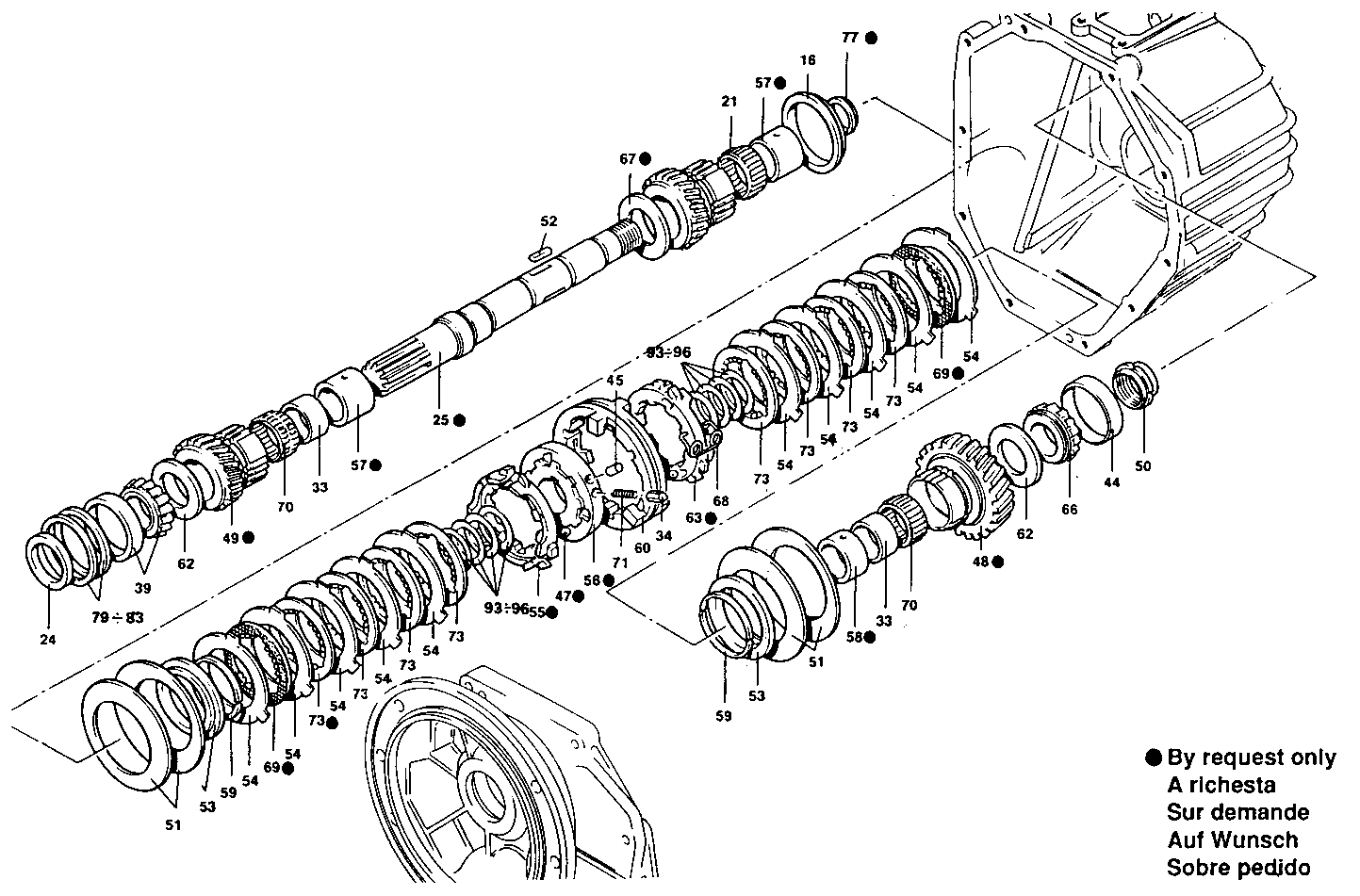

T5134000/02 MARINE GEAR - (components)
| Item |
Part number |
Description |
|
16 |
8090049 |
RING |
|
21 |
8090842 |
KEY |
|
24 |
8090943 |
O-RING |
|
33 |
8090060 |
DRIVE BEARING |
|
34 |
8090061 |
PIN |
|
39 |
8091016 |
DRIVE BEARING |
|
44 |
8091023 |
DRIVE BEARING |
|
45 |
8090087 |
PIN |
|
50 |
8090092 |
NUT |
|
51 |
8090093 |
SPRING |
|
52 |
8090094 |
KEY |
|
53 |
8090095 |
RING |
|
54 |
8090022 |
RING |
|
59 |
8090100 |
RING |
|
60 |
8090101 |
CONNECTOR SLEEVE |
|
62 |
8090103 |
WASHER |
|
66 |
8091026 |
DRIVE BEARING |
|
68 |
8090107 |
SPRING |
|
70 |
8090108 |
DRIVE BEARING |
|
71 |
8090109 |
SPRING |
|
73 |
8090024 |
RING |
|
79 |
8090071 |
SHIM 0,10 MM |
|
80 |
8090072 |
SHIM 0,15 MM |
|
81 |
8090073 |
SHIM 0,20 MM |
|
82 |
8090074 |
SHIM 0,50 MM |
|
83 |
8090075 |
SHIM 1,00 MM |
|
93 |
8090082 |
SHIM 0,4 MM |
|
94 |
8090083 |
SHIM 0,5 MM |
|
95 |
8090084 |
SHIM 0,6 MM |
|
96 |
8090085 |
SHIM 0,7 MM |
