8041M08.21

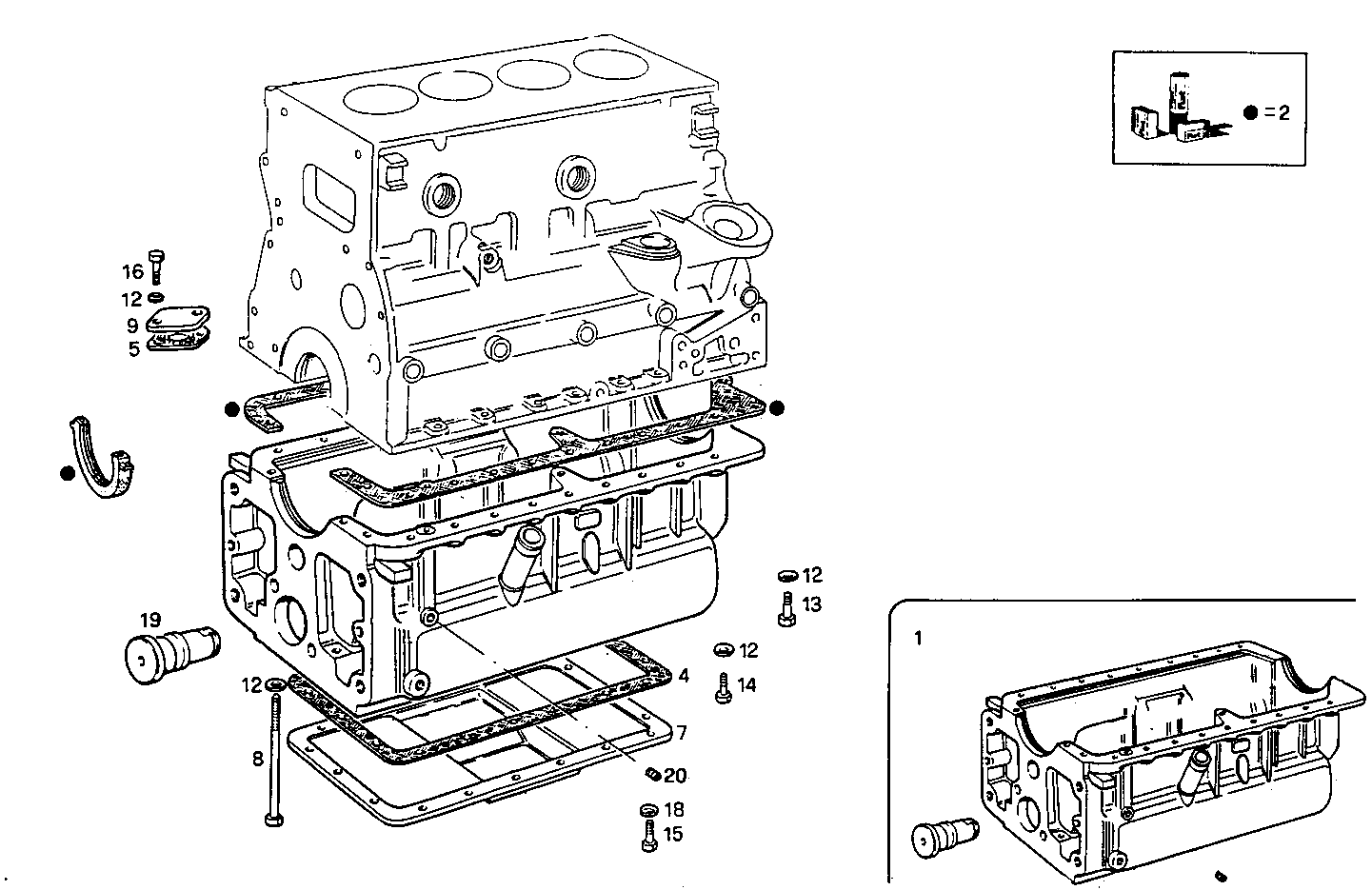

0420.016 OIL SUMP
| Item | Part number | Description |
|---|---|---|
| 1 | 4838535 | OIL SUMP ASSY |
| 2 | 1940012 | KIT-OILSUMP GASKET |
| 4 | 98427452 | FLAT ENGINE GASKET |
| 5 | 98401047 | GASKET |
| 7 | 98427605 | COVER |
| 8 | 4607933 | SCREW M10X1,25X262 MM |
| 9 | 4793218 | COVER |
| 12 | 11198374 | SPRING WASHER Ø10X20 MM |
| 13 | 11306924 | HEXAGON BOLT M10X1,25X30 MM |
| 14 | 11307024 | SCREW M10X1,25X40 MM |
| 15 | 16043324 | HEXAGON BOLT M8X18 MM |
| 16 | 16605520 | SCREW M8X20 |
| 18 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 19 | 4812930 | PIN |
| 20 | 14326050 | LOCK PLUG M10X1,25 |
