8041M08.21

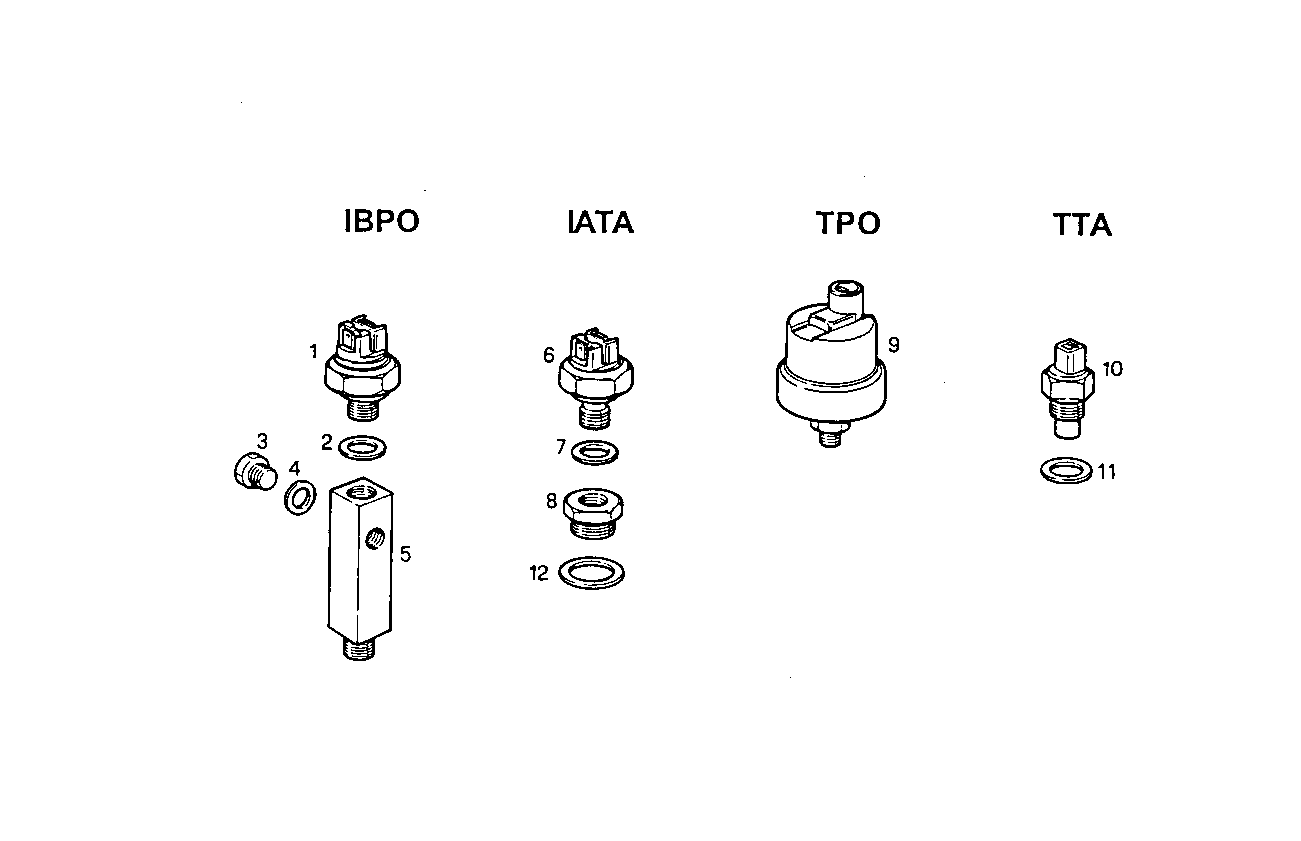

A38550049 SENDER UNITS FOR INSTRUMENTS - 12/24V - VEGLIA

Iveco/FPT SENDER UNITS FOR INSTRUMENTS

Item Part number Description
1 8114030 TRANSMITTER IBPO
2 4858606 GASKET Ø10X14X1 MM
3 16992111 THREADED PLUG M10X1
4 4858607 WASHER Ø12X17 MM SP=1,5 MM
5 4929576 PIPE SOCKET
6 8019334 TRANSMITTER IATA
7 4858608 SEAL GASKET dia.14x19,5x1,5
8 4930370 PIPE SOCKET
9 8008031 TRANSMITTER TPO
10 8008030 TRANSMITTER TTA
11 4858609 WASHER Ø16X22 MM SP=1,5 MM
12 98429281 SEAL GASKET Ø24X31 MM SP=1,5 MM
