8041M08.21

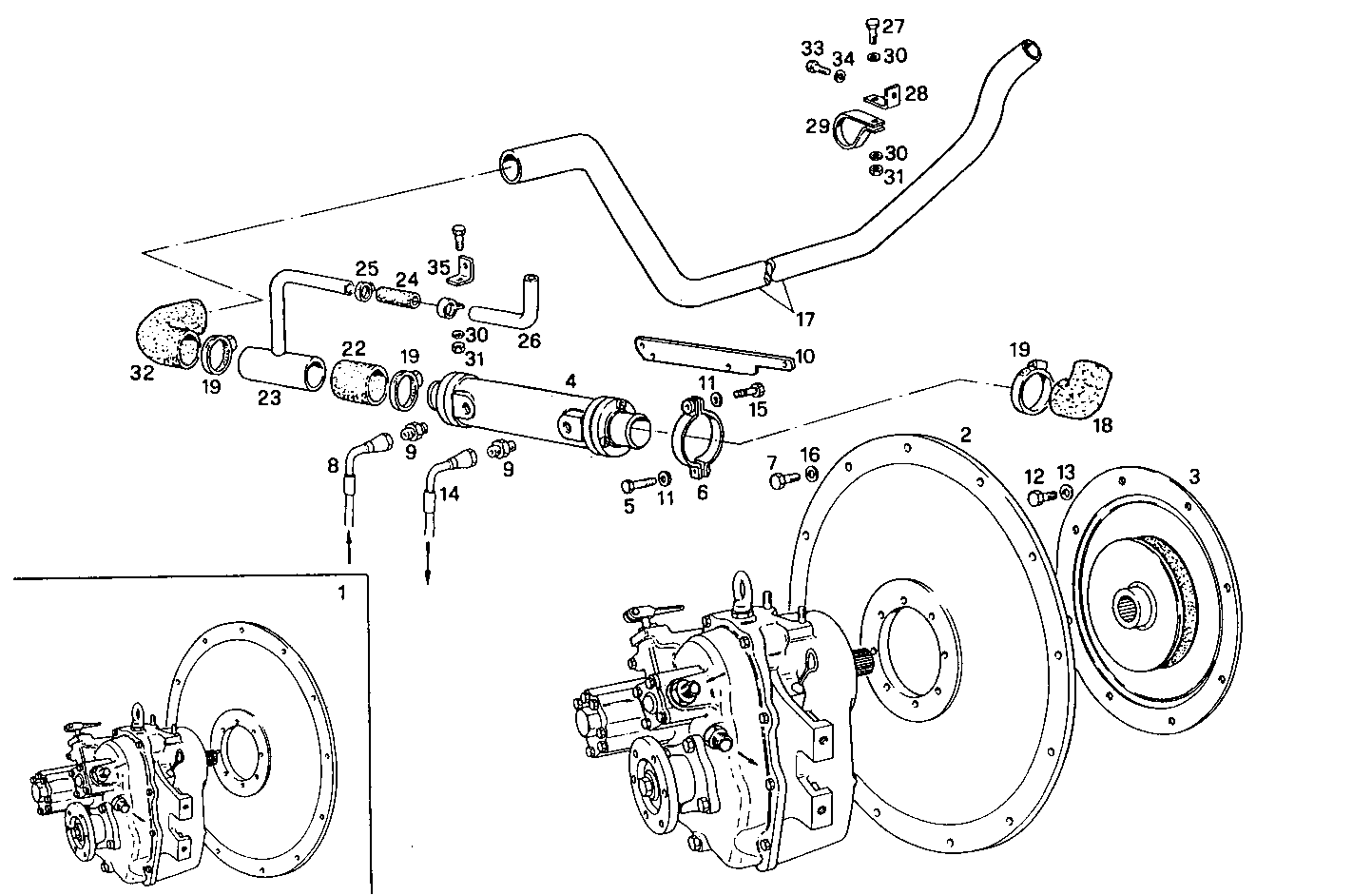

A51650033/01 MARINE GEAR TECHNODRIVE TM 93 - ratio 1.51:1 [D 04-1993] [from04-1993]

Iveco/FPT MARINE GEAR TECHNODRIVE TM 93

Item Part number Description
1 8020611 MARINE GEAR 1,51:1
2 8012407 COUPLING BELL
3 8005350 FLEXPLATE
4 8016304 OIL/WATER HEAT EXCHANGER ASSY
5 16605624 HEXAGON BOLT M8X25 MM (8.8)
6 5116798 CLIP ASSY [from 06-93]
7 11306921 SCREW M10X1,25X30
8 4935779 HOSE
9 4935465 PIPE SOCKET
10 8016558 RETAINER [from 07-93]
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 15970521 HEXAGON BOLT M10X20 MM
13 10571879 WASHER
14 8105620 HOSE
15 16605734 HEXAGON BOLT M8X30 MM
16 17090174 SPRING WASHER Ø10X20 MM
17 8006087 WATER PIPE
18 8016576 RUBBER SLEEVE
19 17764793 CLIP Ø32/50 MM
20 4936277 CLIP [up to 03-97]
21 16605424 SCREW M8X16 MM (8.8)
22 17742887 RUBBER SLEEVE
23 8107188 WATER PIPE
24 17737587 RUBBER SLEEVE
25 17764593 CLIP Ø20/32 MM
26 8107189 WATER PIPE
28 8110499 RETAINER
29 4936741 CLIP
30 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
31 17037931 HEXAGON NUT M8X1,25
32 17742687 RUBBER SLEEVE
33 16608927 SCREW M12X25
34 17091074 WASHER Ø12X24X2,8 MM
35 8109067 RETAINER
