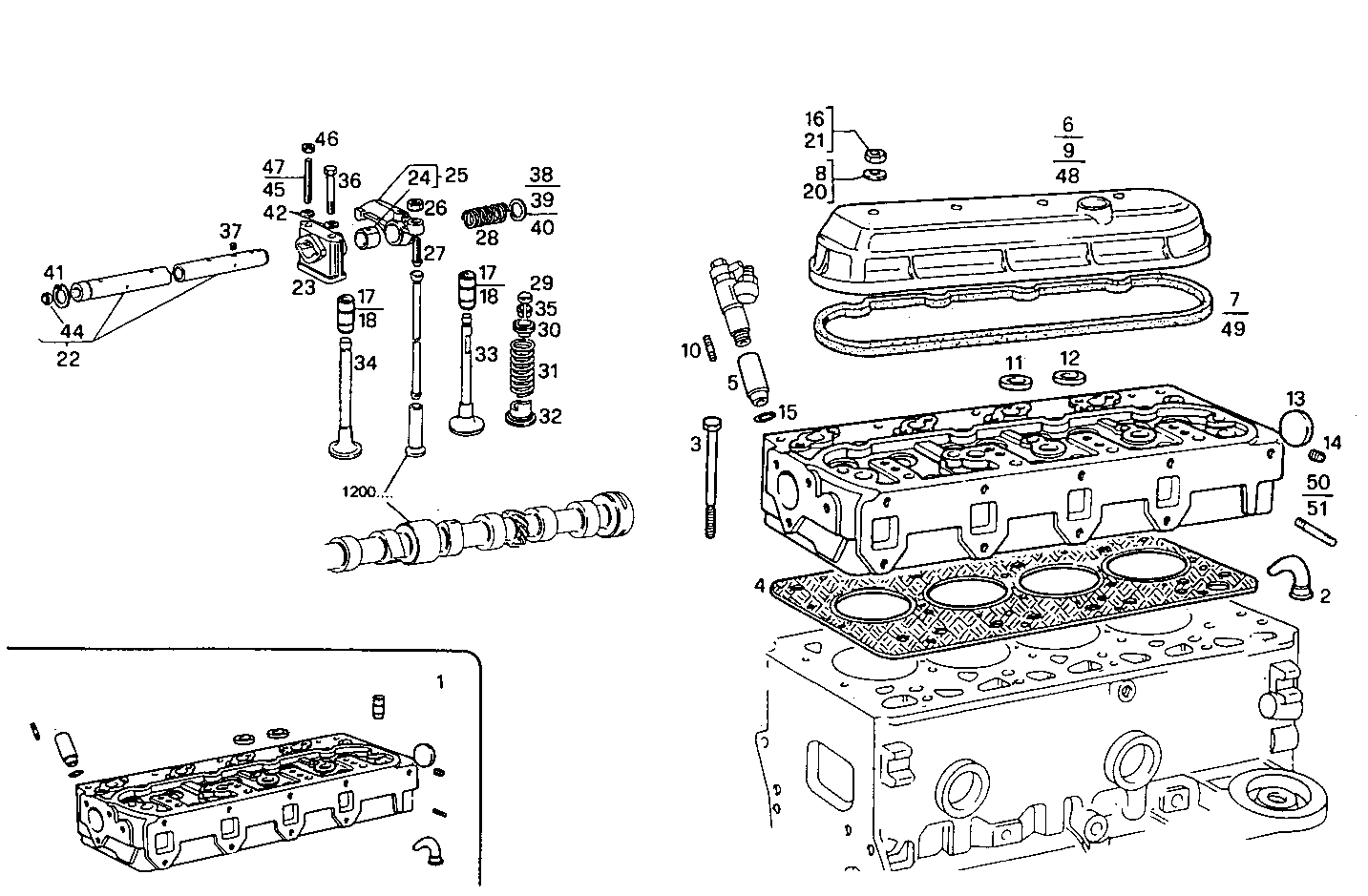

| Item |
Part number |
Description |
|
1 |
99452262 |
CYLINDER HEAD ASSY |
|
2 |
4818862 |
WATER CONVEYOR |
|
3 |
4796457 |
CYL.HEAD STUD |
|
4 |
1907835 |
CYL.HEAD GASKET SP=1,35 MM |
|
5 |
4770859 |
NOZZLE HOLDER SEAT |
|
6 |
4683627 |
CYL. HEAD COVER [up to ...] |
|
7 |
4845136 |
HEAD COVER GASKET L=1162 MM |
|
8 |
98416134 |
WASHER [from 555940] |
|
9 |
98418859 |
CYL. HEAD COVER [up to ...] |
|
10 |
500380521 |
STUD M8X12X45 |
|
11 |
14282470 |
LOCK PLUG Ø28 MM |
|
12 |
14282170 |
LOCK PLUG Ø20 MM |
|
13 |
14282970 |
LOCK PLUG Ø45 MM |
|
14 |
14323911 |
LOCK PLUG M10X1,25 |
|
15 |
14453981 |
O-RING Ø25,12 MM SP=1,78 MM |
|
16 |
98417659 |
NUT [from 555940] |
|
17 |
4802126 |
VALVE GUIDE |
|
18 |
4802127 |
VALVE GUIDE +0,2 |
|
20 |
17094970 |
WASHER |
|
21 |
16104111 |
HEXAGON NUT M8 |
|
22 |
4842403 |
ROCKER SHAFT ASSY |
|
23 |
4601295 |
ROCKER BRACKET |
|
24 |
4682937 |
BUSH |
|
25 |
4848973 |
ROCKER ARM ASSY |
|
26 |
4338920 |
ADJUSTING NUT |
|
27 |
4699783 |
ROCKER ARM SCREW |
|
28 |
4601296 |
ROCKER ARM SPRING |
|
29 |
4838680 |
VALVE CAP |
|
30 |
4780558 |
SPRING CAP TOP |
|
31 |
4812347 |
ENGINE VALV.SPRING |
|
32 |
4817424 |
SPRING CAP BOTTOM |
|
33 |
1908408 |
INLET VALVE |
|
34 |
1908410 |
EXHAUST VALVE |
|
35 |
14196670 |
VALVE CONE Ø7,85 MM |
|
36 |
16606424 |
HEXAGON BOLT M8X65 MM |
|
37 |
4846851 |
SPIGOT SCREW |
|
38 |
4639661 |
SUPPORT RING SP=1 MM |
|
39 |
4570798 |
SUPPORT RING SP=0,7 MM |
|
40 |
4570799 |
SUPPORT RING SP=0,5 MM |
|
41 |
11066676 |
CIRCLIP Ø18 MM |
|
42 |
17094914 |
WASHER 8x16 |
|
44 |
14328301 |
LOCK PLUG Ø12 MM |
|
45 |
98458149 |
STUD [from 608189] |
|
46 |
17037931 |
HEXAGON NUT M8X1,25 |
|
47 |
13516221 |
STUD M8X1,25 |
|
48 |
99452322 |
CYL. HEAD COVER [from ...] |
|
49 |
500301315 |
HEAD COVER GASKET [from ...] |
|
50 |
13517330 |
STUD M8X12X35 |
|
51 |
13518230 |
STUD M8X12X80 |
